Workman MD/MDX Drive TrainPage 5 -- 33

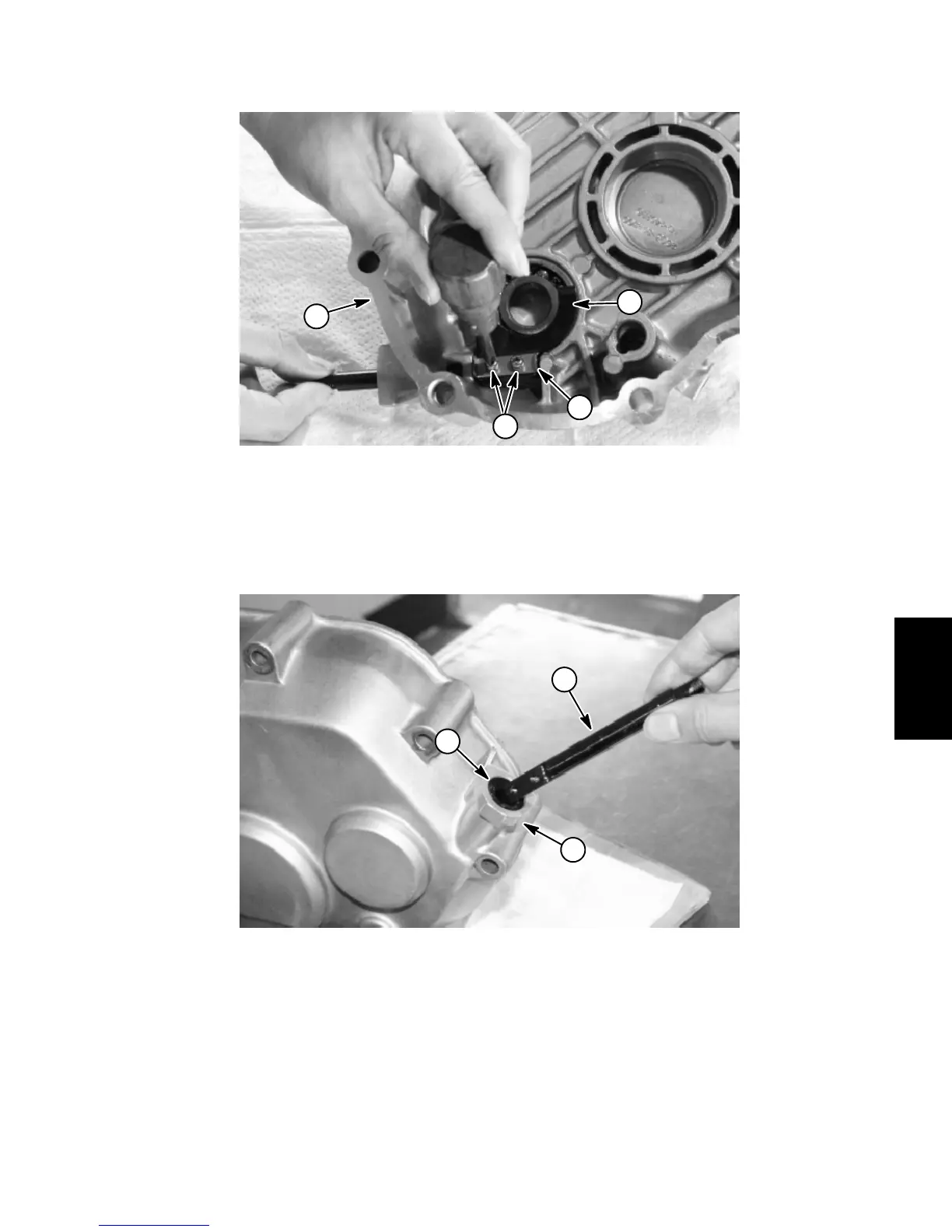

7. On Workman MD, disassemble governor fork and
shaft.
1. Screw (2 used)
2. Stopper
3. Governor fork
4. Case (RH)
Figure 48
2
1
3
4
IMPORTANT: Make sure to not damage the screw
heads when removing screws. Each screw is se-
cured with an adhesive.
A. Remove both screws and washers securing the
stopper and governor fork to the case (RH). Remove
stopper and fork from the case.
1. Governor shaft
2. Boss
3. Oil seal
Figure 49
1
2
3
IMPORTANT: Make sure to not damage the oil seal
when removing the governor shaft from the gover-
nor boss.
B. Carefully pull governor shaft from the boss.
C. Replace oil seal if cracked, nicked or distorted
such that it would not hold a proper seal.
