Workman MD/MDX
Drive Train
Page 5 -- 34
1. Ball bearing
2. Case (RH)
3. Governor shaft
4. Governor fork
5. Stopper
6. Screw (2 used)

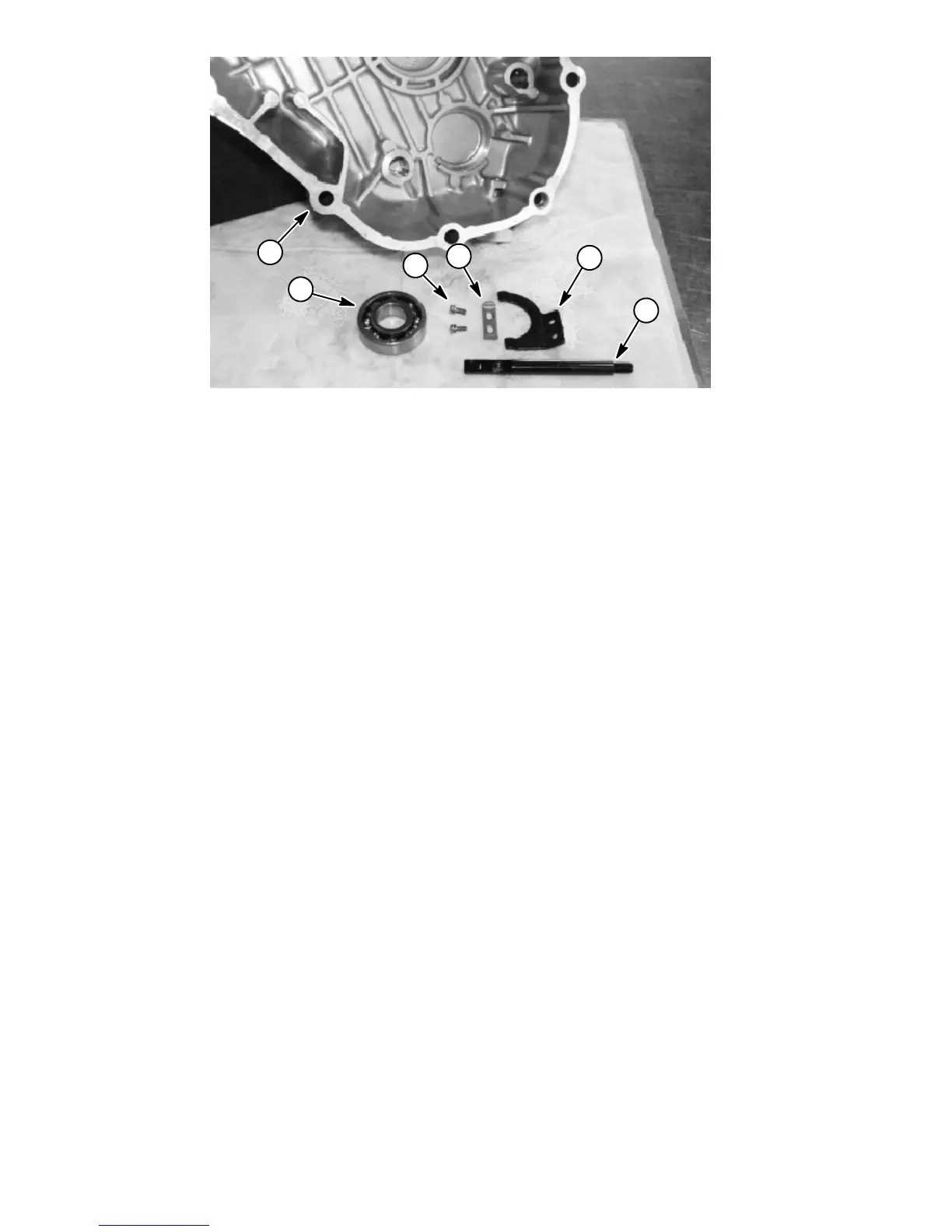

Figure 50
1
2
3
4
5
6
D. Remove ball bearing from the case. Ball bearing
roller balls must be free of deformation and scoring.
Ball bearing must spin freely and have minimum ax-
ial play. Replace ball bearing as necessary.
E. Replace governor shaft if cracked, bent or exces-
sively worn.
F. Replace governor fork or stopper if bent or de-
formed.
