Step
2
Installing the Roll Over
Protection System (ROPS)
Parts needed for this step:
Qty. Part
1 Roll bar, right section
1 Roll bar, left section
1 Roll bar, center section
8 Bolt, 3/8 x 1 inch
8 Curved washer
8 Flange nut, 3/8 inch
2 Bolt, 1/2 x 3-1/4 inches
2 Flange nut, 1/2 inch
2 Lanyard
Procedure
1. Loosely install the right and left roll bar sections
to the frame, using 8 bolts (3/8 x 1 inch), 8 curved
washers, and 8 flange nuts (3/8 inch).

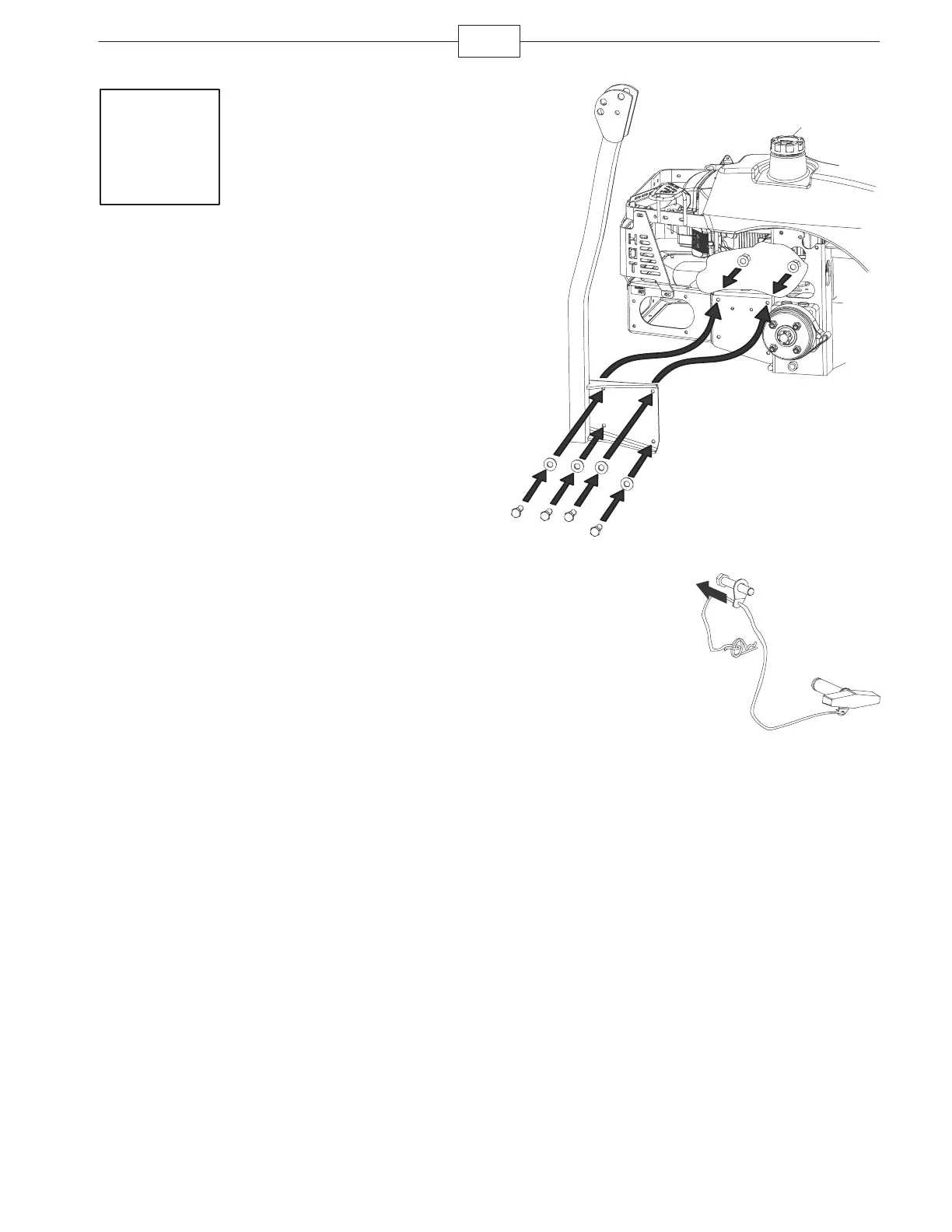

m–6916
2. Install the lanyard
clips onto the 2 bolts
(1/2 x 3-1/4 inches).
Note: Make sure the
bent tab points toward
the head of the bolt.
m–6892
To Next Page
