4

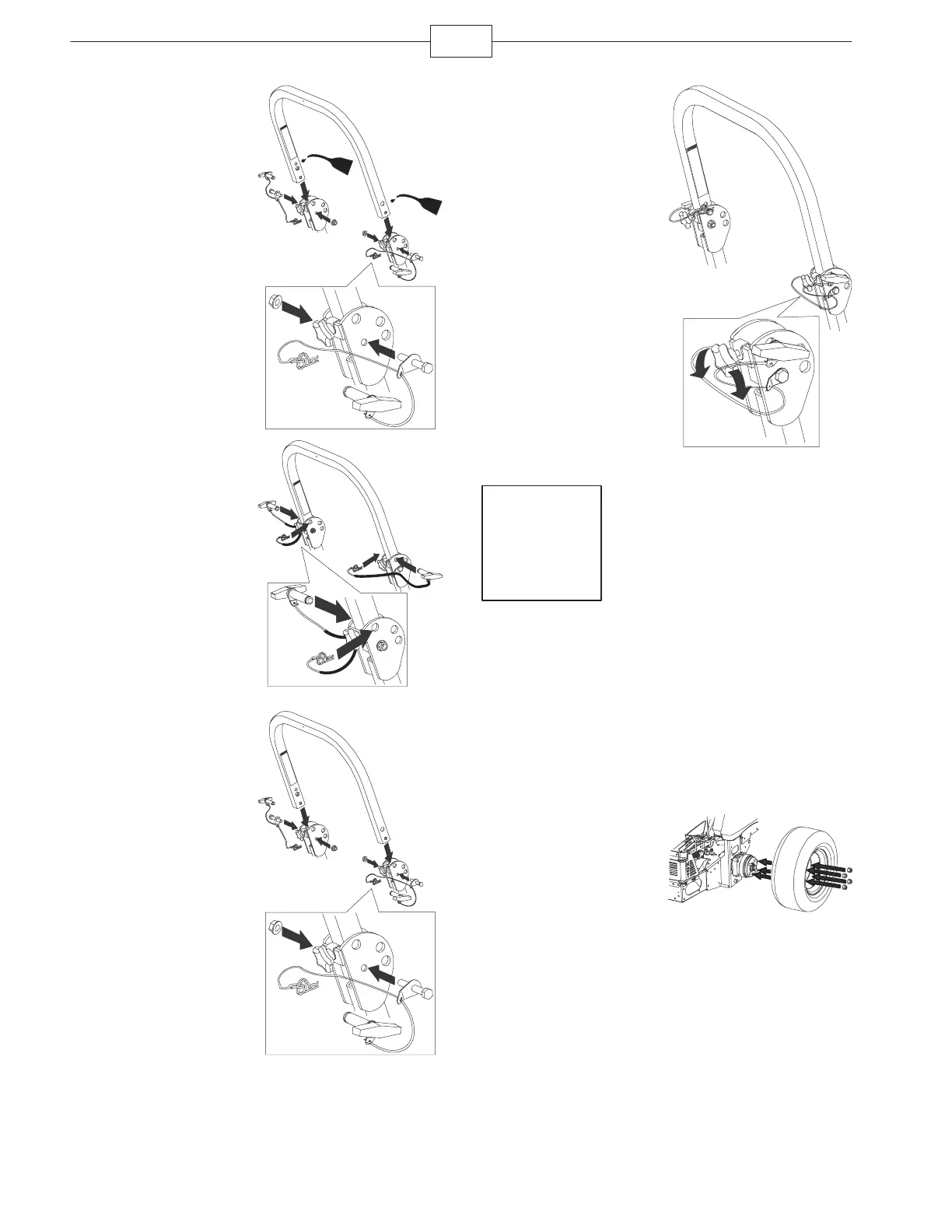

3. Lightly oil the ends
of the center roll bar
section.
4. Loosely install the
center roll bar section,
using 2 bolts
(1/2 x 3-1/4 inches) and
2 flange nuts (1/2 inch).
Note: Make sure the
bolts are installed on the
outside of the roll bar.
Note: Make sure the
lanyard tab is install as
shown and points
forward.
m–6891
5. Raise the roll bar
into the upright position
and secure it with the
pins and hairpin cotter
pins fastened to the
lanyards.
6. Torque all lower
fasteners, attached to
the machine frame, to
30 ft–lb.
m–6893
7. Tighten the center
roll bar bolts
(1/2 x 3-1/4 inches) so
the roll bar rotates freely
with some resistance.
Note: No more than one
thread should be
exposed outside the nut.
m–6891
8. Tighten the front
handles against the
center roll bar ends.
m–683
Step
3
Installing the Drive Wheels
Parts needed for this step:
Qty. Part
2 Rear wheels
Procedure
1. Mount the wheels
with the valve stem to
the outside and secure
them with the nuts
previously removed in
Step 1.
2. Torque the nuts to
95 ft-lb (128 N⋅m).
m–6917
