6
Step
6
Installing the Motion
Control Levers
Parts needed for this step:
Qty. Part
1 Control lever–right
1 Control lever–left
4 Bolt, 3/8 x 1 inch (2 assembled)
4 Curved washer, 3/8 inch (2 assembled)
Procedure
1. Rotate the handles
to the upright position.
2. Loosely install the
levers on the outside of
the posts, using 4 bolts
and curved washers.
Note: Install the levers
in the top and middle
holes for the high
position or the middle
and bottom holes for the
low position, as desired.

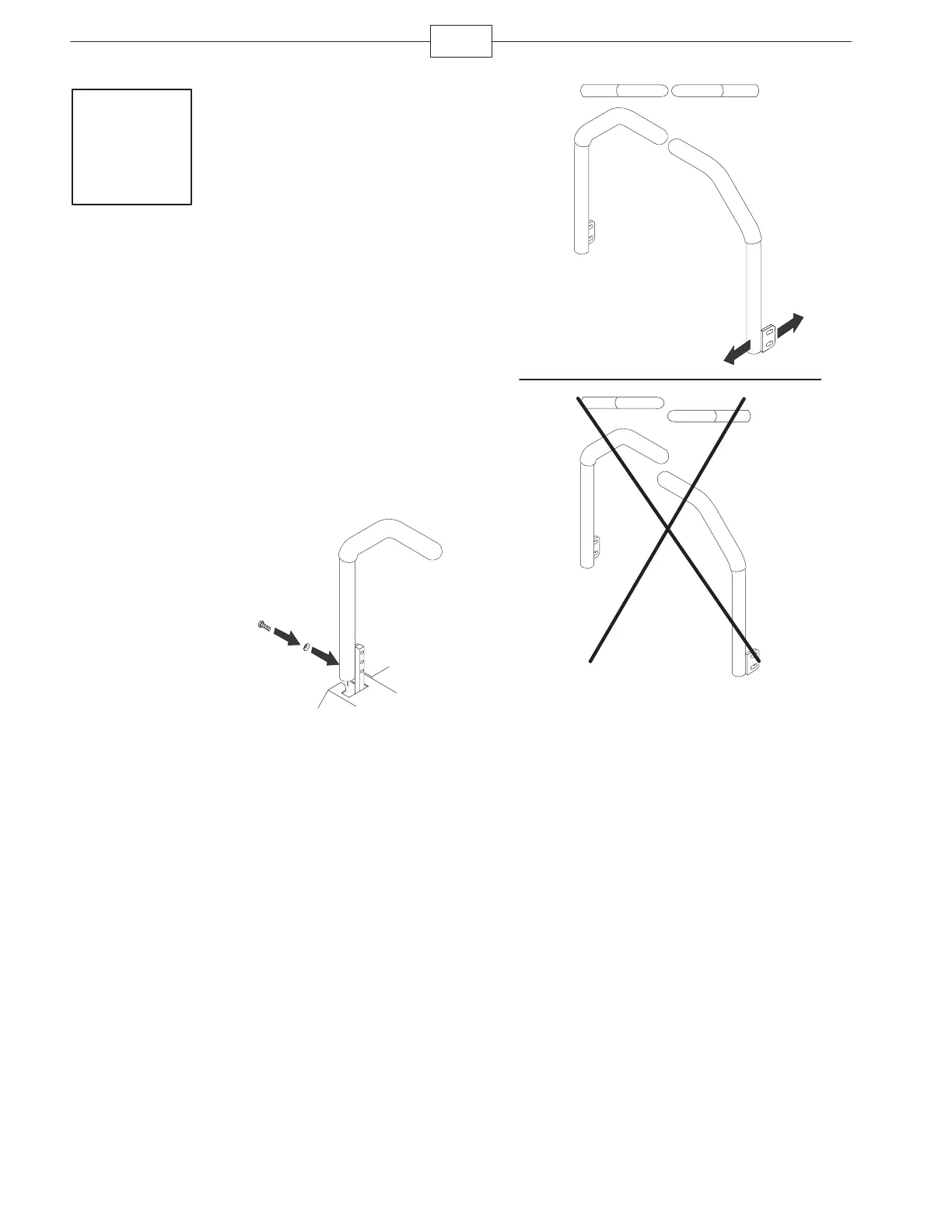

m–6866
3. In the neutral position, raise the levers, bringing
them together, and slide them until they are aligned,
then tighten the bolts.
m–6867
m–6868
To Next Page
