Connecting an HDMI
®
or DVI Device to the HDMI Input
The HDMI input on your TV receives digital audio and
uncompressed digital video from an HDMI source
device or uncompressed digital video from a DVI
(Digital Visual Interface) source device such as a
set-top box or DVD player with HDMI or DVI output.
NOTE: Supported Audio format: Linear PCM,
sampling rate 32/44.1/48kHz.
To Connect an HDMI Device
Connect an HDMI cable (type A connector) to
the HDMI terminal. For proper operation, it is
recommended that you use an HDMI cable with the
HDMI Logo ( ).
• If your HDMI connection is capable of 1080p and/or
your TV is capable of refresh rates greater
than 50Hz, you will need a Category 2 cable.
Conventional HDMI/DVI cable may not work properly
with this mode.
• HDMI cable transfers both video and audio. Separate
analogue audio cables are not required (see

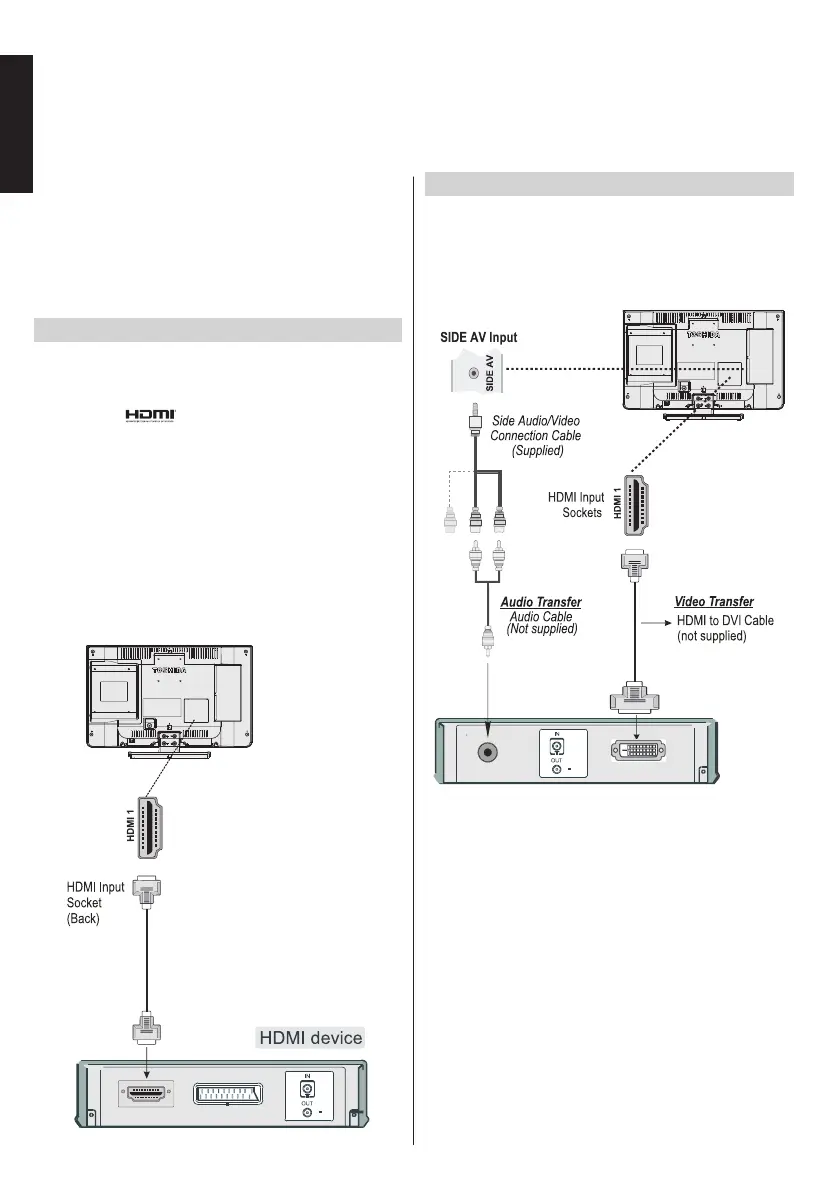

illustration).
• To view the HDMI device video press SOURCE
button to select the appropriate HDMI input.
To Connect a DVI Device
Connect an HDMI-to-DVI cable (HDMI type A
connector) to the HDMI input socket and the seperate
audio cables.
• The maximum recommended HDMI-to-DVI cable
length is 6.6 ft (2m).
NOTE:To ensure that the HDMI or DVI device is reset
properly, it is recommended that you follow these
procedures:
• When turning on your electronic components, turn
on the TV rst, and then the HDMI or DVI device.
* Number of
these inputs
may change
according to
the model of
your TV.
