Air Conditioning Control System (Touch Screen Controller) Installation Manual

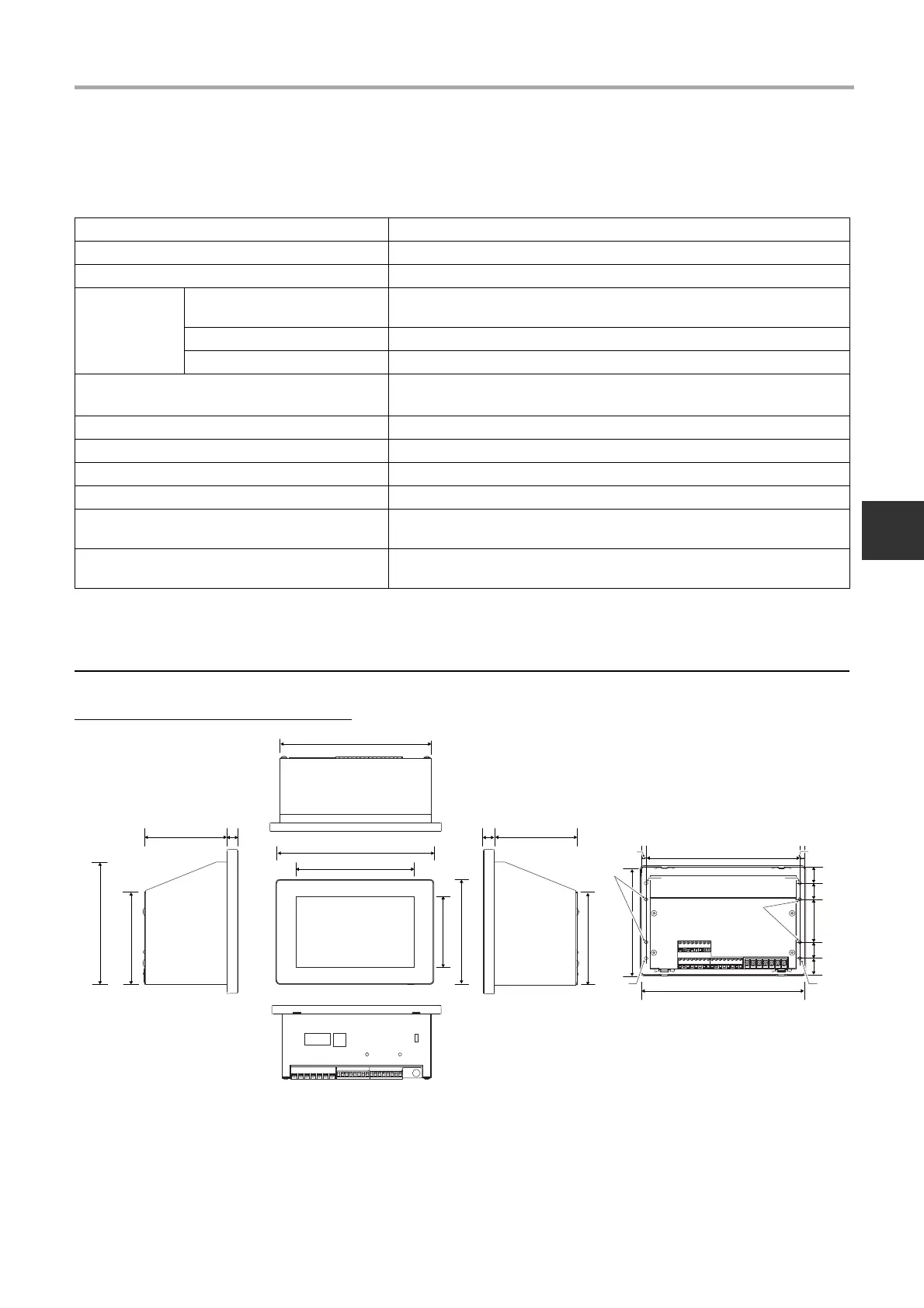

2 Specifications
* Power cord for 220-240 V power adapter is to be arranged on site.
Outline drawing
Air Conditioning Control System
Product name Touch Screen Controller
Model Name BMS-CT1280E / BMS-CT1280E-TR
Power supply 220-240 V AC* 50/60 Hz
Number of
connected units
Indoor unit
Up to 128 units
(TCC-LINK 1 maximum 64 units, TCC-LINK 2 maximum 64 units)
Power meter interface Up to 4 units
Digital I/O interface Up to 4 units
Communication ports
• RS-485 port ×1
• LAN port ×1
USB port USB memory stick connection port ×2
External contact input 8 inputs
External contact output 4 outputs
Operating temperature/humidity range 0°C to 40°C, 10% to 90% RH (no condensation)
Dimensions
H136×W205×D10 (+80)
(Embedded dimensions shown in parenthesis)
Mass
1.34 kg (Touch Screen Controller)
0.45 kg (power adapter)
80 10 80
205
152
181
202
20
20
20
20
53
10
5.8 5.8
ø 4.5
ø 4.5
ø 4.5
ø 4.5
90
133
91
136
190.4
90
115
