Toshiba BMS-TP0641ACE User Manual

13-EN
ENGLISH
3

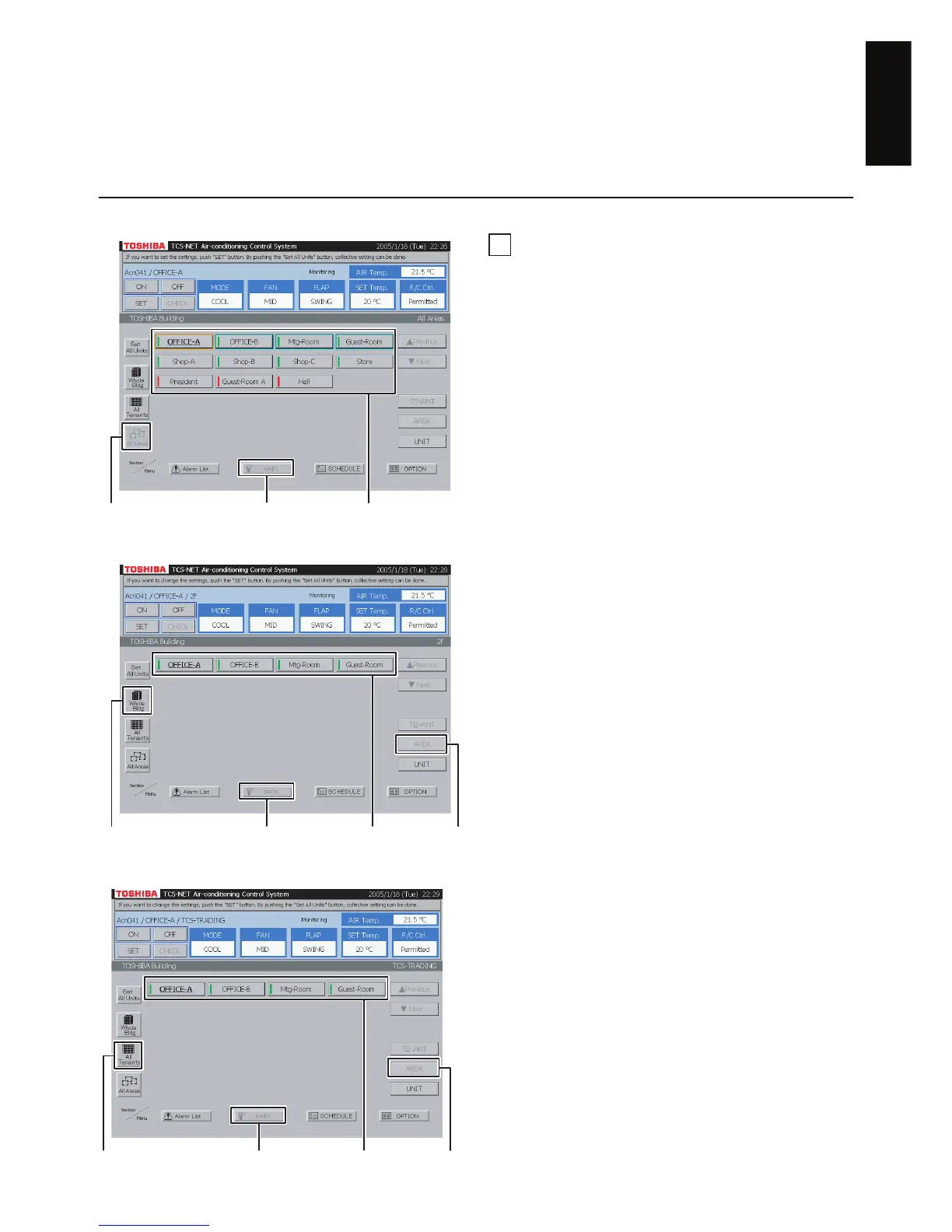

Monitoring screen by area
<Choose an area from all areas>
A Select [MAIN].
B Select [All Areas].
C Choose an area whose air-conditioning state
you want to check.
Fig. 3-2 Areas by Block
<Choose an area from block>
A Select [MAIN].
B Select [Whole Bldg].
Choose a block to which areas belong.
C Select [AREA].
D Choose an area whose air-conditioning state
you want to check.
Fig. 3-3 Areas by Tenant
<Choose an area from tenant>
A Select [MAIN].
B Select [All Tenants].
Choose a tenant to which areas belong.
C Select [AREA].
D Choose an area whose air-conditioning state
you want to check.
Fig. 3-1 List of All Areas
C
B A
B A D
C
B A D
C
