Toshiba BMS-TP0641ACE User Manual

15-EN
ENGLISH

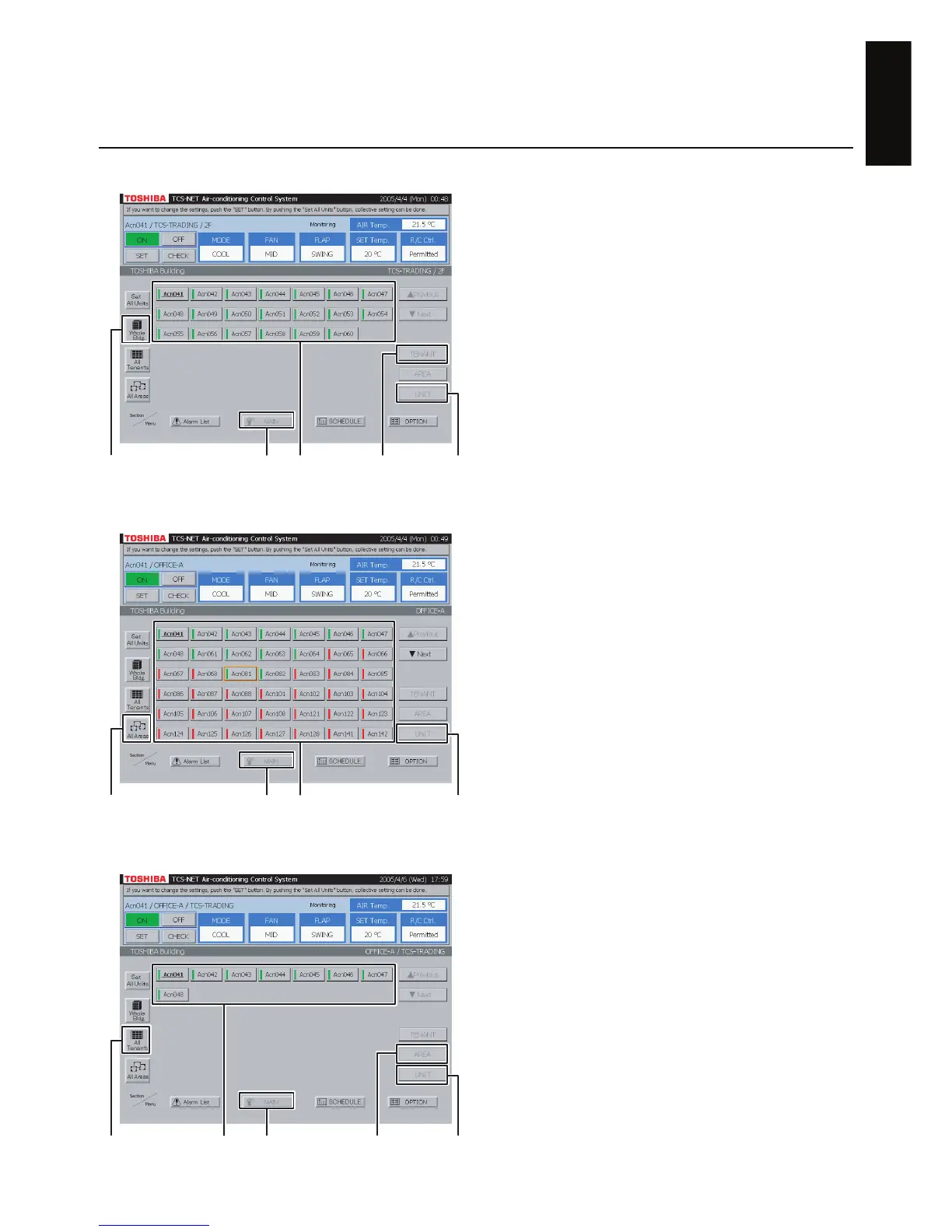

<Choose an air conditioner from tenant by
block>
A Select [MAIN].
B Select [Whole Bldg].
Choose a block to which tenants belong.
C Select [TENANT].
Choose a tenant.
D Select [UNIT].
E Choose an air conditioner whose state you want
to check.
Fig. 4-3 Units by Block/Tenant
<Choose an air conditioner from area>
A Select [MAIN].
B Select [All Areas].
Choose an area.
C Select [UNIT].
D Choose an air conditioner whose state you want
to check.
Fig. 4-4 Units by All Areas
<Choose an air conditioner from area by
tenant>
A Select [MAIN].
B Select [All Tenants].
Choose a tenant to which areas belong.
C Select [AREA].
Choose an area.
D Select [UNIT].
E Choose an air conditioner whose state you want
to check.
Fig. 4-5 Units by All Tenants/Area
B E C DA
B DA C
B E CA D
