Toshiba BMS-TP0641ACE User Manual

37-EN
ENGLISH
22

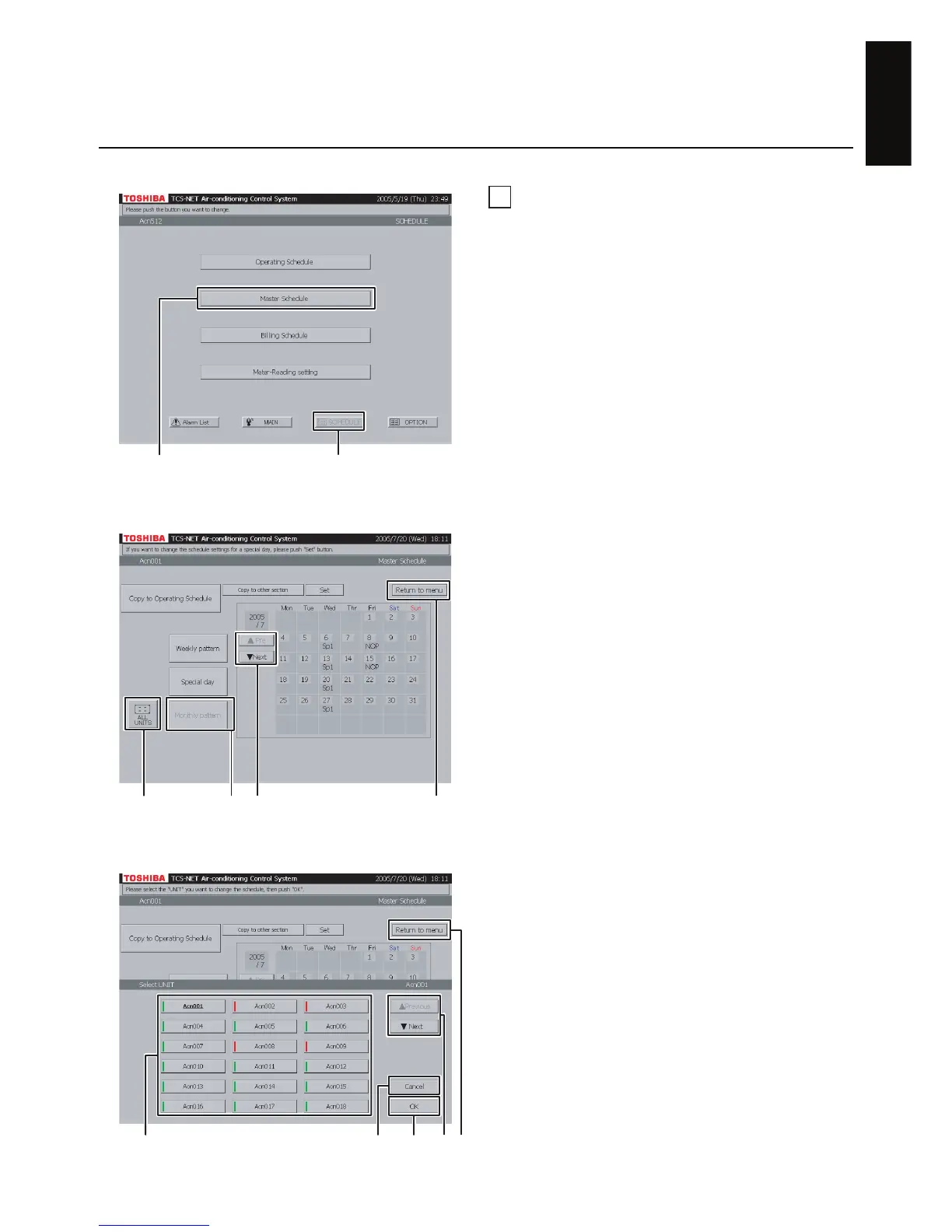

Checking monthly pattern
A Push [SCHEDULE].
The Schedule screen (Fig. 22-1) appears.
B Push [Master Schedule].
The screen (Fig. 22-2) appears.
C Push [Monthly pattern]. A calendar of the current
month appears for monthly pattern check.
D Use the [▲ Pre] and [▼ Next] buttons to display
other months (12 months including the current
month).
E To check schedules of other air conditioners,
push [ALL UNITS].
The screen (Fig. 22-3) appears.
F Choose an air conditioner whose schedule you
want to check.
G When the unit list ranges over two or more
pages, use the [▲ Previous] and [▼ Next]
buttons.
If you cancel the selection, push [Cancel].
H Push [OK]. The monthly pattern of the selected
air conditioner is displayed.
I Push [Return to menu] to return to the Schedule
screen (Fig. 22-1).
Fig. 22-1 Schedule Screen
Fig. 22-2 Checking Monthly Pattern
Fig. 22-3 Selection from All Units
AB
CED I
G
When not selecting (G)
I
HF
