HOW TO OPERATE (continued)
Checking/Setting Master Schedule (continued)
23
Setting weekly pattern
A Push [Weekly pattern].
B Push the button of a day of the week you want
to set.
The Weekly Pattern Setting screen (Fig. 23-2)
appears.
<Addition>
C Push [Addition].
The Master Schedule Detail Setting screen
(Fig. 23-3) appears.
D Set time for operation ON or OFF with the
▲ and ▼ buttons.
E Push [ON] to run or [OFF] to stop.
To undo the setting to the previous state, push
[Undo].
F Confirm the setting, and then push [OK] on the
Detail Setting screen.
If you do not add the weekly pattern, push
[Cancel] on the Detail Setting screen.
<Change>
G Push a number (1 to 20) whose weekly pattern
you want to change.
The schedule list ranges on two pages.
H Switch the list using the [Previous ▲] and
[Next ▼] buttons.
The Detail Setting screen (Fig. 23-3) appears.
I To change ON or OFF time, use the ▲ and
▼ buttons.
J Push [ON] or [OFF] to change ON/OFF mode.
To undo the changed setting to the previous
state, push [Undo].
K Confirm the setting, and then push [OK] on the
Detail Setting screen.
If you do not change the weekly pattern, push
[Cancel] on the Detail Setting screen.

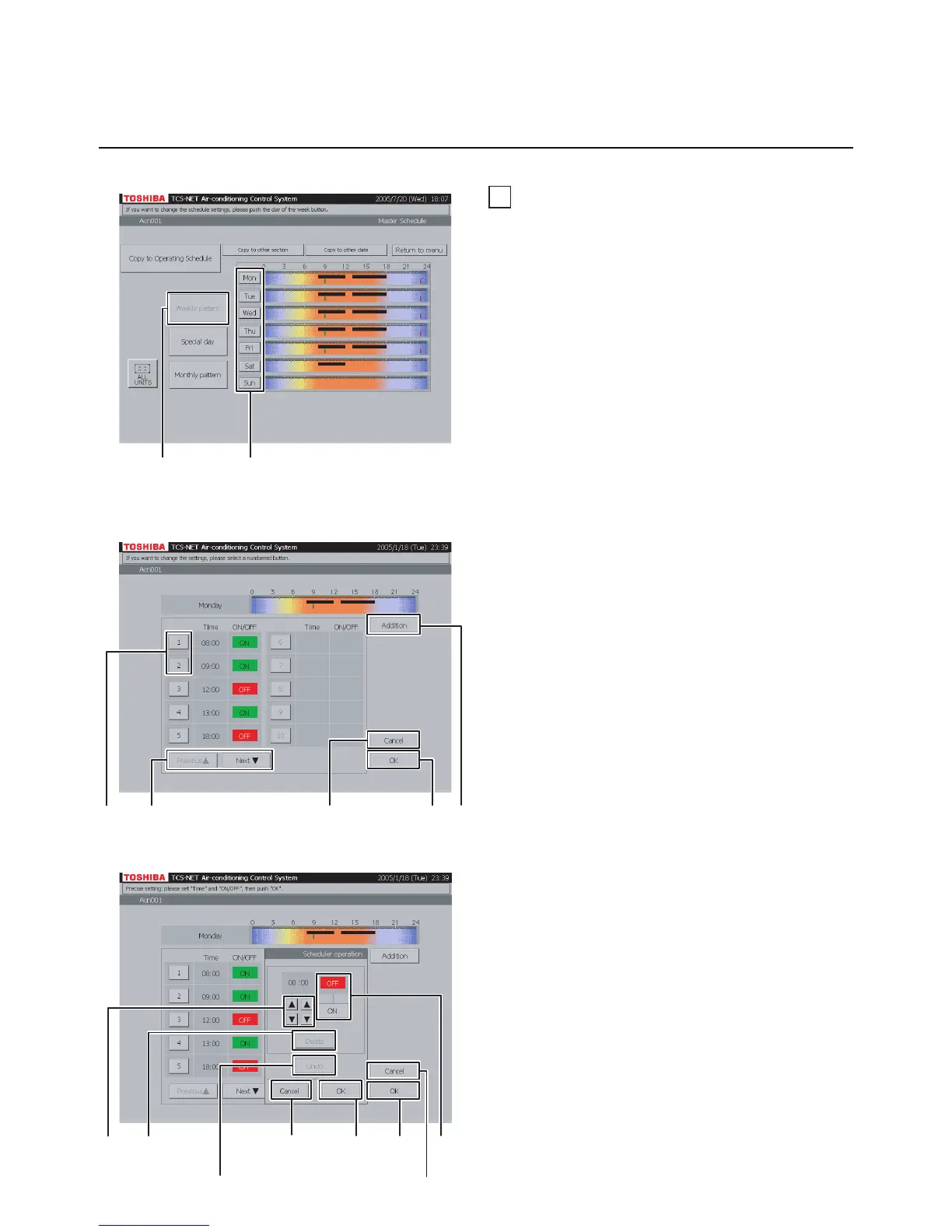

Fig. 23-1 Weekly Pattern Check Screen
Fig. 23-2 Weekly Pattern Setting Screen
Fig. 23-3 Master Schedule Detail Setting Screen
AB
HM
P
C
GL
When not setting (P)
NKFO EJDI
When not
setting (F, O)
When not setting (K)To undo (E, J)
