140
No.
j
Part name
Cross flow
fan
Procedures

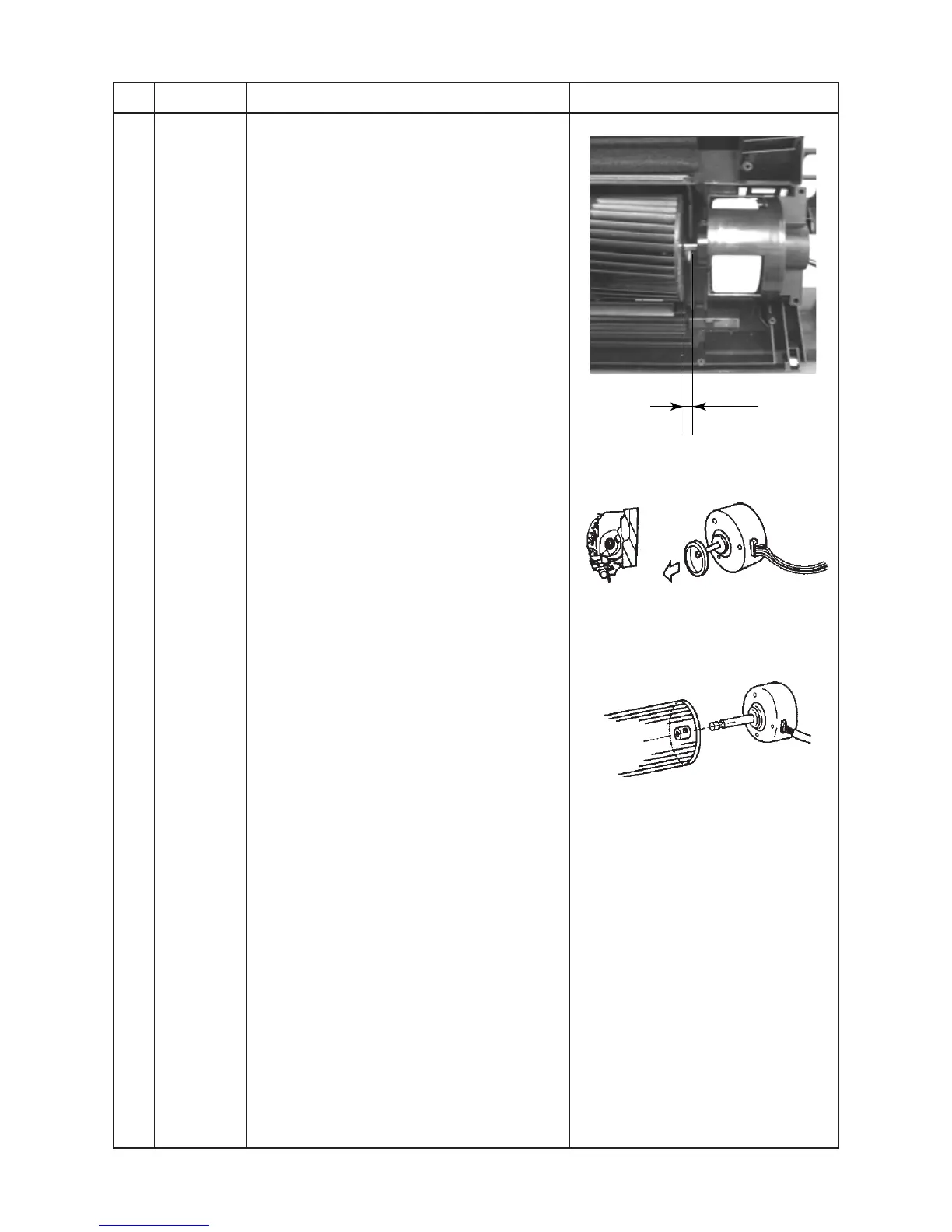

<Caution at reassembling>
1) To incorporate the fan motor, remove the
fan motor rubber (at shaft core side),
incorporate the motor into the position in
the following figure, and then install the fan
motor.
Remarks
• Install the cross flow fan so that the right
end of the 1st joint from the right of the
cross flow fan is set keeping 5 mm from
wall of rear plate of the main unit.
• Holding the set screw, install the cross
flow fan so that U-groove of the fan motor
comes to the mounting hole of the set
screw.
• Perform positioning of the fan motor as
follows:
• When assembling the fan motor, the fan
motor must be installed in such a way that
the fan motor leads will be taken out is
positioned at the bottom front.
• After assembling the 2 fixing screws of the
motor band (right) into the main body,
position the fan motor, insert it, and then
secure the motor band (right) using the
2 fixing screws.
0.2"(5.0mm)
To Next Page
