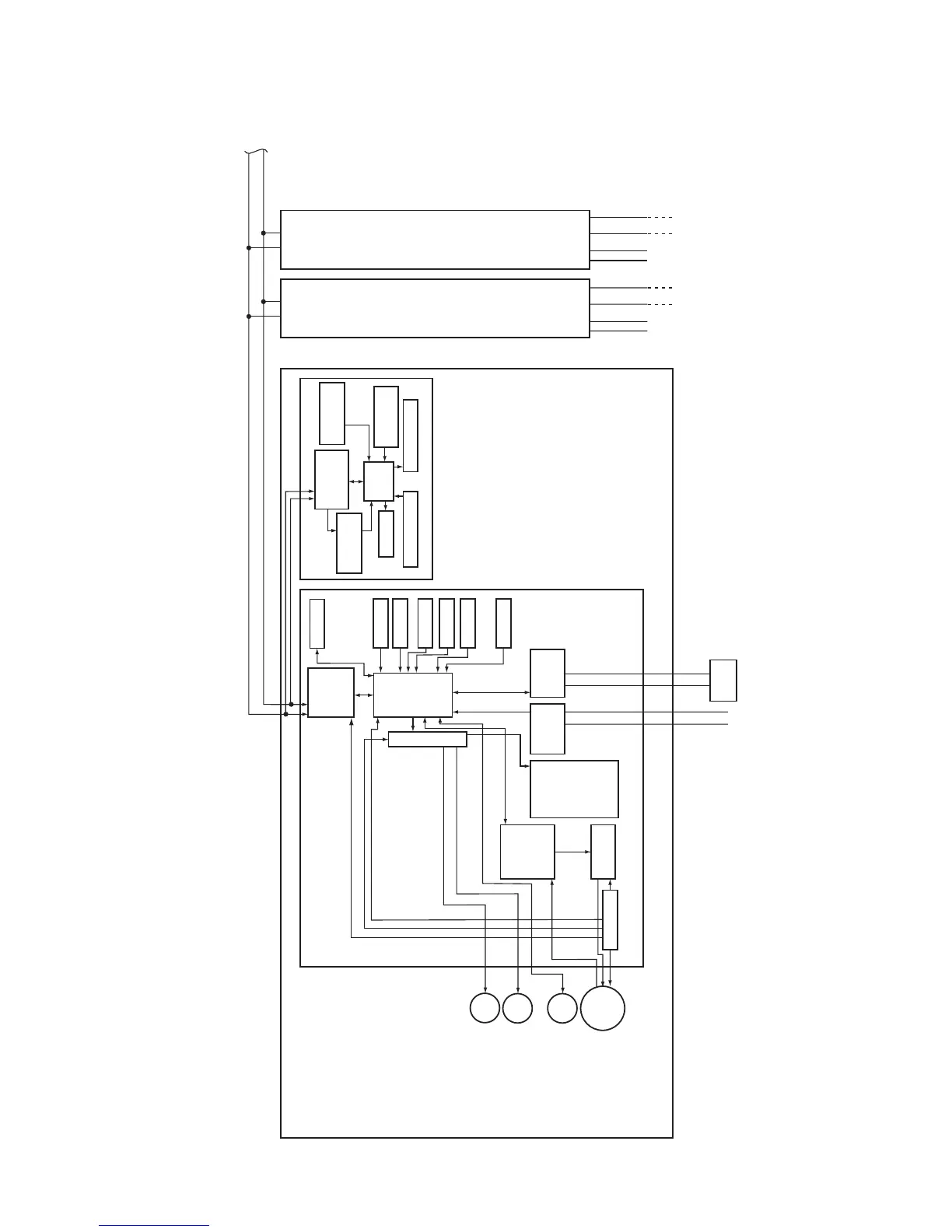

7-1-2. When Wireless Remote Controller Kit Connected
4-Way Cassette Type
MCU
DC5V
MCU
EEPROM
MCU
DC
280V
DC5V
DC12V
DC20V
AB AB
AB
U1
U1 U2
U2
L1
L1
L2
L2
L1
L2
HA
U1 U2 U1 U2
Indoor unit
#1
Power supply circuit
Indoor control P.C. board (MCC-1570)
PMV
Louver
motor
Drain
pump
Indoor
fan
motor
×4
Fan motor
control circuit
Driver
Remote
controller
communication
circuit
TA sensor
TCI sensor
TC2 sensor
TCJ sensor
Float input
In operation
Alarm
Getting ready
Thermostat ON
COOL
HEAT
FAN
AC
synchronization
signal input circuit
BUS
communication
circuit
External
output
Indoor/outdoor communication
Outdoor
unit
Power source
208/230-1-60
Outdoor
unit
Outdoor
unit
Power
source
Power
source
Sameas left Sameas left
#2 #3
Up to 8 units can be
connected.
Emergency
operation SW
Wireless remote controller kit
Sensor P.C. board
Power
supply circuit
Remote controller
communication
circuit
Buzzer
Sensor circuit
Display LED
Function
setting SW
