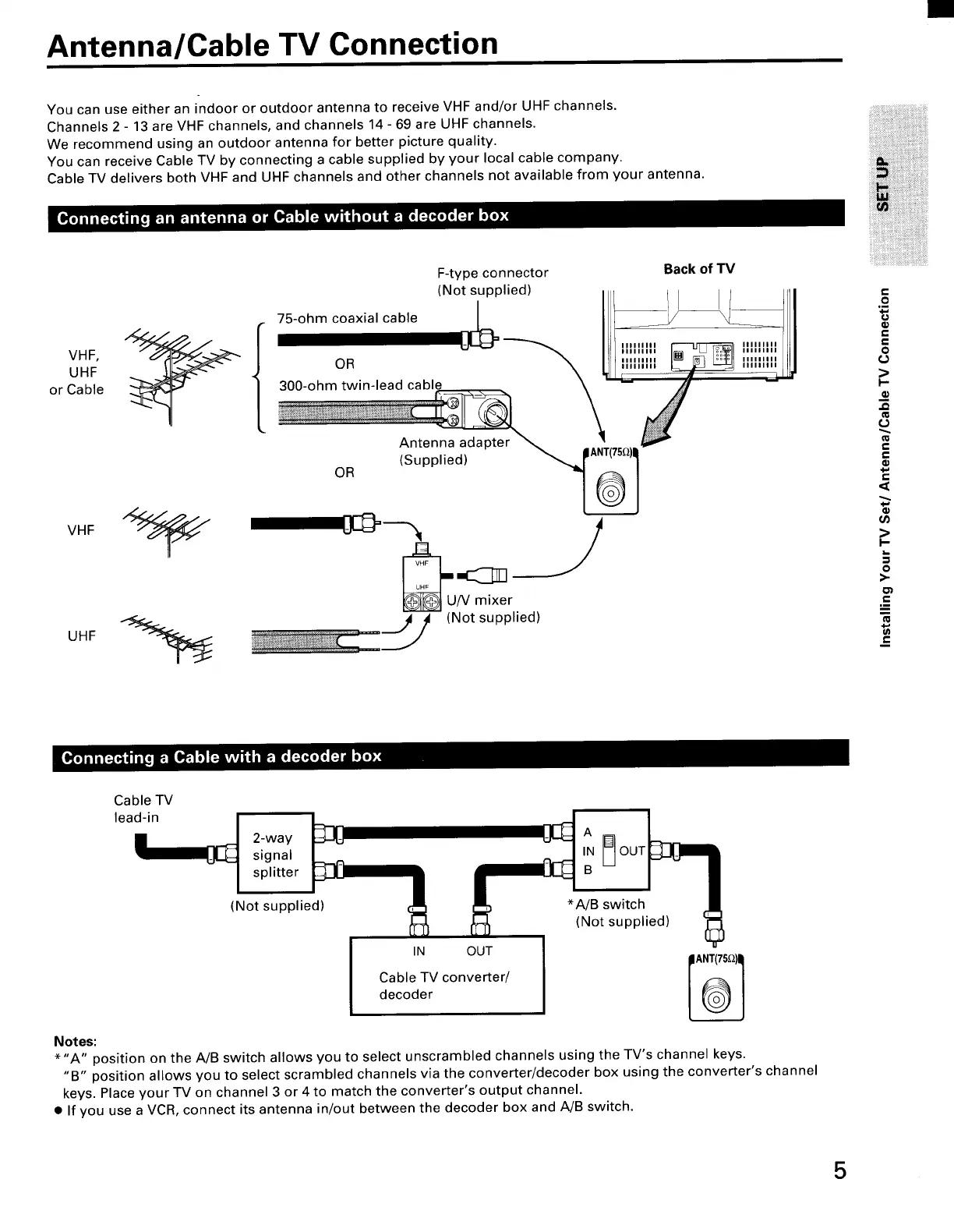

Antenna/Cable TV Connection
You can use either an indoor or outdoor antenna to receive VHF and/or UHF channels.
Channels 2- 13 are VHF channels, and channels 14- 69 are UHF channels.
We recommend using an outdoor antenna for better picture quality.
You can receive Cable TV by connecting a cable supplied by your local cable company.
Cable TV delivers both VHF and UHF channels and other channels not available from your antenna.
F-type connector Back of TV
(Not supplied)
/
75-ohm coaxial cable |
VHF, '"'"'"
IIIIIIIII IIIIIIIII
IIIIIIIII
IIIIIIIII
UHF OR
or Cable 300-ohm twin-lead cabk
Antenna adapter
(Supplied)
VHF
OR
_U/V mixU_er J
(Not supplied)
c-
o
q)
t-
€
o
>
.o
0=
0=
e-
l--
o
.i
N
€-
i
Cable TV
lead-in
2-way A
signal IN
splitter B
(Not supplied)
I IN OUT
Cable TV converter/
decoder
*A/B switch
(Not supplied)
Notes:
*"A" position on the A/B switch allows you to select unscrambled channels using the TV's channel keys.
"B" position allows you to select scrambled channels via the converter/decoder box using the converter's channel
keys. Place your TV on channel 3 or 4 to match the converter's output channel.
• If you use a VCR, connect its antenna in/out between the decoder box and A/B switch.
