e-STUDIO162/162D/151/151D FIRMWARE DOWNLOAD PROCEDURES 15 - 5

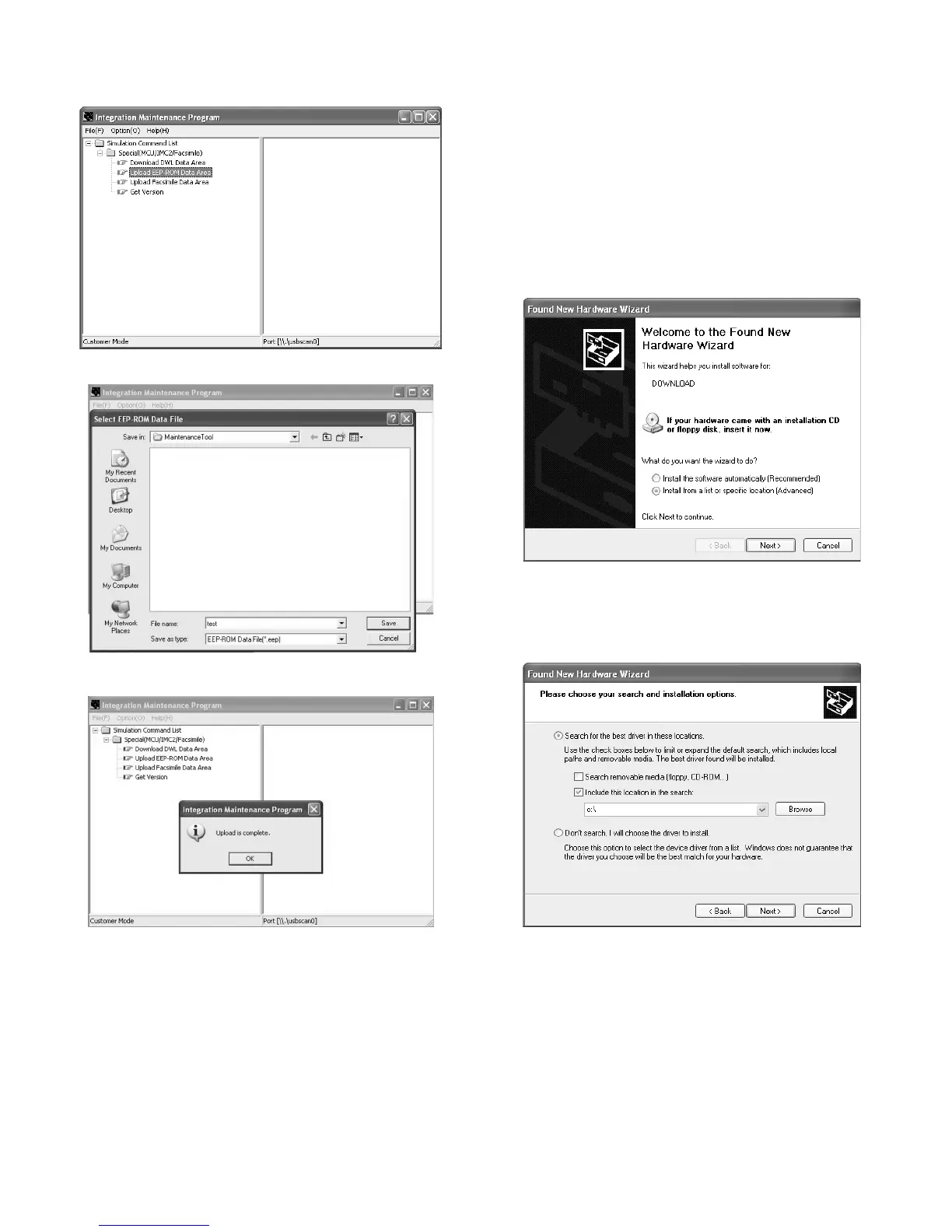

7) PC side: Double-click "Special (MCU/IMC2/Facsimile)" to develop
its sub trees, and select "Upload EEPROM Data Area" in the sub
trees.
8) PC side: Enter a desired file name, and select "Save."
9) PC side: When upload is completed, the complete message is dis-
played.
With the above procedure, the EEPROM data acquisition is completed.
Data acquired by the EEPROM data acquisition procedure are saved
in a file with extension of .eep.
5. Installing procedures
<USB integration maintenance program installation>
Driver installation is made on plug-and-play.
<Installation on Windows XP>
1) Main unit side: Execute Test command No. 49-01 (Flash ROM pro-
gram write mode).
Check that "DOWNLOAD MODE" is displayed on the LCD of the
operation panel. (Press and hold [CA] key and [DOWN] key (left
key) together, and turn on the power simultaneously.)
2) Connect the machine and the PC with a USB cable.
3) The following display is shown.
Select [Install from a list or specific location] and press <Next> but-
ton.
4) Select [Include this location in the search;]. If the search location is
not the folder which includes the maintenance tool driver
(Mainte.inf), select <Browse>. If the search location is the folder
which includes the maintenance tool driver, press <Next> button to
go to procedure 7).
