4.EDITING FUNCTIONS
Image Editing 131
4 EDITING FUNCTIONS
3

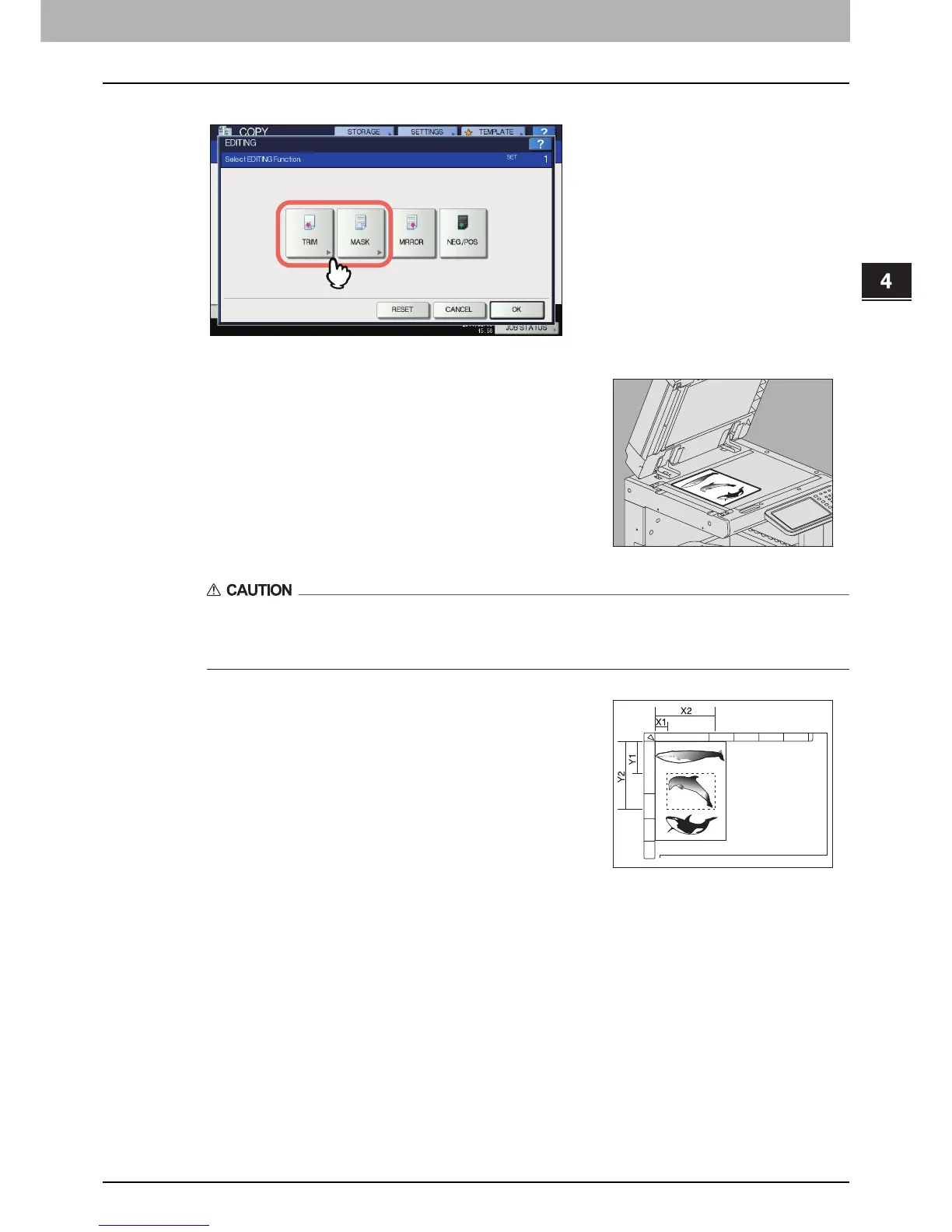

Select [TRIM] or [MASK].
Do not place any heavy objects (4 kg (9 lb.) or over) on the original glass and do not press on
it with force.
Breaking the glass could injure you.
4
Place the original on the original glass with its face
up.
Place it with its bottom toward you. Align its top left corner
against that of the original glass so that the original will be
aligned with the original scales.
5
Read the following 4 values to specify the area using
the left and top scales on the original glass.
X1: From the top left to the left edge of the selected area
X2: From the top left to the right edge of the selected area
Y1: From the top left to the upper edge of the selected area
Y2: From the top left to the lower edge of the selected area
Note that the marks of the original scales have a 2 mm (0.08")
pitch.
To Next Page
