1.BEFORE USING EQUIPMENT
Placing Paper 17
1 BEFORE USING EQUIPMENT
9

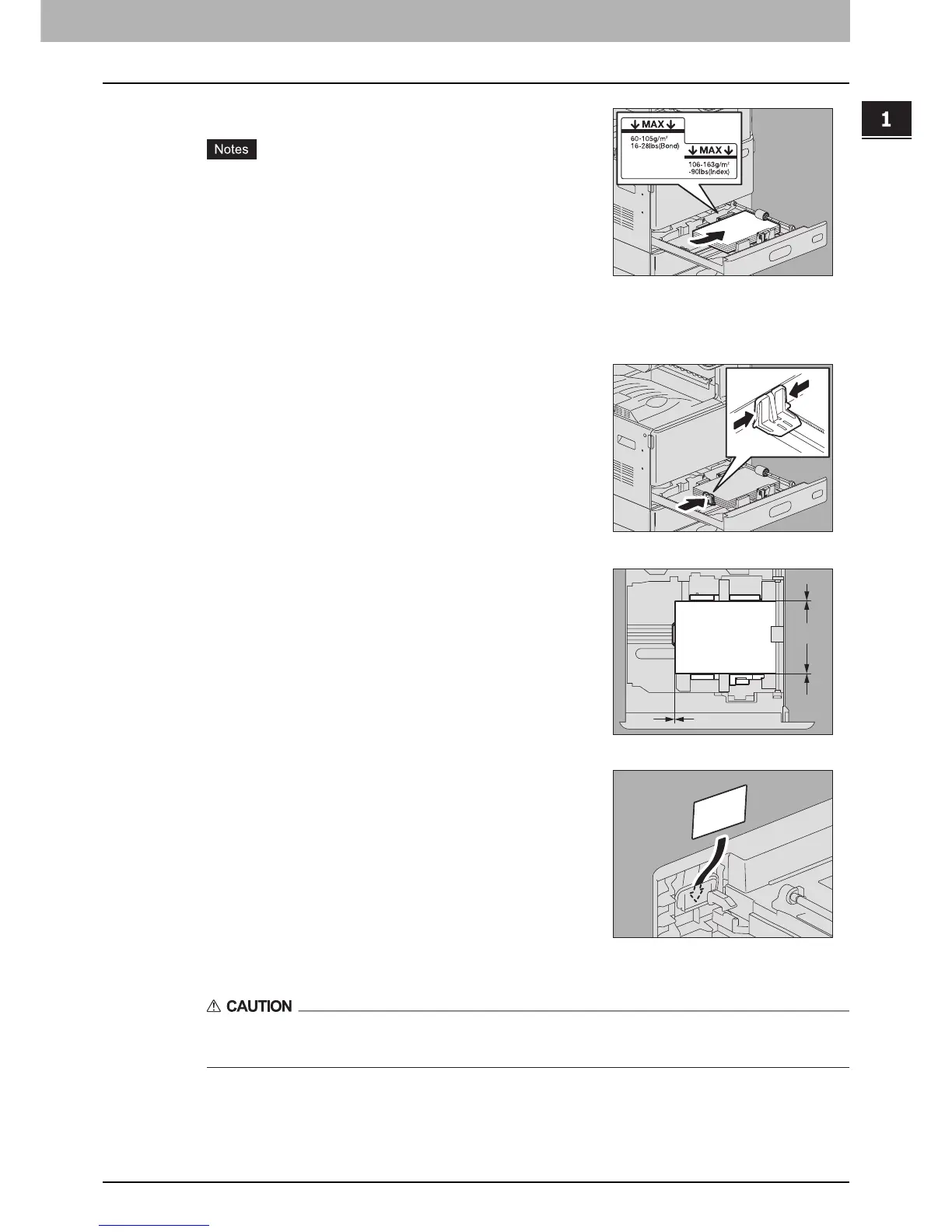

Push the drawer straight into this equipment carefully until it comes to a stop.
Be careful not to let your fingers be caught when pushing the drawer into this equipment.
This could injure you.
5
Place paper in the drawer.
y One drawer can hold up to 277 sheets (64 g/m
2
) (17 lb.
Bond). Be sure that the height of the stacked paper does
not exceed the line indicated inside of the side guides.
P.11 “Acceptable copy paper”
y Fan and jog the stack of paper well before you place it in
a drawer, or the sheets may not be separated before
being fed. Be careful not to cut your fingers when
fanning.
y Place paper with its copy side up. The copy side may be
noted on its wrapping paper.
6
Push the lower part of the end guide in the direction
of the arrows to remove it, then reinstall it at the
position of the desired paper size.
7
Check that there is no gap between the paper and the
side guides, as well as the paper and the end guide.
If the gap is too wide, it could cause paper misfeeding, or the
paper size could not be correctly detected.
Between the paper and side guides ("A" in the figure):
Make sure there is no gap. (0.5 mm (0.02") or less on one side,
1.0 mm (0.04") or less in total) However, if paper misfeeding
occurs, make a gap.
Between the paper and end guide ("B" in the figure):
Make sure there is no gap. (0.5 mm (0.02") or less)
8
Change the paper size indicator if required.
A
B
To Next Page
