Clearing a Paper Misfeed 13
Clearing a Paper Misfeed
Locating a paper misfeed
The equipment stops copying when the original or copy paper is misfed. Paper misfeeds are notified on the touch panel as
follows:
The paper misfeed symbol helps you locate the paper misfeed.
1. Finisher (optional) ( P.20) or Hole Punch Unit (optional) ( P. 2 0 )
2. Inserter (optional) ( P.20)
3. Reversing Automatic Document Feeder (lower) ( P. 1 5 )
4. Reversing Automatic Document Feeder (upper) ( P.16)
5. Inside of the equipment (paper exit area) ( P.2 5 )
6. Inside of the equipment (paper transport area) ( P.2 5 )
7. Bypass tray ( P. 1 8 )
8. External Large Capacity Feeder (optional) ( P. 1 9 )
9. Inside of the equipment (paper feed area) ( P.25)
10. Inside of the equipment (duplexing unit area) ( P. 2 5 )
11. Drawers ( P.17)or tandem large capacity feeder ( P.18)
12. Inside of the equipment (reversing area) ( P.25)
13. Saddle stitch unit (optional) ( P.20)
The picture of the hardware device shown on the touch panel differs depending on the finisher options installed.

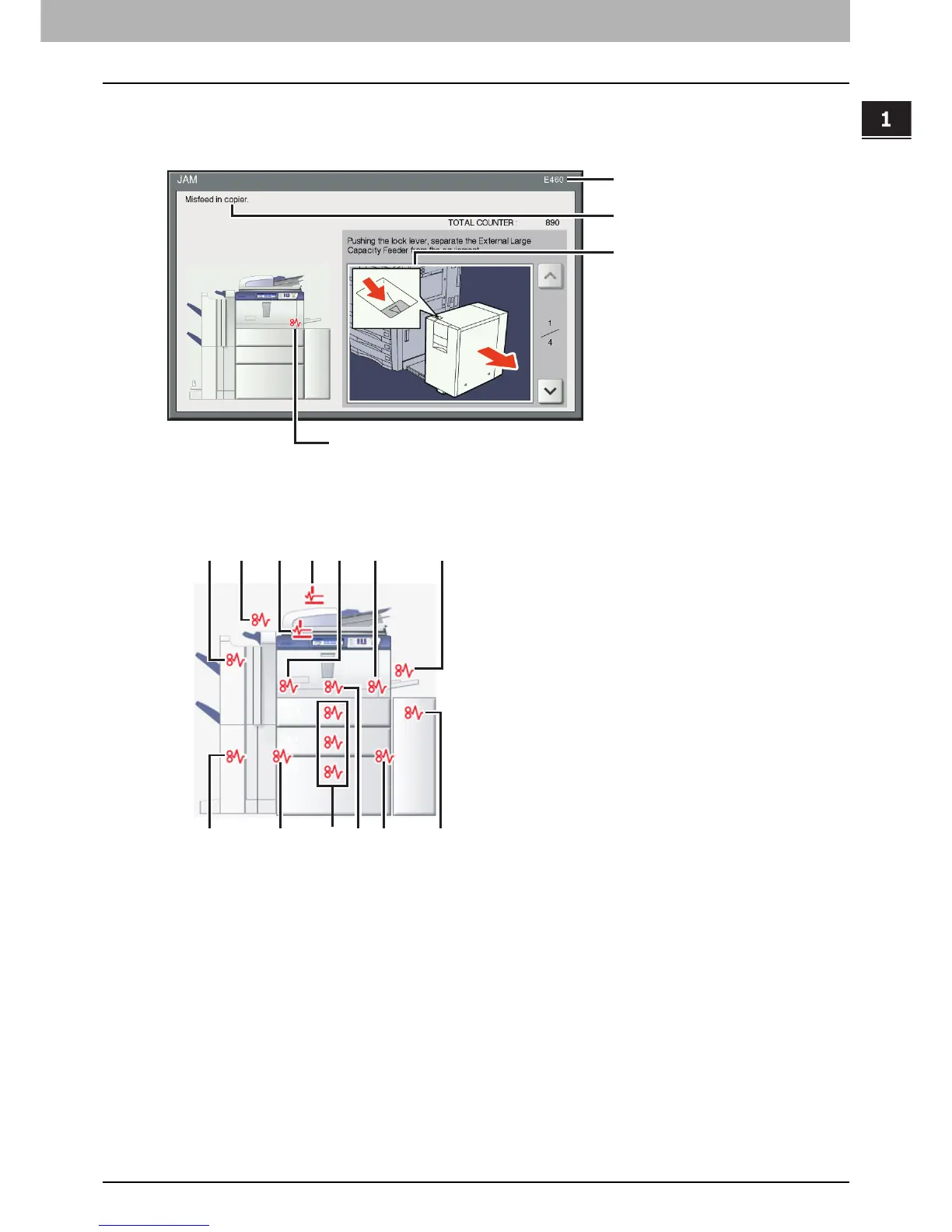

Error code
Error message
Paper misfeed symbols
Guidance for
clearing paper misfeeds
12 9
1013
8
4 5321 6
7
11
