1 TROUBLESHOOTING FOR THE HARDWARE

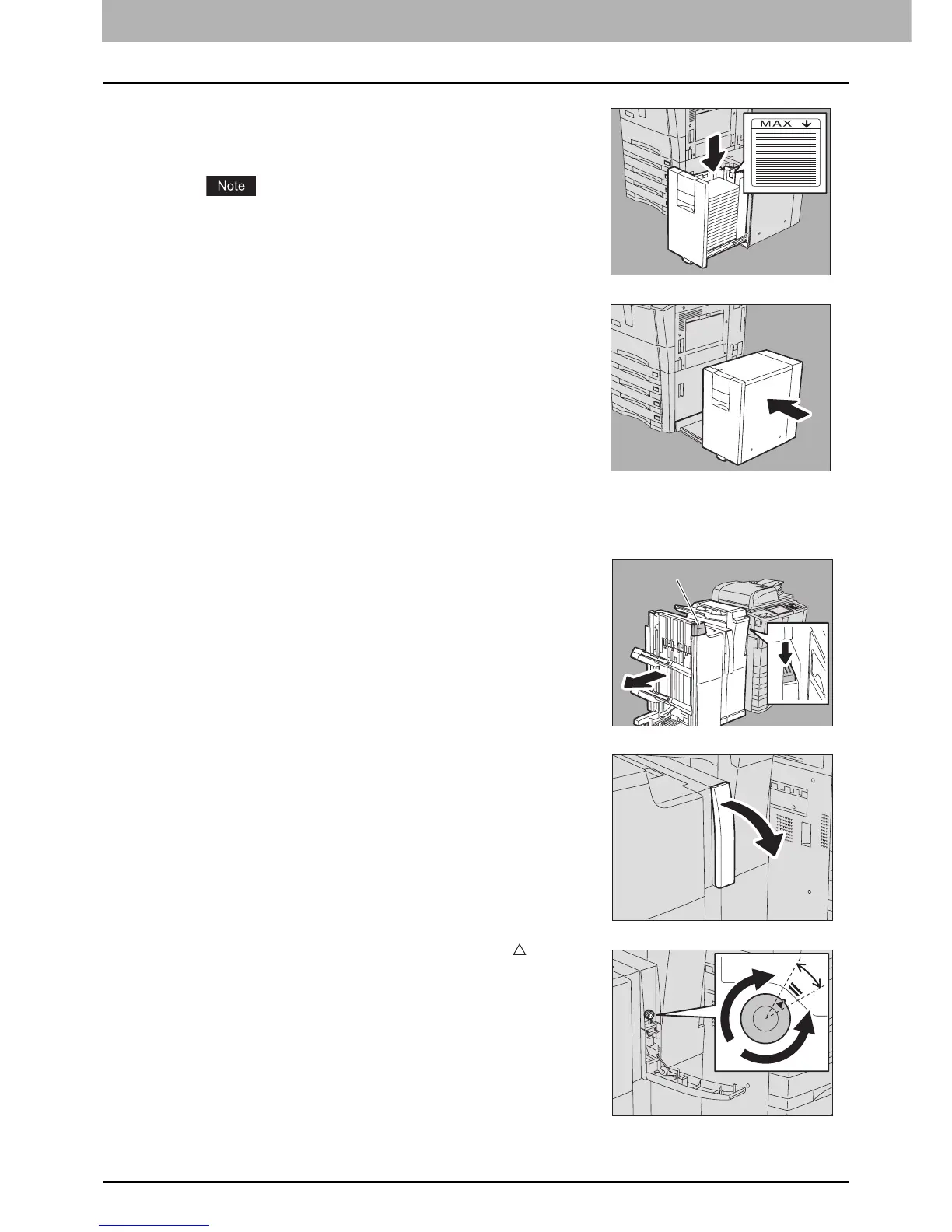

20 Clearing a Paper Misfeed
Paper misfeed in the Finisher, Hole Punch Unit and Inserter (all optional)
5
Check that there is no folded/curled paper or
overloading, and then close the drawer of the Large
Capacity Feeder.
Be sure that the height of the stacked paper does not exceed the
line indicated in the guide plate on the rear side.
6
Connect the External Large Capacity Feeder to the
equipment.
Slowly move the External Large Capacity Feeder placing your hands
on the positions shown in the figure.
1
Separate the finisher from the equipment while
pushing the lock lever.
Place your hand on portion A in the figure and then move the finisher
carefully.
2
When the Hole Punch Unit is installed, open the Hole
Punch Unit cover.
3
Turn the green dial until the triangle mark ( ) falls
within the designated area of the label.
A
To Next Page
