Description of Each Component
13

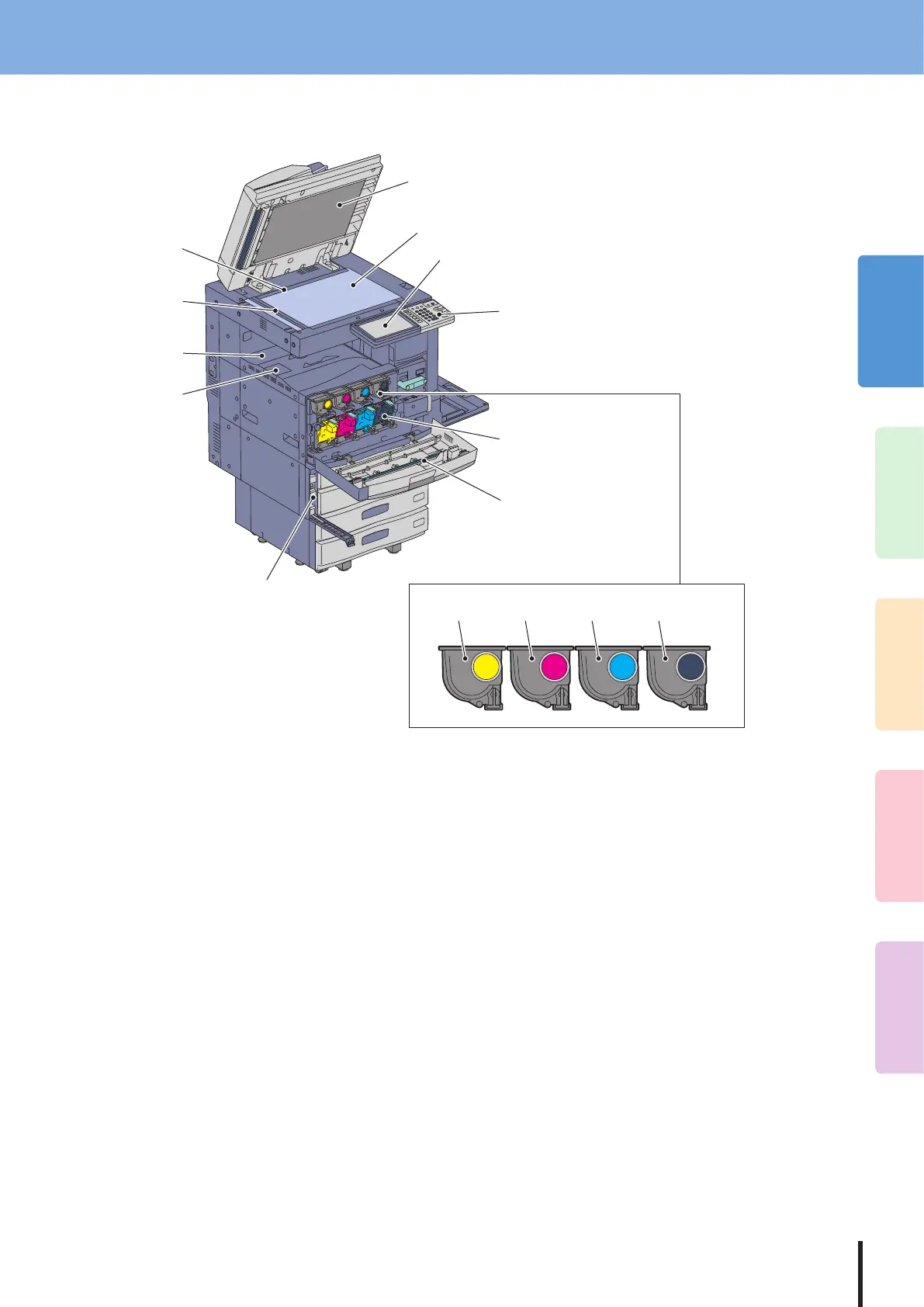

Left side / Inner side
1. Platen sheet
& P.64 “Daily Inspection”
2. Original glass
Use this to copy three-dimensional originals, book-type
originals and special paper such as OHP lm or tracing
paper, as well as plain paper.
3. Touch panel
Use this to set and operate various types of functions such
as copying and fax.
& P.20 “Touch panel”
4. Control panel
Use this to set and operate various types of functions such
as copying and fax.
& P
.16 “Control panel”
5. Charger cleaner
6. Waste toner box
& P.47 “Replacing Waste Toner Box”
7. Slit glass cleaner
Use this if the copied or printed paper is stained.
8. Paper exit stopper
Use this to prevent the exiting paper from falling. Open
this when you make many copies or prints on a larger size
of paper such as A3, B
4, LD and LG.
9. Receiving tray
Printed paper exits into this tray. The loading capacity is
approx. 550 sheets (90 g/m
2
28 lb. Bond). This may vary
depending on the paper conditions such as the degree of
paper curling.
10. Scanning area
The data of originals transported from the Reversing
Automatic Document Feeder (optional, MR-3018) are
scanned here.
& P
.64 “Daily Inspection”
11. Original scale
Use this to check the size of an original placed on the
original glass.
12. Black toner cartridge
13. Cyan toner cartridge
14. Magenta toner cartridge
15. Yellow toner cartridge
& P.46 “Replacing Toner Cartridge”
