26

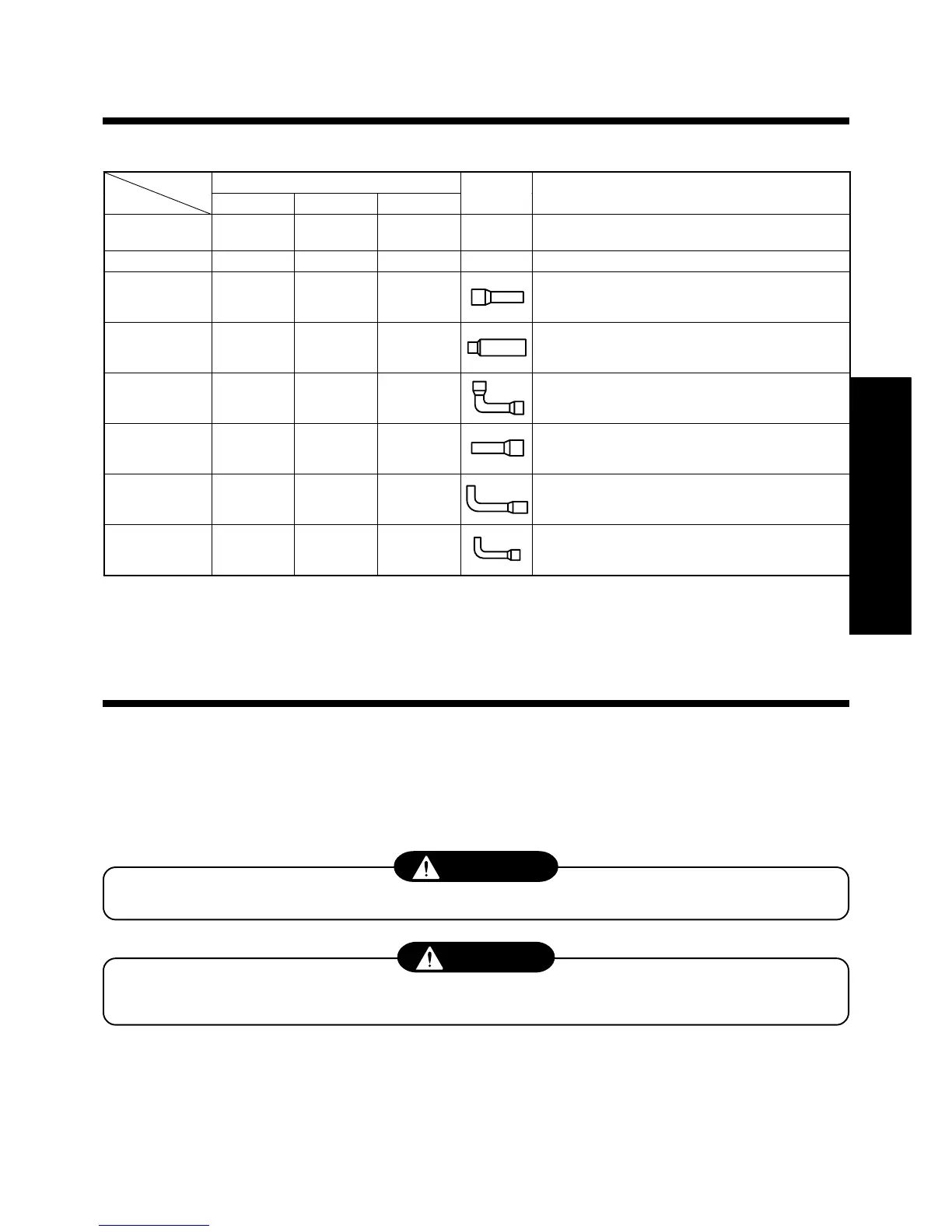

ACCESSORY PARTS
r Accessory parts
SAFETY CAUTION
• Please read this “Safety Cautions” thoroughly before installation to install the air conditioner
and flow selector correctly.
• The important contents concerned to the safety are described in the “Safety Cautions”.
Be sure to keep them. For Indications and their meanings, see the following description.
n Explanation of indications
WARNING
Indicates possibilities that a death or serious injury of personnel is caused by an incorrect handling.
CAUTION
Indicates contents that an injury (∗1) or property damage (∗2) only may be caused when an incorrect work has
been executed.
*1 : “Injury” means a hurt, a burn, or an electric shock which does not require hospitalization or a long-term going to
the hospital.
*2 : “Property damage means an enlarged damage concerned to property, or breakage of materials.
• After installation work has finished, check there is no trouble by a test operation, and explain
using method and maintenance method to the customers based on the Owner’s Manual.
Please ask the customers to keep this Installation Manual together with the Owner’s Manual.
Q’ty
MMY-
Part name
MAP0802FT8 MAP1002FT8 MAP1202FT8
Shape Use
Installation Manual 2 2 2
Volume-1
Volume-2
(Be sure to handover to customers.)
Owner’s Manual 1 1 1 — (Be sure to handover to customers.)
Attached pipe 1 1 —
Suction gas pipe Ø25 to Ø22 special-form connecting pipe
(For drawing out forward, downward)
Attached pipe —— 1
Suction gas pipe Ø25 to Ø28.6 special-form connecting pipe
(For drawing out forward)
Attached pipe —— 1
Suction gas pipe Ø25 to Ø28.6 special-form connecting pipe
(For drawing out downward)
Attached pipe 1 1 1
Discharge gas pipe Ø15.9 to Ø19.1 special-form connecting
pipe (For drawing out downward)
Attached pipe 1 1 1
Discharge gas pipe Ø15.9 to Ø19.1 special-form connecting
pipe (For drawing out forward)
Attached pipe 1 1 1
Liquid pipe Ø12.7 connecting pipe
(For drawing out forward)
n This air conditioner requires the indoor unit, remote controller, Flow selector unit, and
Y-shape branching joint or branching header. Select one according to the capacity.
INSTALLATION
OUTDOOR (VOLUME-1)
