3
2-way discharge/3-way discharge
2-way discharge or 3-way discharge can be
selected according to the shape or
arrangement of the room.
For details, consult with the dealer which you
have purchased the air conditioner.
Air outlet/Air outlet flap
Select air blow direction in cooling or
heating operation each.
Air inlet grille
Air in the room is sucked from here.
Air filter
Removes dust and trash.
(Air filter is provided in the air grille.)
Earth screw
It is included in the electric
parts box.
Clip
The clip is to open/close the
air inlet grille.
Center panel
Air inlet
Air in the room is
sucked from here.
Air filter
Removes dust and trash.
(Air filter is provided in the center panel.)
Earth screw
It is included in the electric parts box.
Air outlet/Air outlet flap
Select air blow direction in cooling or
heating operation each.
Air outlet/
Air outlet flap
Select air blow direction in
cooling or heating operation each.
Earth screw
It is included in the
electric parts box.
Air inlet grille
Air in the room is sucked from here.
Air filter
Removes dust and trash.
(Air filter is provided in the air inlet grille.)
Earth screw
It is included in the electric parts box.
Air outlet/
Air outlet flap
Select air blow direction in cooling
or heating operation each.
Air inlet grille
Air in the room is sucked
from here.
Air filter
Removes dust and trash.
(Air filter is provided in the air inlet grille.)
Indoor unit
[4-way Air Discharge Cassette Type]
[2-way Air Discharge Cassette Type]
[1-way Air Discharge Cassette Type]
MMU-AP0071YH to AP0121YH MMU-AP0151SH to AP0241SH
MMU-AP0152SH, AP0182SH, AP0242SH
Button
Button to open/close
suction port
Air outlet/Air outlet flap
Change the direction of the air to be
discharged according to cool/heat mode.
Air filter
Removes dust or trash.
(Provided on the suction port.)
Suction port
Sucks air inside of the room from here.
Earth screw
It is included in the electric parts box.
Air filter
Removes dust or trash.
(Provided on the suction port.)

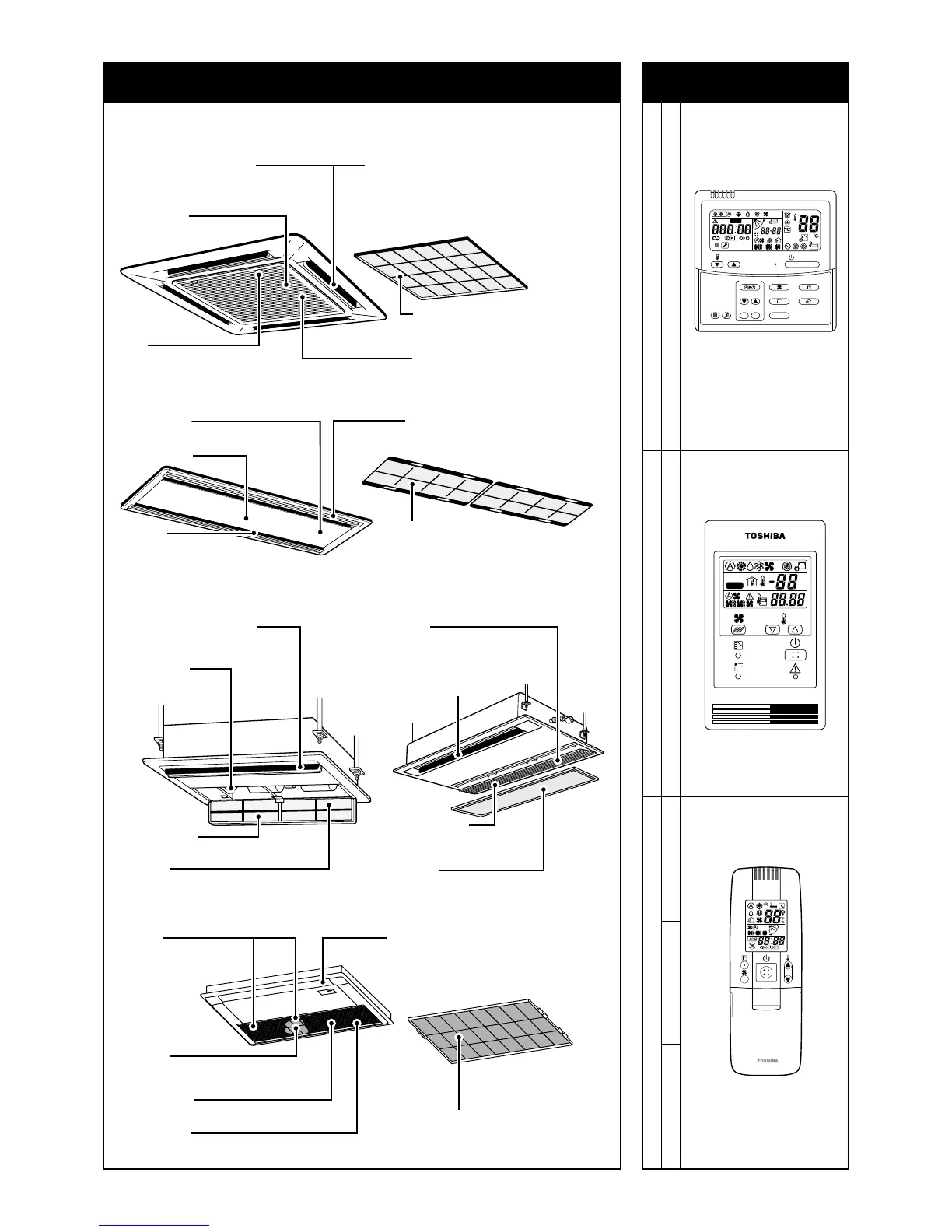

NAME OF EACH PART
Sold Separately Parts
Main remote controller
RBC-AMT31E
Sub-remote controller
RBC-AS21E2
Wireless remote controller kit
TCB-AX21E2 RBC-AX22CE2 RBC-AX21U(W)-E2
ON / OFF
FAN
TEMP.
SWING/FIXTIME
MODE
VENT
UNITSET CL
FILTER
RESET
TEST
TIMER SET
CODE No.
UNIT No.
TEST
SETTING
DATA
SET
R.C. No.
H
˚C
TEST
SETTING
