30
Combination of outdoor unit
Equivalent HP
Model name of
outdoor unit
Unit 1 Unit 2 Unit 3
8 HP MMY-MAP0802FT8 MMY-MAP0802FT8 ——
10 HP MMY-MAP1002FT8 MMY-MAP1002FT8 ——
12 HP MMY-MAP1202FT8
∗
MMY-MAP1202FT8 ——
16 HP MMY-AP1602FT8 MMY-MAP0802FT8 MMY-MAP0802FT8 —
18 HP MMY-AP1802FT8 MMY-MAP1002FT8 MMY-MAP0802FT8 —
20 HP MMY-AP2002FT8 MMY-MAP1002FT8 MMY-MAP1002FT8 —
24 HP MMY-AP2402FT8 MMY-MAP0802FT8 MMY-MAP0802FT8 MMY-MAP0802FT8
26 HP MMY-AP2602FT8 MMY-MAP1002FT8 MMY-MAP0802FT8 MMY-MAP0802FT8
28 HP MMY-AP2802FT8 MMY-MAP1002FT8 MMY-MAP1002FT8 MMY-MAP0802FT8
30 HP MMY-AP3002FT8 MMY-MAP1002FT8 MMY-MAP1002FT8 MMY-MAP1002FT8
Equipments
3

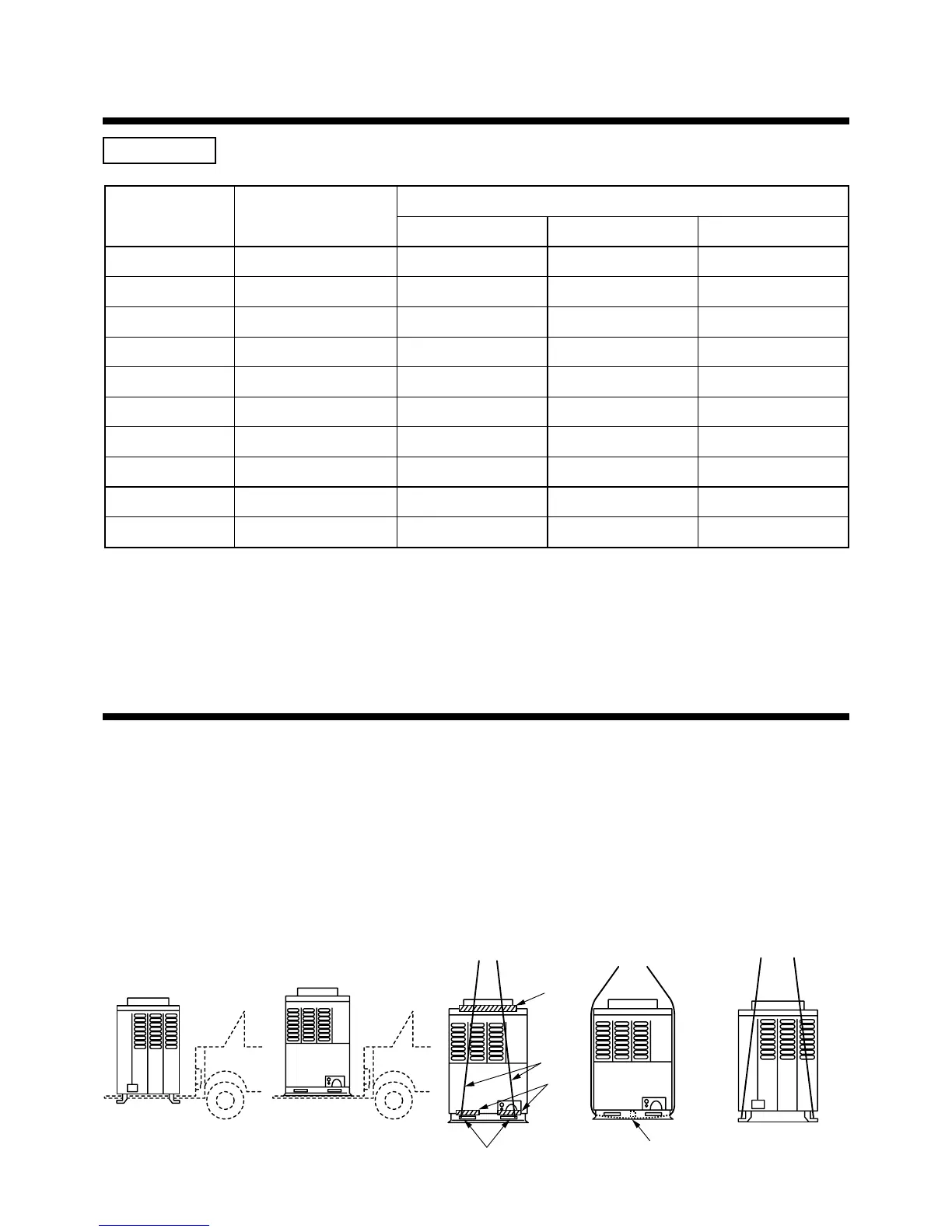

OUTDOOR UNIT CARRYING IN
Handle the outdoor unit in care with the following items.
1. When using a forklift, etc for loading/unloading in transportation, insert pawl of the forklift into the
square hole for handling as shown below.
2. When lifting up the unit, insert a rope sufficiently bearable to unit mass into the square hole for handling,
and cord the unit from four sides. (Apply a plaster to position where rope fits outdoor unit itself so that
flaw or deformation does not generate on the outer surface of the outdoor unit.)
(There provided the reinforcing plates on the side surfaces, so the rope cannot be passed.)
OK NO GOOD OK NO GOOD NO GOOD
Forklift
Plaster
Rope
Plaster
Square hole for handling
Forklift
Reinforcing plate
The unit with ∗ mark cannot be combined with other unit. (Unit unique to 12 HP)
