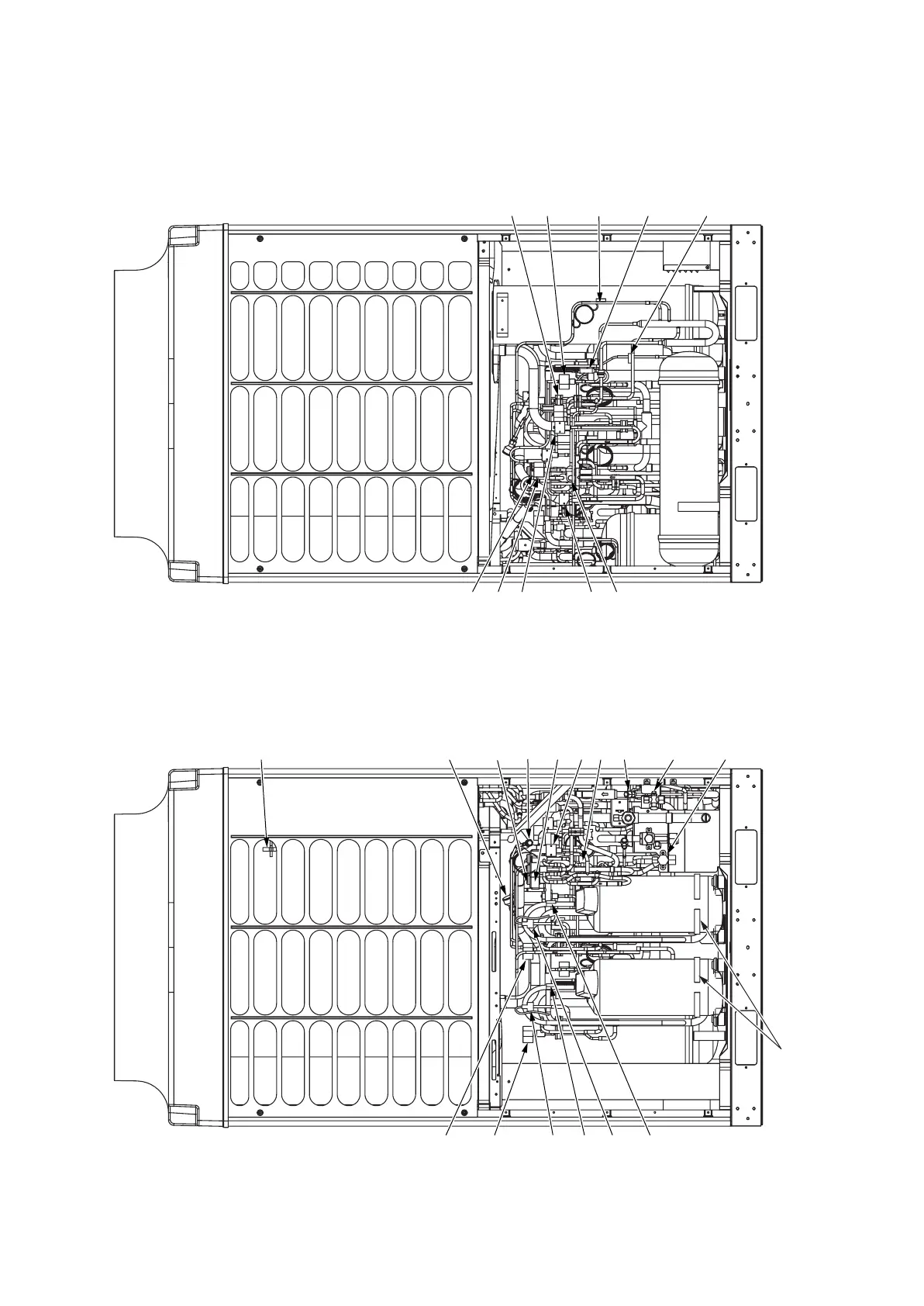

Toshiba MMY-MAP0802FT8-E - Outdoor Unit Parts Layout: SHRM Series; SHRM Series (A05-004-1) - Rear and Front Views

12
Front side Rear side
Case heater
SV3D valve
SV3A valve
SV5 valve
SV42 valve SV41 valve
High pressure
SW 1
High pressure
SW 2
TD1 sensor TD2 sensor
PMV (Pulse Motor Valve)
TS sensor
TO sensor
Check joint (Low pressure)
Low pressure sensor
4-way valve
High pressure sensor
Check joint (High pressure)
TL sensor
Check joint (Liquid pipe)
SV2 valve
SV3C valve
SV3E valve
SV3B valve
TK1, TK2 sensor
TK3 sensor TK4 sensor
<SHRM Series (A05-004-1) >
