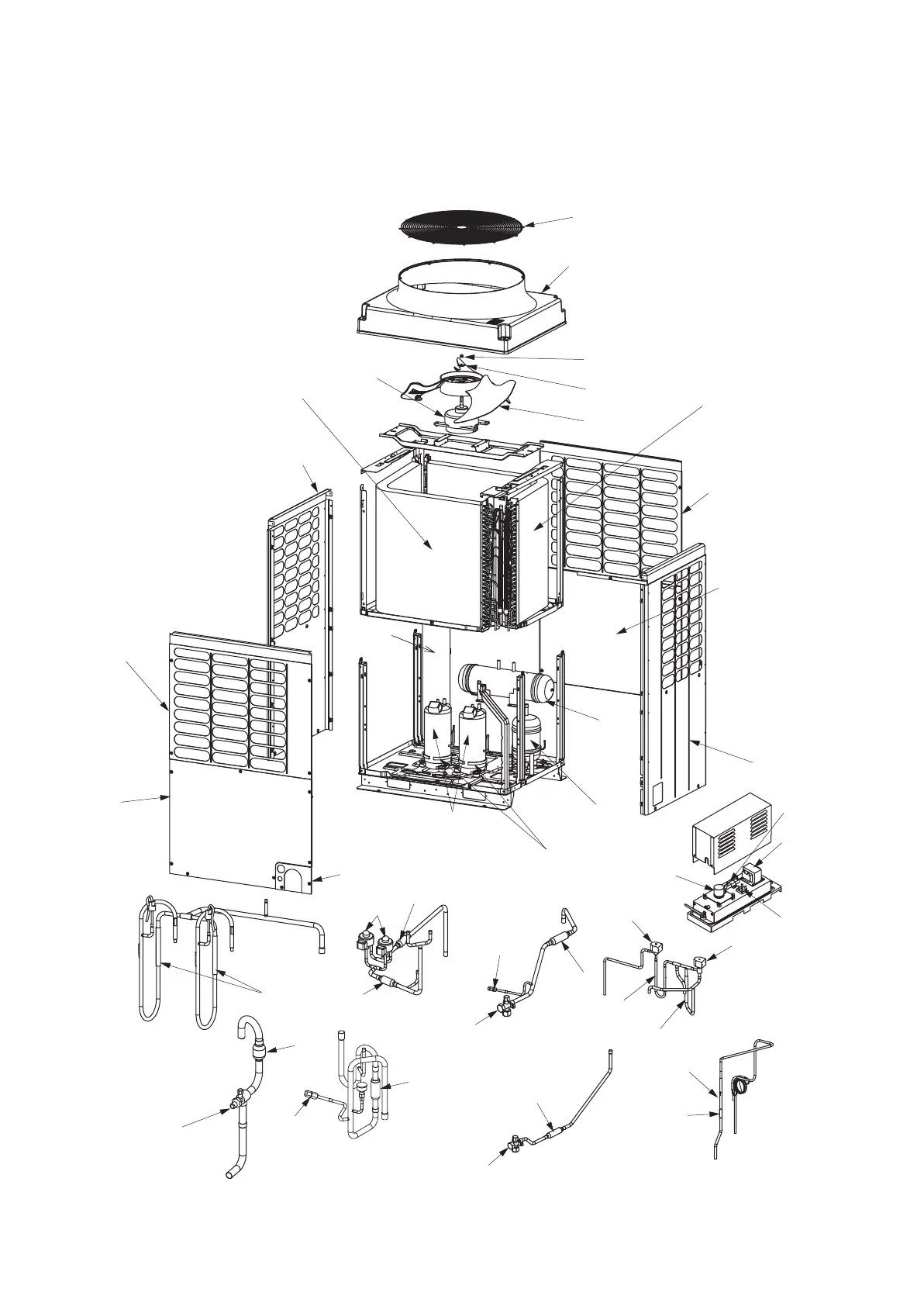

Toshiba MMY-MAP0802FT8-E - Outdoor Unit Exploded Views and Parts List: T8-E Series; T8-E Series (5-12 HP) Exploded View

31
721
723
722
724
SV3A
SV3B
17
16
73
74
25
26
93
95
97
94
52
49
50
69
92
96
91
27
44
30
81
7
80
29
43
64 (8, 10, 12,HP)
or
66 (5, 6HP)
65 (8, 10, 12HP)
or
67 (5, 6HP)
4 (8, 10, 12HP)
or
5 (5, 6HP)
40, 41
8
29
1
39
30
32
44
46
7-2. Outdoor Unit
MMY-MAP0501T8-E (5HP), MMY-MAP0601T8-E (6HP), MMY-MAP0801T8-E (8HP),
MMY-MAP1001T8-E (10HP), MMY-MAP1201T8-E (12HP)
