Toshiba MMY-MAP0804HT8P-E - Page 208

– 207 –

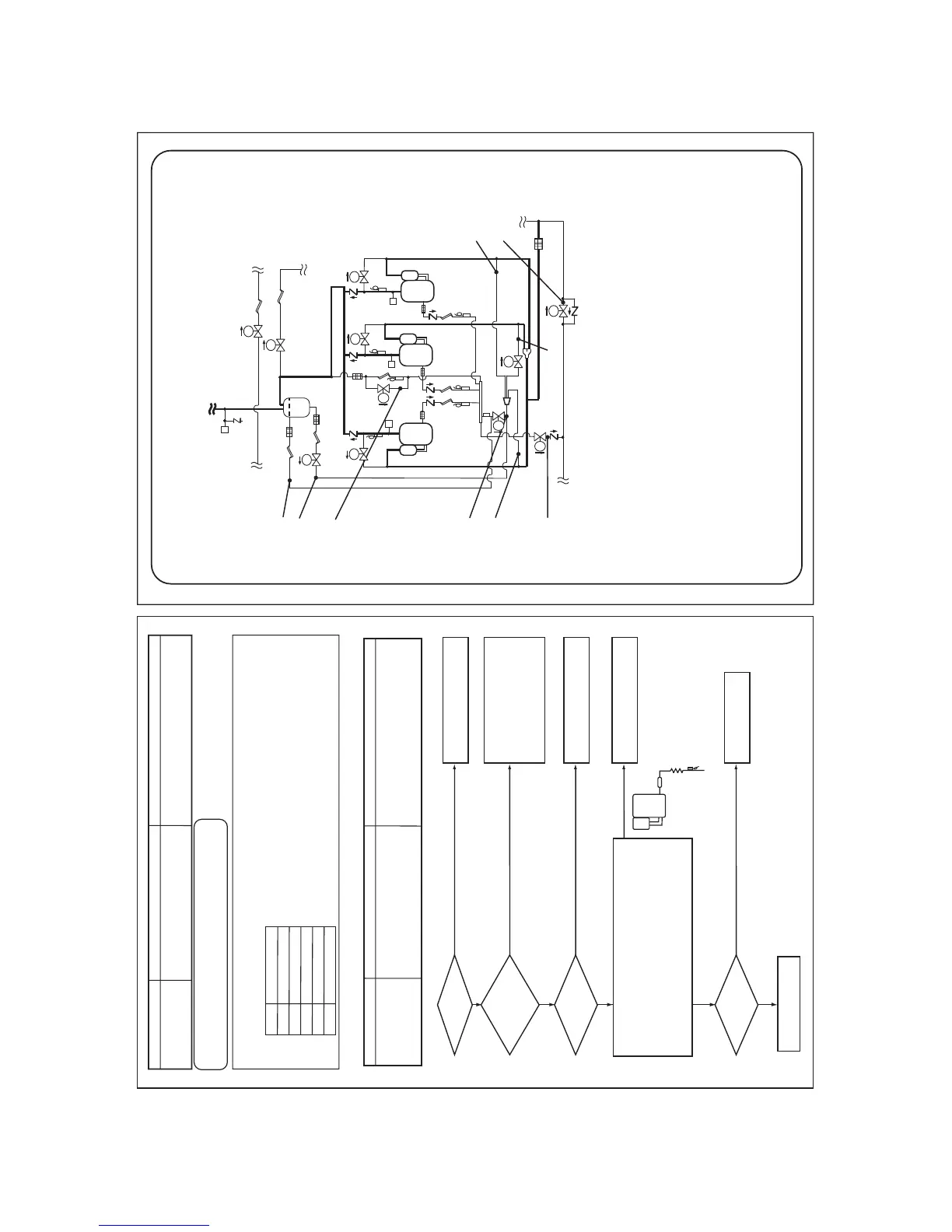

(6) (7) (2) (5) (8) (1)
(3)
(8) (4)
High-pressure sensor
(TD2)
(SV2)
(SV3D)
(TK2)
(SV3B)
(TD1)
(TK4)
SV3E)
TK5)
(SV41)
(SV42)
Oil header
Distributor
(TD3)
(SV43)
(TK3)
(SV3F)
(SV3C)
SV
SV
SV
SV
SV
SV
S
V
SV
SV
SV
SV
Compressor
1
(Inverter)
Compressor
2
(Inverter)
Compressor
3
(Inverter)
Oil separator
High- pressure SW
High- pressure SW
High-
pressure
SW
MMY-MAP1404∗
MMY-MAP1604∗
Circuit
TK1
TK2 TK3
TK4
TK5
Connector
CN531 (Black)
CN532 (Green) CN533 (Pink)
CN534 (Yellow)
CN535 (Red)
[H08]
Strainer
Capillary
TK1
No
Yes
Yes
No error
No
No error
Error
Error
No
Yes
[H16]
esuaCedoc k
ceh
C
Check code name
e
sua
C
edo
c
k
ceh
C
Check code name
Oil level detective temperature
sensor error
TK1 to TK5 sensor Open/Short
Oil level detection circuit error
TK1 temperature detective circuit
error (Sub-code: 01)
Sub-code:
01: TK1 sensor error 02: TK2 sensor error 03: TK3 sensor error 04: TK4 sensor error 05: TK5 sensor error
The detected error is an oil level detective temperature sensor error. Check disconnection of the wiring and resistance
value of the sensor.
If the sensors are normal, replace the outdoor I/F P.C. board.
1. Coming-off of TK1 sensor, miswiring, characteristics
error of resistance value
2. Oil-equalization circuit error (Check valve, capillary
clogging, strainer clogging)
3. Refrigerant stagnation in the compressor shell
Is not TK1 sensor
detached?
Is there
no miswiring or
misinstallation on
TK1/TK2/TK3/TK4/TK5
sensors?
Are
characteristics of
TK1 sensor resistance
value normal?
Check the
clogging of SV3E
valve. (Note 1)
Correct installation of sensor.
Sensor error
Replace clogging part.
Replace SV3E valve.
Check I/F P.C. board
Correct miswiring/misinstallation. TK1: CN531, black
TK2: CN532, green TK3: CN533, pink
TK4: CN534, yellow
TK5: CN535, red
Start a test operation in COOL or HEAT mode.
↓
Display TK1 sensor temperature on 7-segment display with
SW01/02/03=[1] [12] [2].
↓
Check TK1 sensor temp approx. 10 minutes after compressor 1 has operated.
If low temperature continues (approximately outside temp) or temperature has
little change, a clogging of strainer of oil-equalization circuit, clogging of capillary tube, or malfunction of check valve is considered.
Compressor
1
(Note 1) Refer to the article of the check code [H07].
*See “Outdoor unit temperature sensor
characteristics” on “8-9. Sensor Characteristics”.
