2. Connect the VIDEO-IN cable that is bundled with some models.
3. Insert the output cable plug for connecting to the set-top box to the
audio input terminals (red: audio right, white: audio left) and the video
input connector (yellow) of the VIDEO-IN cable.

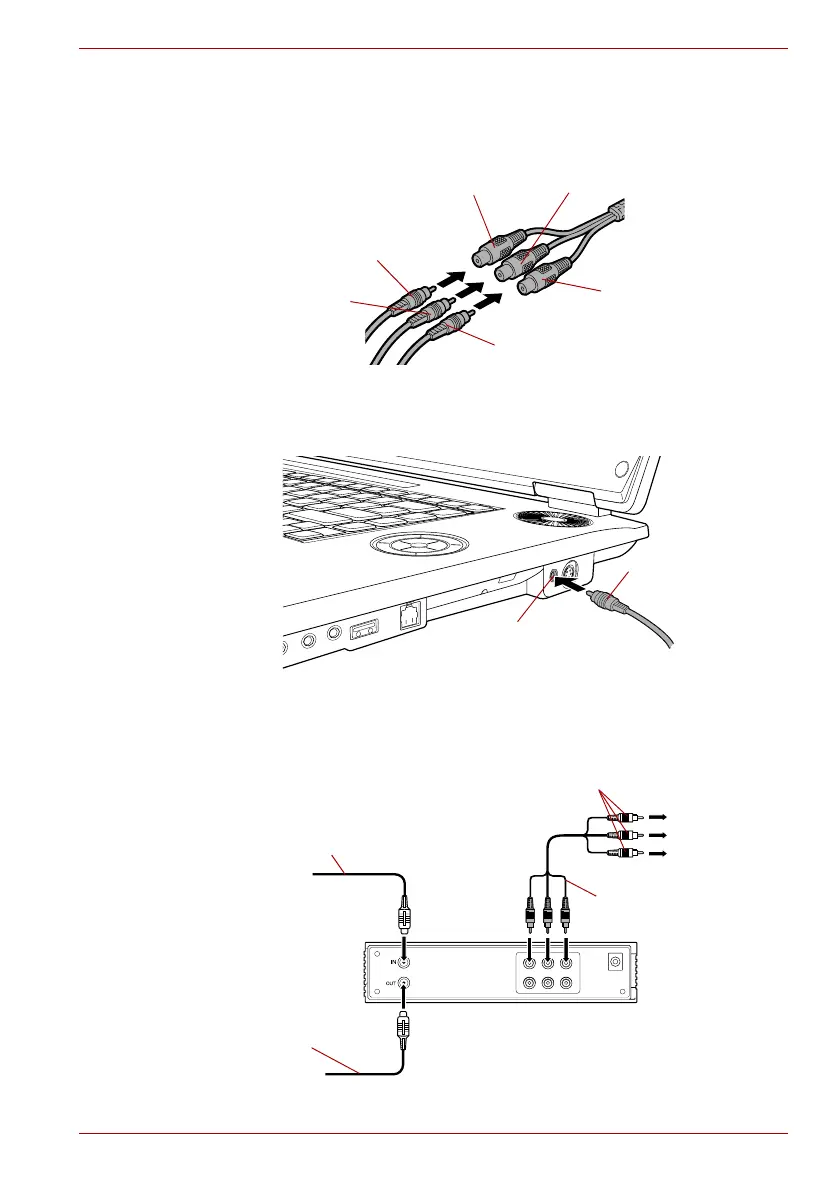

Connecting the cable
4. Insert one end of the VIDEO-IN cable into the VIDEO-IN port of your
computer.
Connecting the VIDEO-IN port
5. Connect the other end of the output cable plug to the output terminals of
the set-top box.
Connection method for the computer and set-top box
Red
White
Yellow
Sound right input (red)
Sound left input (white)
Video input (yellow)
VIDEO-IN port
VIDEO-IN cable
Use the bundled VIDEO-IN cable and connect to VIDEO-IN
port on the right side of the computer.
Coaxial cable
(sold separately)
Coaxial cable
(sold separately)
AV cable
(sold separately)
