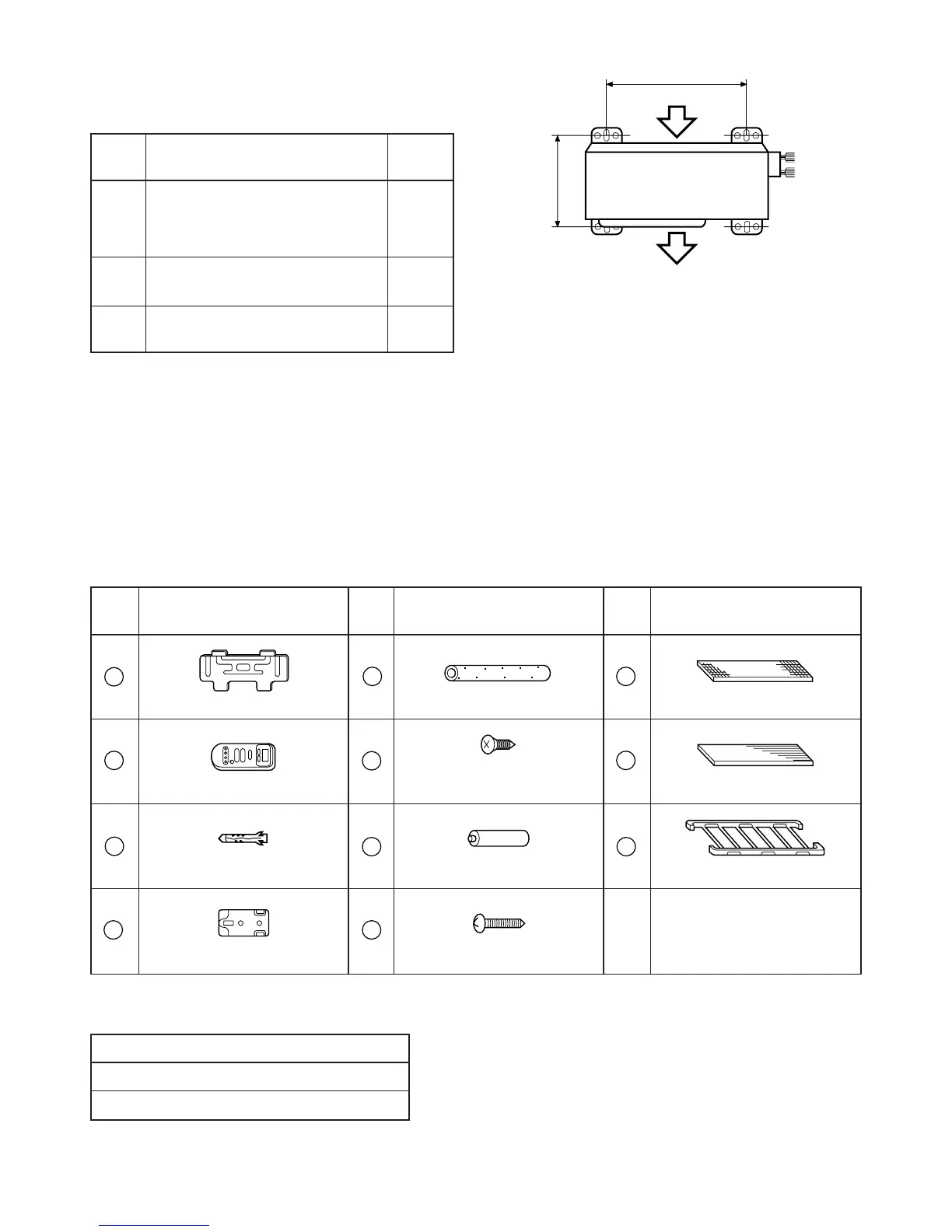

8-3. Installation
8-3-1. Optional Parts
Name
Installation manual
Owner’s manual
This model is not equipped with an extension drain
hose.
Option : For the extension drain hose, use an optionally
available RB-821SW or commercially available one.
Others
Fig 8-3-1 Air outlet
• Secure the outdoor unit with the anchor bolts if the
unit is likely to be exposed to a strong wind.
• Use ø8 or ø10 anchor bolts.
8-3-2. Installation Parts
Part
code
A
B
C
Q’ty
Each
one
1
Each
one
Parts name
Refrigerant piping
Liquid side : ø6.35 mm
Gas side : ø9.52 mm
Pipe insulating material
(polyethylene foam, 6 mm thick)
Putty, PVC tapes
<Anchor bolt arrangement of outdoor unit>
Part
No.
Name of parts
Q’ty
Installation plate x 1
Wireless remote control x 1
Clip anchor x 6
Remote control holder x 1
Part
No.
Name of parts
Q’ty
Shield pipe x 1
Pan head wood screw
ø3.1 x 16l x 2
Batteries x 2
Mounting screw ø4 x 25l x 6
Part
No.
Name of parts
Q’ty
Deodorizing filter x 1
Purifying filter x 1
Filter frame x 2
1
2
3
4 8
7
6
5 9
10
11
600mm
Air inlet
230mm
Air outlet
