Toshiba RAS-10YAH-E - Page 65

– 65 –

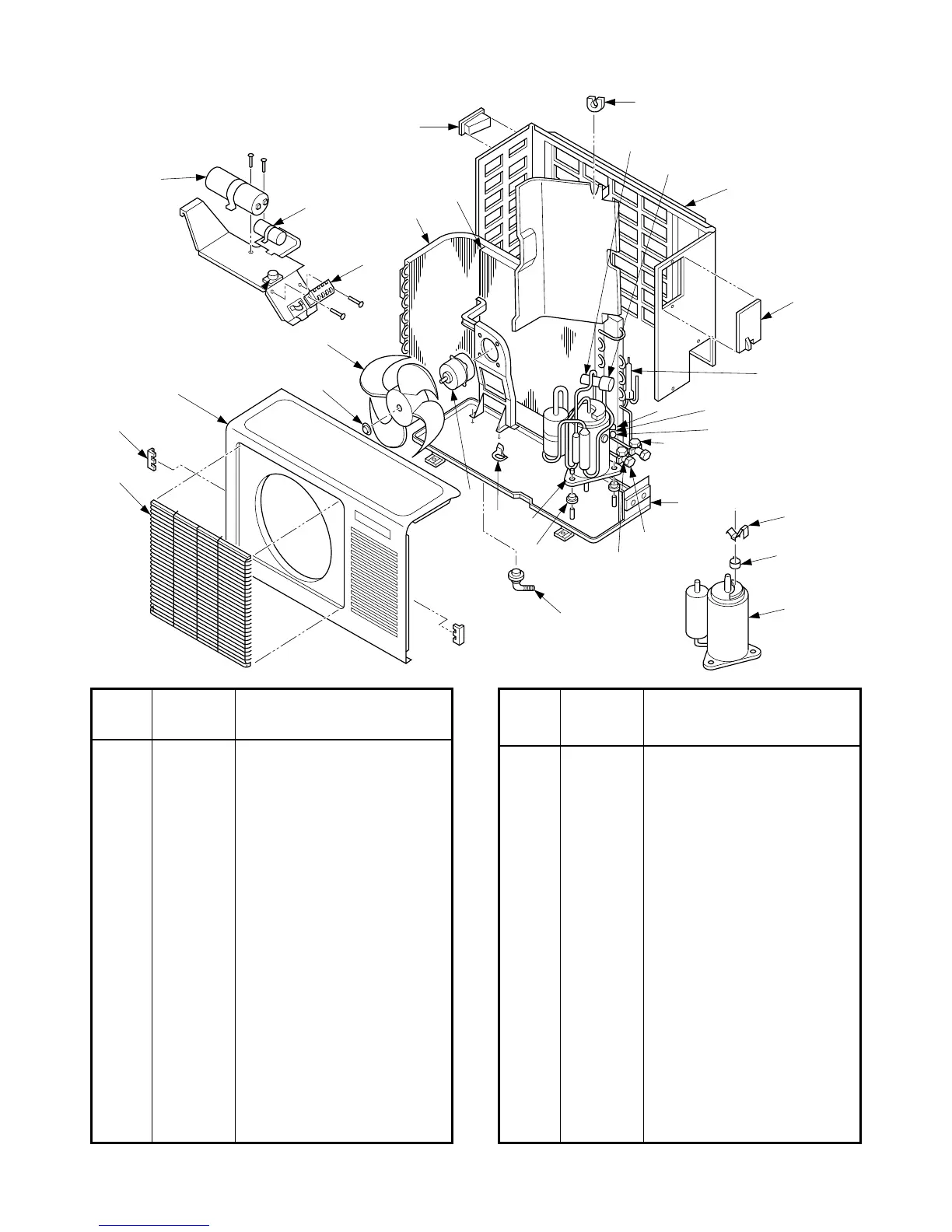

RAS-13YAH-E
29
14
5
8
10
1
6
4
9
12
23
27
24
15,16
3
19
17,18
21, 36
20
25
7
2
13
28
22
31, 32
26
30
33
34
35
11
Location Part
Description
No. No.
1 43005144 Cabinet, Front
2 43005143 Cabinet-Side
3 43042446 Base
4 43T19007 Guard, Fan
5 43T19005 Handle
6 43T19002 Stopper, Guard
7 43T62007 Cover, E-Parts
8 43020302 Fan, Propeller
9 43021984 Motor, Fan, AF-230-28P
10 43T47001 Nut, Flange
11 43T46005 Valve, Check
12 43T63004 Holder, Wire, Lead
13 43T96001 Bushing
14 43043609 Condenser
15 43T46016 Valve, Packed 6,35
16 43T47020 Bonnet
17 43T46019 Valve, Packed 12,7
18 43T47018 Bonnet
19 43T47029 ASM, Packed Valve Cap
12,7, 6,35
Location Part Description
No. No.
20 43T47007 Tube, Capillary, 1,2DIA
21 43T47014 Tube, Capillary, 1,7DIA
22 43041764 Compressor, PH1702T2-4L2
23 43T97001 Nut, Flat-Washer
24 43T49008 Cushion, Rubber
25 43045085 Dryer
26 43054398 Relay, Over Load
27 43T79004 Nipple, Drain
28 43043610 Condenser, Sub
29 43055496 Capacitor, 35µF 400V
30 43T55009 Capacitor, 1,5µF 500V
31 43T50002 Thermostat, Bimetal
32 43T63005 Holder, Thermostat, Bimetal
33 43146482 4Way-Valve
34 43T49030 Solenoid, Coil
35 43060049 Base,Terminal, 5P
36 43T47017 Tube, Capillary, 0,6DIA
