– 66 –

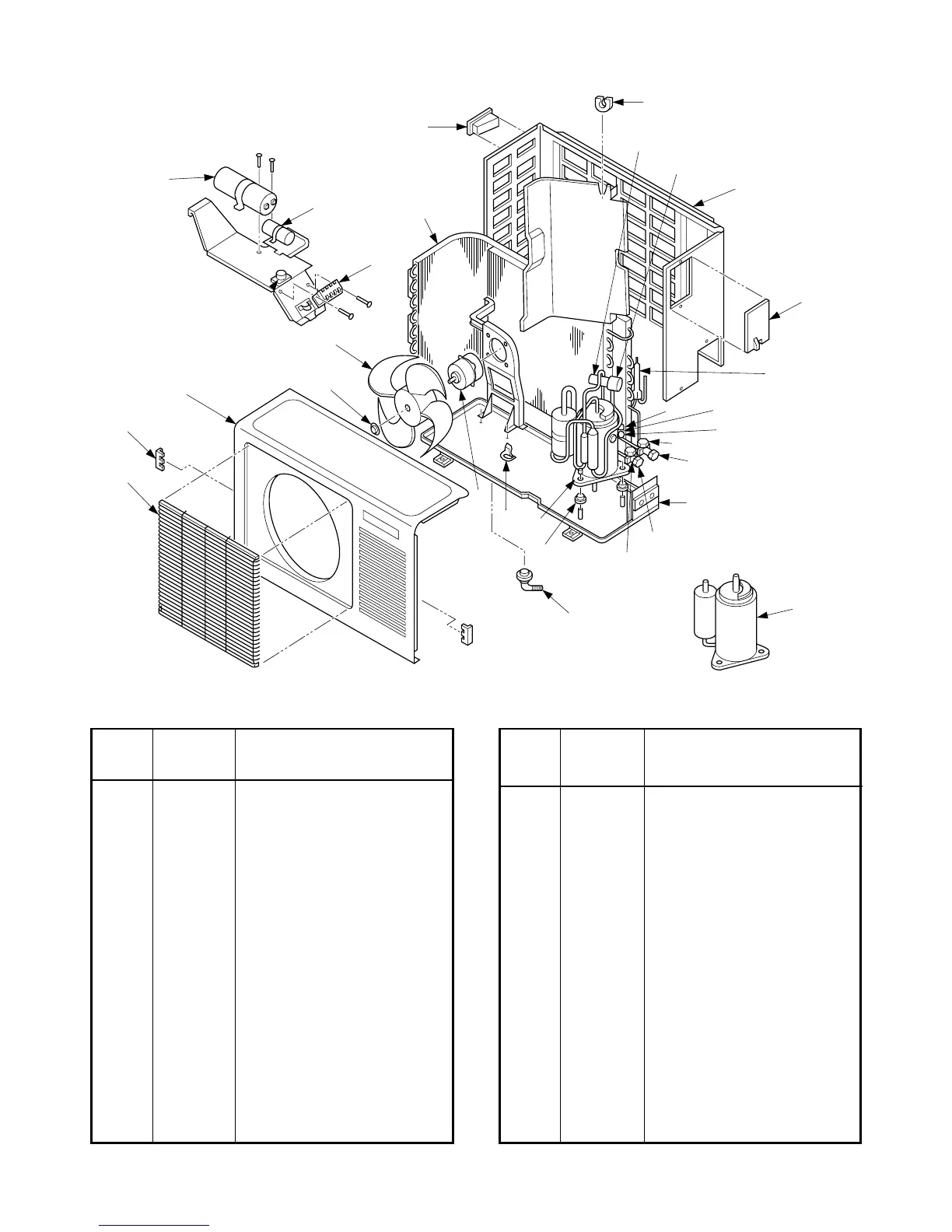

RAS-13YAH-ES
26
14
5
8
10
1
6
4
9
12
22
25
23
16
3
15
18
17
19
20
24
7
2
13
21
27
29
30
28
11
Location
Part
Description
No. No.
1 43005144 Cabinet, Front
2 43005143 Cabinet-Side
3 43042446 Base
4 43T19007 Guard, Fan
5 43T19005 Handle
6 43T19002 Stopper, Guard
7 43T62007 Cover, E-Parts
8 43020302 Fan, Propeller
9 43021984 Motor, Fan, AF-230-28P
10 43T47001 Nut, Flange
11 43T46005 Valve, Check
12 43T63004 Holder, Wire, Lead
13 43T96001 Bushing
14 43T43012 Condenser
15 43T46016 Valve, Packed 6,35
Location
Part Description
No. No.
16 43T47021 Bonnet
17 43T46011 Valve, Packed 9,52
18 43T47020 Bonnet
19 43T47007 Tube, Capillary, 1,2DIA
20 43T47008 Tube, Capillary, 1,5DIA
21 43041700 Compressor, PA160x2T-4FZ
22 43T97001 Nut, Flat-Washer
23 43T49008 Cushion, Rubber
24 43T45004 Dryer
25 43T79004 Nipple, Drain
26 43055496 Capacitor, 35µF 400V
27 43T55009 Capacitor, 1,5µF 500V
28 43060049 Base,Terminal, 5P
29 43T46012 4Way-Valve, VHV-0104
30 43T46013 Coil, 4Way, VHV-01AI501A
