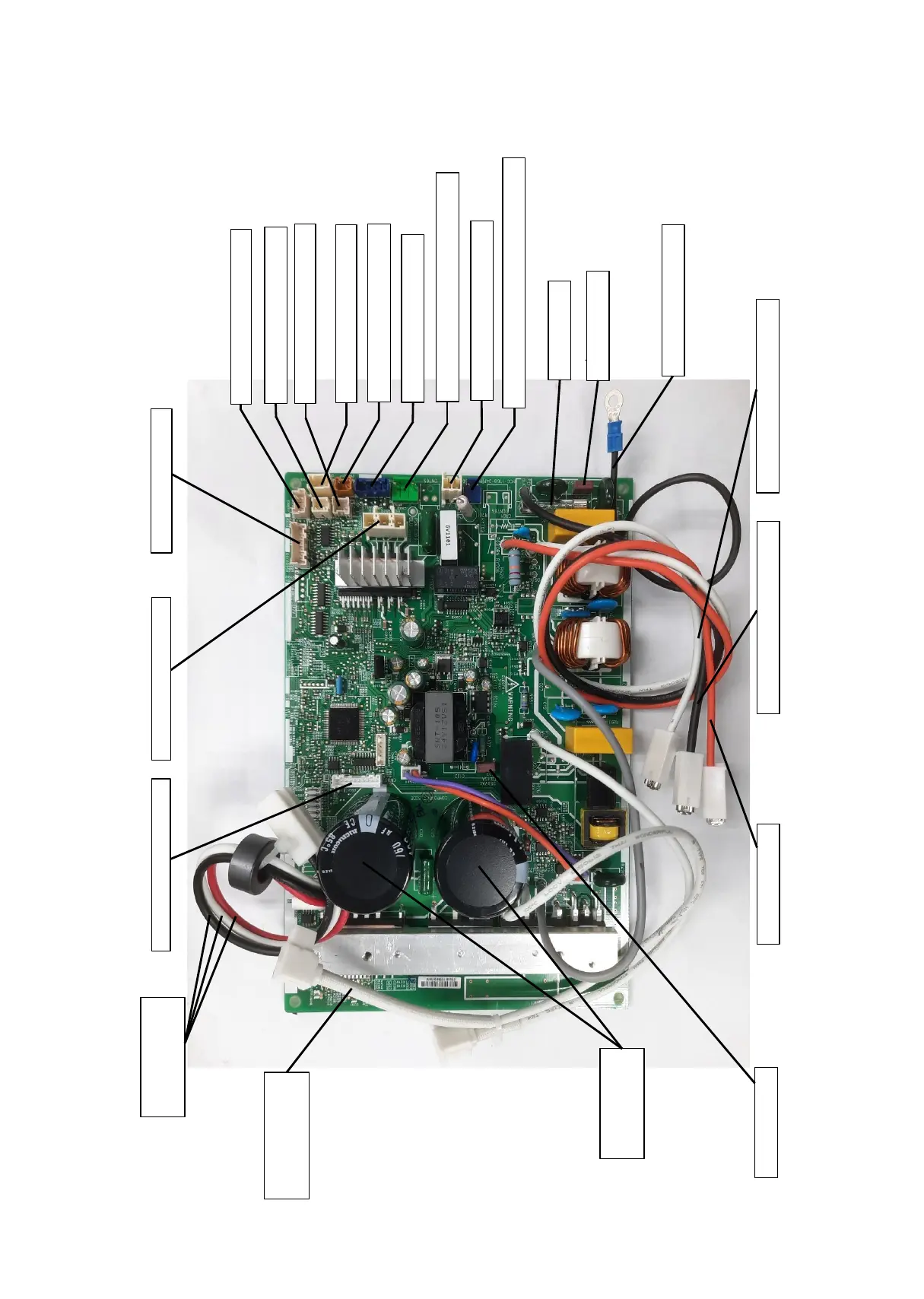

7. OUTDOOR CONTROL CIRCUIT
CN300 : Fan motor conector
Compressor leads
(Red, White, Black)
C09, C10
Electric capacitor
Lead and connector
for Reactor
Lead for grounding (Black)
CN700 : PMV connector
CN601 : TD sensor connector
CN501 : High pressure switch connector
CN704 : 4-way valve connector
N-phase power supply lead (White)
F03 : 3.15A fuse
L-phase power supply lead (Black)
Serial lead (Orange)
F01 : 25A fuse
CN600 : TE sensor connector
CN603 : TS sensor connector
CN602 : TO sensor connector
CN604 : TL sensor connector
CN500 : Compressor case thermo connector
CN806 : Optional connector
F02 : 3.15A fuse
CN807 : Connector for display
7-1. Outdoor Print Circuit Board
To Next Page
