14
Introduction
Index to parts and controls
See pages with arrows for details.

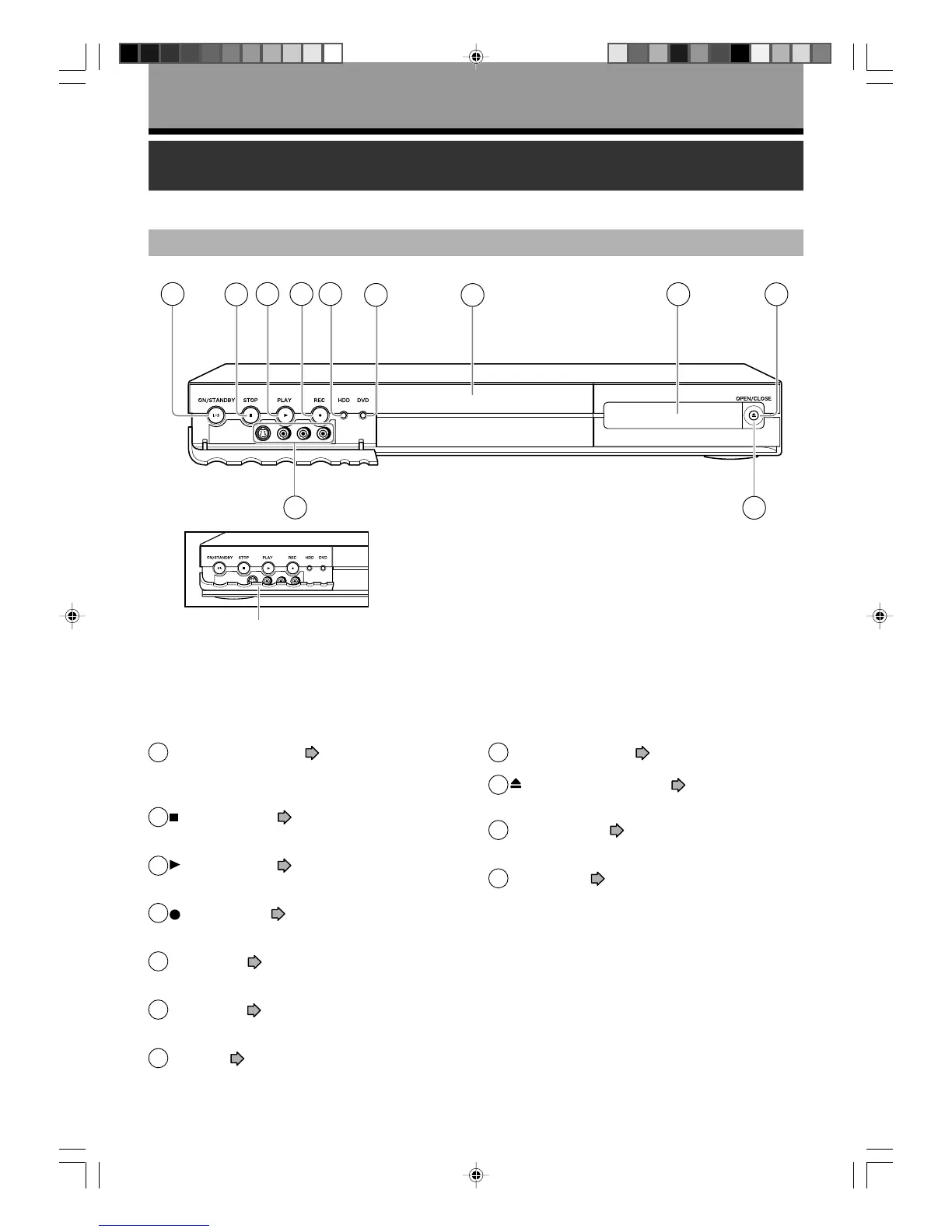

Front panelFront panel
* The above illustration displays the front panel with the cover open. See the following page on how to open or close the cover.
Note
• Do not place a heavy object on the cover while it is
open. Doing so may damage the recorder.
1
2
3
4
5
9
7
8
6
10
11
1 ON/STANDBY button pages 20, 21
Turns the power on/restores the unit in the
standby mode.
2
(STOP) button page 46, 55
Stops playback or recording.
3
(PLAY) button page 64
Starts playback.
4
(REC) button page 45, 48
Starts recording.
5 HDD button
page 45, 54
Press this to operate the HDD.
6 DVD button
page 45, 54, 64
Press this to operate a disc inside the disc tray.
7 Disc tray
page 20
Loads a disc into the disc drive.
8 Front panel display
page 15
9 (OPEN/CLOSE) button page 20
Opens and closes the disc tray.
10 Remote sensor page 12 in “INSTALLATION
GUIDE”
11 INPUT jacks
page 47
Use this when recording from other input source
such as a VTR or a camcorder.
Pull down here to open.
RD-85DT_Ope_E_p014-019 3/27/06, 19:4014
