A1-7

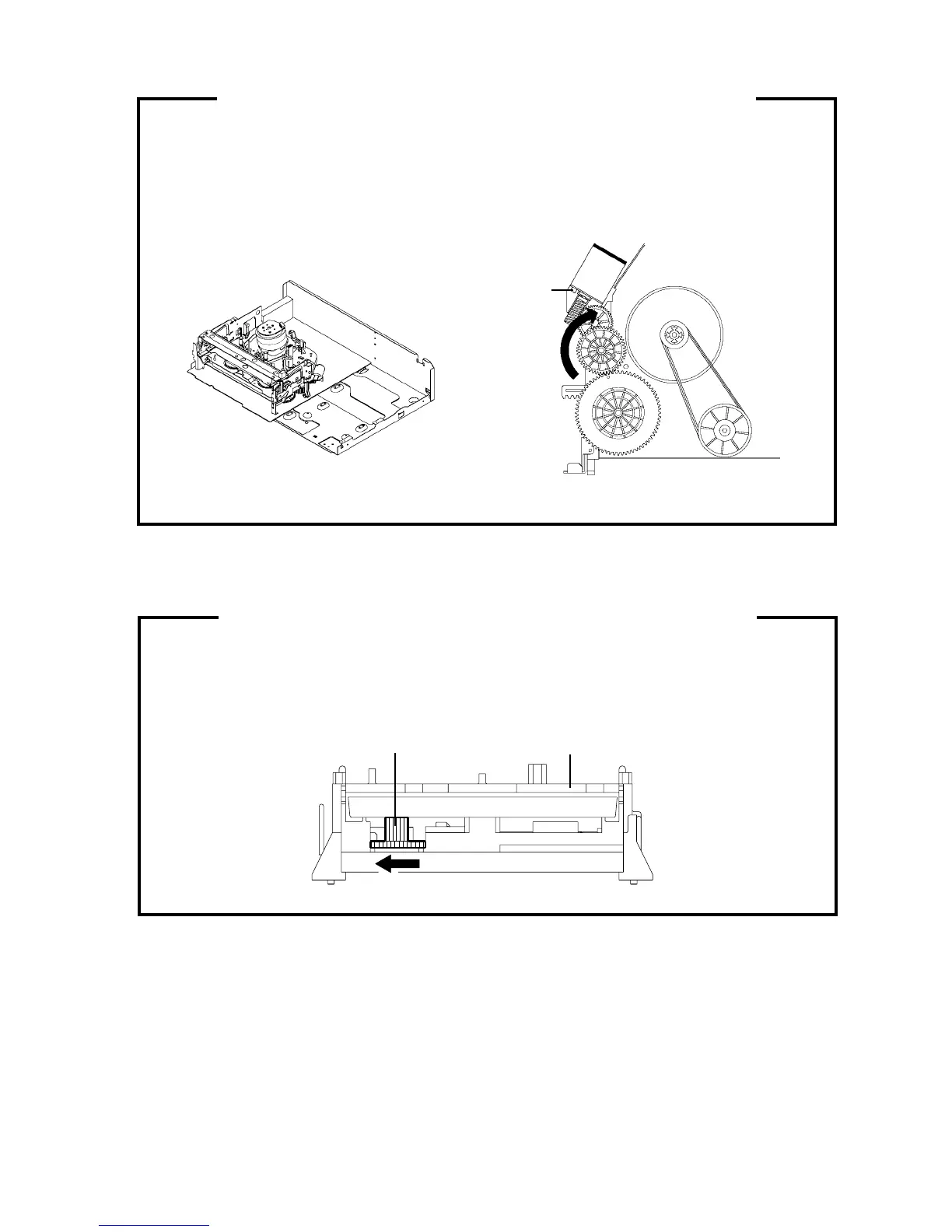

TAPE REMOVAL METHOD AT NO POWER SUPPLY
Fig. 1
Fig. 2
Remove the Top Cabinet, Front Cabinet and DVD Block. (Refer to item 1 of the
DISASSEMBLY INSTRUCTIONS.)
Remove the screw 1 of the Deck Chassis and remove the Loading Motor. (Refer to Fig. 2)
Rotate the Pinch Roller Cam in the direction of the arrow by hand to slacken the Video Tape.
Rotate the Clutch Ass'y either derection to wind the Video Tape in the Cassette Case.
Repeat steps 3~4. Then take out the Video Cassette from the Deck Chassis. Be careful not to scratch the
tape.
1.
2.
3.
4.
5.
Main Cam
Clutch Ass'y
Main Chassis (Front Side)
Loading Motor
Capstan DD Unit
Pinch Roller Cam
Screw 1
1.
2.
3.
Remove the Top and Front Cabinet. (Refer to item 1 of the DISASSEMBLY INSTRUCTIONS.)
Rotate the Main Gear in the direction of the arrow by hand.
(Refer to Fig. 1)
Manually open the Tray.
DISC REMOVAL METHOD AT NO POWER SUPPLY
Fig. 1
DVD DeckMain Gear
