6. Slide your fingernail or a thin object under the cover and lift it off.

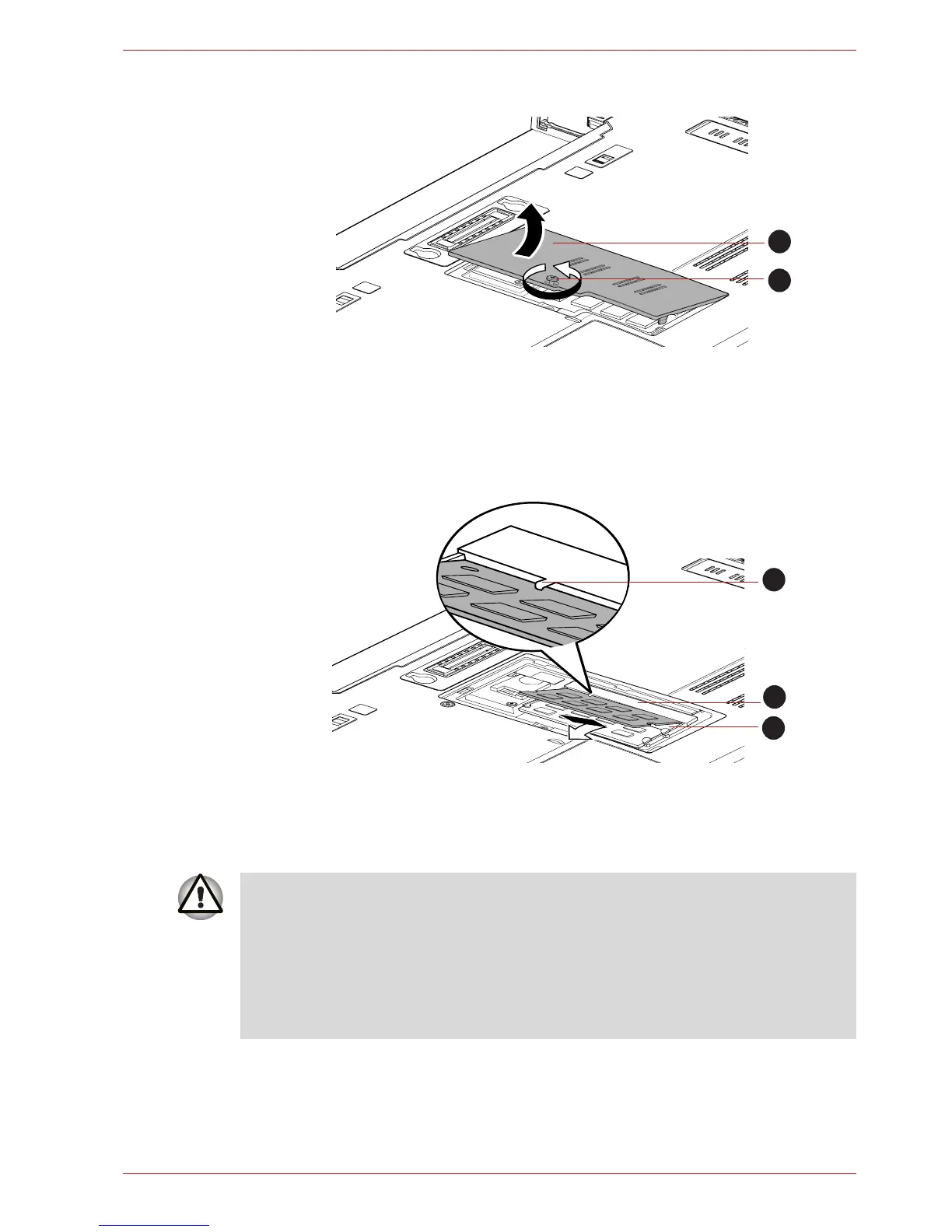

Figure 3-10 Removing the memory module cover
7. Align the notch of the memory module with that of the memory slot and
gently insert the module into the slot at about a 45 degree angle before
holding it down until the latches on either side snap into place.
Figure 3-11 Seating the memory module
1. Memory module cover
2. Screw
1. Notch
3. Slot B
2. Slot A
1
2
1
2
3
■ Never allow metal objects, such as screws, staples and paper clips, to
enter the computer. Foreign metal objects can create a short circuit,
which can cause computer damage and fire, possibly resulting in
serious injury.
■ Do not touch the connectors on the memory module or on the
computer. Debris on the connectors may cause memory access
problems.
