4-12 User’s Manual
Operating Basics
Changing Ultra Slim Bay modules
This section explains how to change modules in the Ultra Slim Bay. The
illustrations show replacement of the optical media drive with the Ultra Slim
Bay HDD adaptor. Therefore, the text refers to those modules. However,
the procedures are the same for any of the modules: DVD-ROM&CD-R/
RW drive, DVD Super Multi drive and HDD adaptor.
Removing a module
Remove the optical media drive as described below.
1. You can confirm that the disks are not operating with indicators. If all
indicators are off, it means that no disks are operating currently.
2. Turn the computer upside down.
3. Remove the screw near the icon securing the Ultra Slim Bay.
4. Make sure the screw in the Ultra Slim Bay lock screw is set in the hole
for the unlock position.
5. Slide the Ultra Slim Bay latch to the unlock position.
6. Grasp the optical media drive and slide it out.

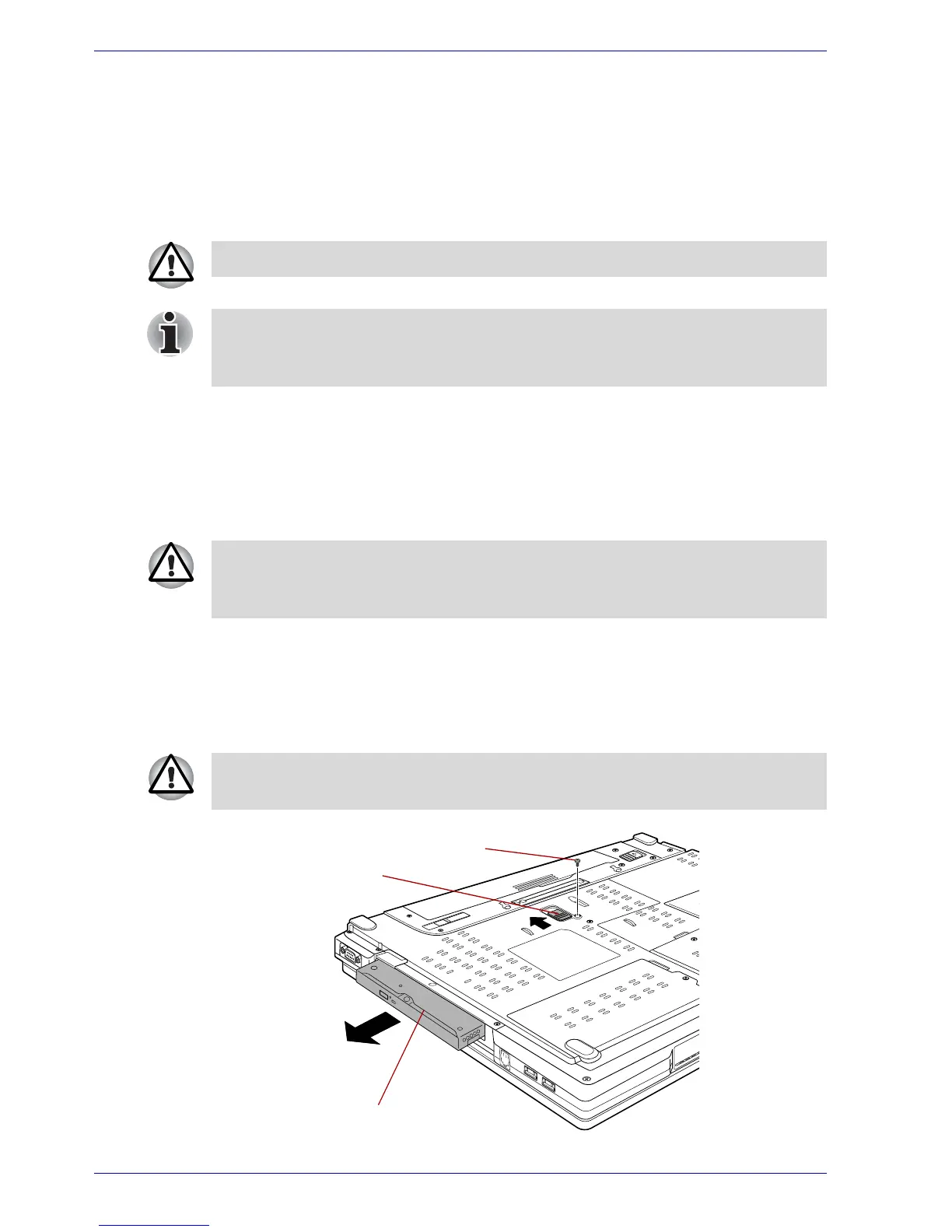

Figure 4-4 Removing the optical media drive
To avoid injury, do not put your hand into the Ultra Slim Bay slot.
The TOSHIBA Mobile Extension is preinstalled to support hot swapping
under Windows. Refer to Chapter 1, Introduction for information on using
this utility to change modules while the computer’s power is on.
Wait for all disk indicators to go out before you turn over the computer and
do not lay the computer down gently. Shock can damage the HDD or other
components.
The optical media drive and other Ultra Slim Bay modules can become hot
with use. Be careful when removing the module.
Lock screw
Optical media drive
Ultra Slim Bay latch

Toshiba Tecra S3 Specifications

General

Processor cache	2 MB
Processor frequency	2.26 GHz
Processor cache type	L2
Processor front side bus	533 MHz
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	100 GB
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	2 x 0.5 GB
Maximum resolution	2048 x 1536 pixels
Discrete graphics card model	NVIDIA GeForce Go 6600
Maximum graphics card memory	0.128 GB
Display diagonal	15 \
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3
Motherboard chipset	Intel® 915PM Express
CD-R write speed	24 x
DVD+R read speed	8 x
DVD+R write speed	4 x
DVD-RW write speed	2 x
DVD+R Double Layer write speed	2.4 x
Supported audio standards	MIDI
Number of built-in speakers	2
Front camera	No
Modem speed	56 Kbit/s
Wireless technology	Bluetooth
Disc types supported	CD-R, CD-ROM, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-ROM, DVD-RW
Networking type	802.11b/g
Networking features	10/100/1000 Base-TX
Bundled software	- Microsoft Office OneNote 2003; - Sonic Record Now!; - InterVideo WinDVD; - Norton Internet Security 2005 (incl. 90 dagen gratis Internet-updates); - Toshiba RAID software; - Toshiba Management Console; - ConfigFree.
Operating system installed	Windows XP Professional
TV-out type	S-Video
Charging port type	DC-in jack
PS/2 ports quantity	0
USB 2.0 ports quantity	3
Parallel ports quantity	1
CardBus PCMCIA slot type	Type II
Pointing device	Touchpad + Accupoint II
Keyboard number of keys	86
Certification	S.M.A.R.T.
External video modes refresh rate (max)	100 Hz
External video modes non-interlaced resolution with max. refresh rate	1600 x 1200 pixels
AC adapter input voltage	100/240 V

Weight and Dimensions

Depth	280 mm
Width	338 mm
Height	29.7 mm
Weight	2850 g
