Toshiba Tecra S3 User Manual

User’s Manual 4-13
Operating Basics
Inserting a module
Insert the Ultra Slim Bay HDD adaptor as described below.
1. Insert the Ultra Slim Bay HDD adaptor in the computer as shown below
and press until the ejector clicks.
2. If you want to lock the Ultra Slim Bay HDD adaptor, set the Ultra Slim
Bay lock screw in the hole for the lock position (➁). The lock screw is
inserted in the unlock position (➀) at the time of purchasing.

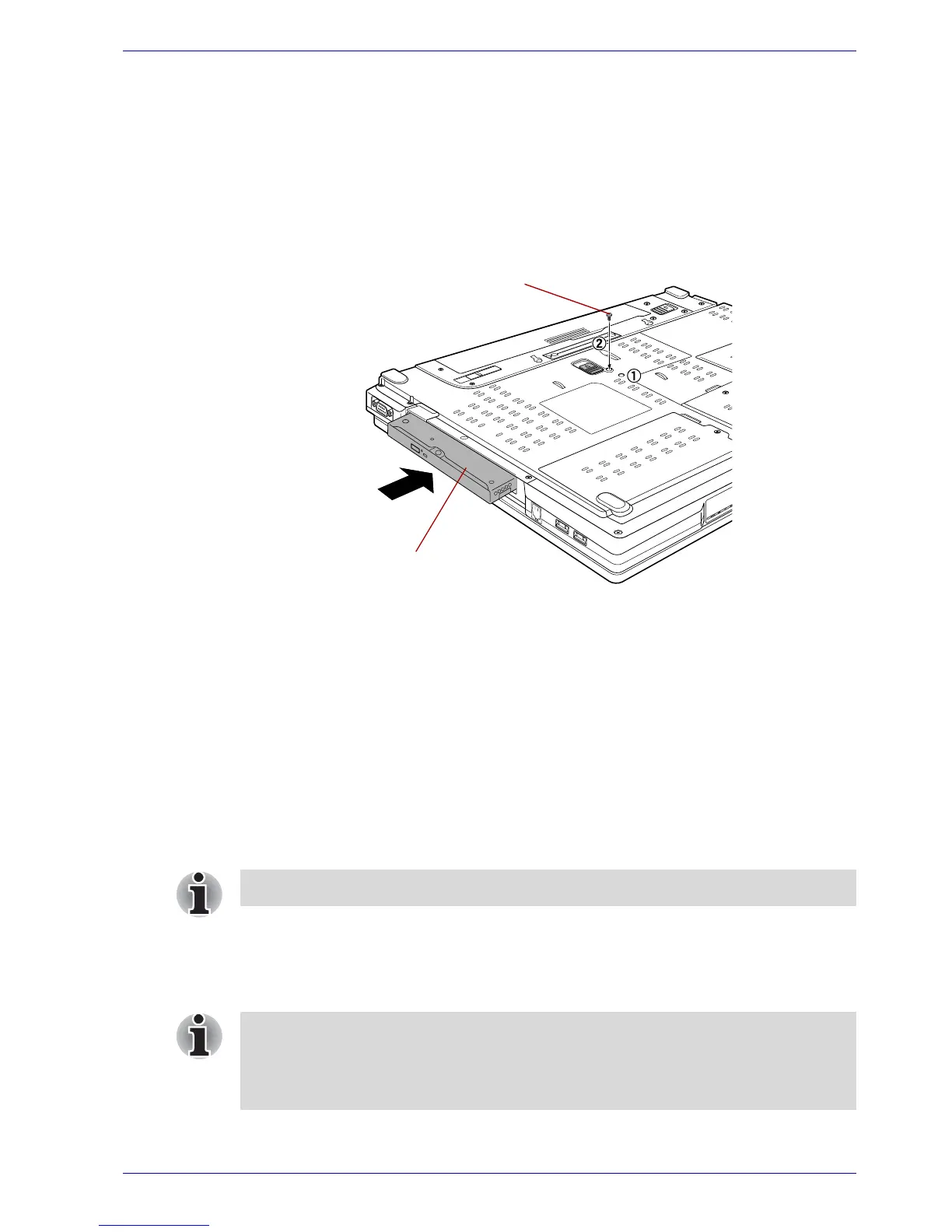

Figure 4-5 Inserting the Ultra Slim Bay HDD adaptor
Using optical media drives
The text and illustrations in this section refer primarily to the optical media
drive. However, operation is the same for other optical drive in the Ultra
Slim Bay. The full-size drive provides high-performance execution of CD/
DVD-ROM-based programs. You can run either 12 cm (4.72") or 8 cm
(3.15") CD/DVDs without an adaptor. An ATAPI interface controller is used
for CD/DVD-ROM operation. When the computer is accessing a CD/DVD-
ROM, an indicator on the drive glows and the Ultra Slim Bay indicator
glows.
If you have a DVD-ROM&CD-R/RW drive, refer also to the Writing CDs on
DVD-ROM&CD-R/RW drive section for precautions on writing to CDs.
If you have a DVD Super Multi drive, refer also to the Writing CD/DVDs on
DVD Super Multi drive section for precautions on writing to CDs/DVDs.
Ultra Slim Bay HDD adaptor
Lock screw
Use the WinDVD application to view DVD-Video discs.
When the power of the optical media drive is off, pressing the Fn + Tab
keys will turn the power of the optical media drive on. Furthermore, it is
possible to set it to turn the power of the optical media drive on and eject
the tray at the same time.

Toshiba Tecra S3 Specifications

General

Processor cache	2 MB
Processor frequency	2.26 GHz
Processor cache type	L2
Processor front side bus	533 MHz
HDD interface	SATA
Optical drive type	DVD Super Multi DL
Card reader integrated	Yes
Total storage capacity	100 GB
Internal memory	1 GB
Internal memory type	DDR2-SDRAM
Maximum internal memory	2 GB
Memory layout (slots x size)	2 x 0.5 GB
Maximum resolution	2048 x 1536 pixels
Discrete graphics card model	NVIDIA GeForce Go 6600
Maximum graphics card memory	0.128 GB
Display diagonal	15 \
Display resolution	1400 x 1050 pixels
Native aspect ratio	4:3
Motherboard chipset	Intel® 915PM Express
CD-R write speed	24 x
DVD+R read speed	8 x
DVD+R write speed	4 x
DVD-RW write speed	2 x
DVD+R Double Layer write speed	2.4 x
Supported audio standards	MIDI
Number of built-in speakers	2
Front camera	No
Modem speed	56 Kbit/s
Wireless technology	Bluetooth
Disc types supported	CD-R, CD-ROM, CD-RW, DVD+R, DVD+RW, DVD-R, DVD-RAM, DVD-ROM, DVD-RW
Networking type	802.11b/g
Networking features	10/100/1000 Base-TX
Bundled software	- Microsoft Office OneNote 2003; - Sonic Record Now!; - InterVideo WinDVD; - Norton Internet Security 2005 (incl. 90 dagen gratis Internet-updates); - Toshiba RAID software; - Toshiba Management Console; - ConfigFree.
Operating system installed	Windows XP Professional
TV-out type	S-Video
Charging port type	DC-in jack
PS/2 ports quantity	0
USB 2.0 ports quantity	3
Parallel ports quantity	1
CardBus PCMCIA slot type	Type II
Pointing device	Touchpad + Accupoint II
Keyboard number of keys	86
Certification	S.M.A.R.T.
External video modes refresh rate (max)	100 Hz
External video modes non-interlaced resolution with max. refresh rate	1600 x 1200 pixels
AC adapter input voltage	100/240 V

Weight and Dimensions

Depth	280 mm
Width	338 mm
Height	29.7 mm
Weight	2850 g
