Toshiba TOSVERT VF-AS1 Function Manual

E6581288①
− 20 −
5. Programming examples
This chapter provides programming examples which control the inverter with the PLC.
Item Programming Example Refer to Page
5.1 Reading the inverter status
Reading the inverter status from the buffer
memory of the master station.
21
5.2 Setting the command mode Command mode from CC-Link is confirmed. 22
5.3 Setting the operation commands Commanding the forward rotation. 23
5.4 Setting the reference frequency Setting to 50.00Hz. 23
5.5 Setting the monitoring function Monitoring the output frequency. 24
5.6 Writing a parameter value
Setting the
f311 [Reverse-run prohibition
selection] to [
1 : Prohibit reverse run].
24
5.7 Reading a parameter value Read the parameter f311.25
5.8 Reading the alarm definitions Reading the inverter alarms 26
5.9 Inverter reset Resetting the inverter. 27

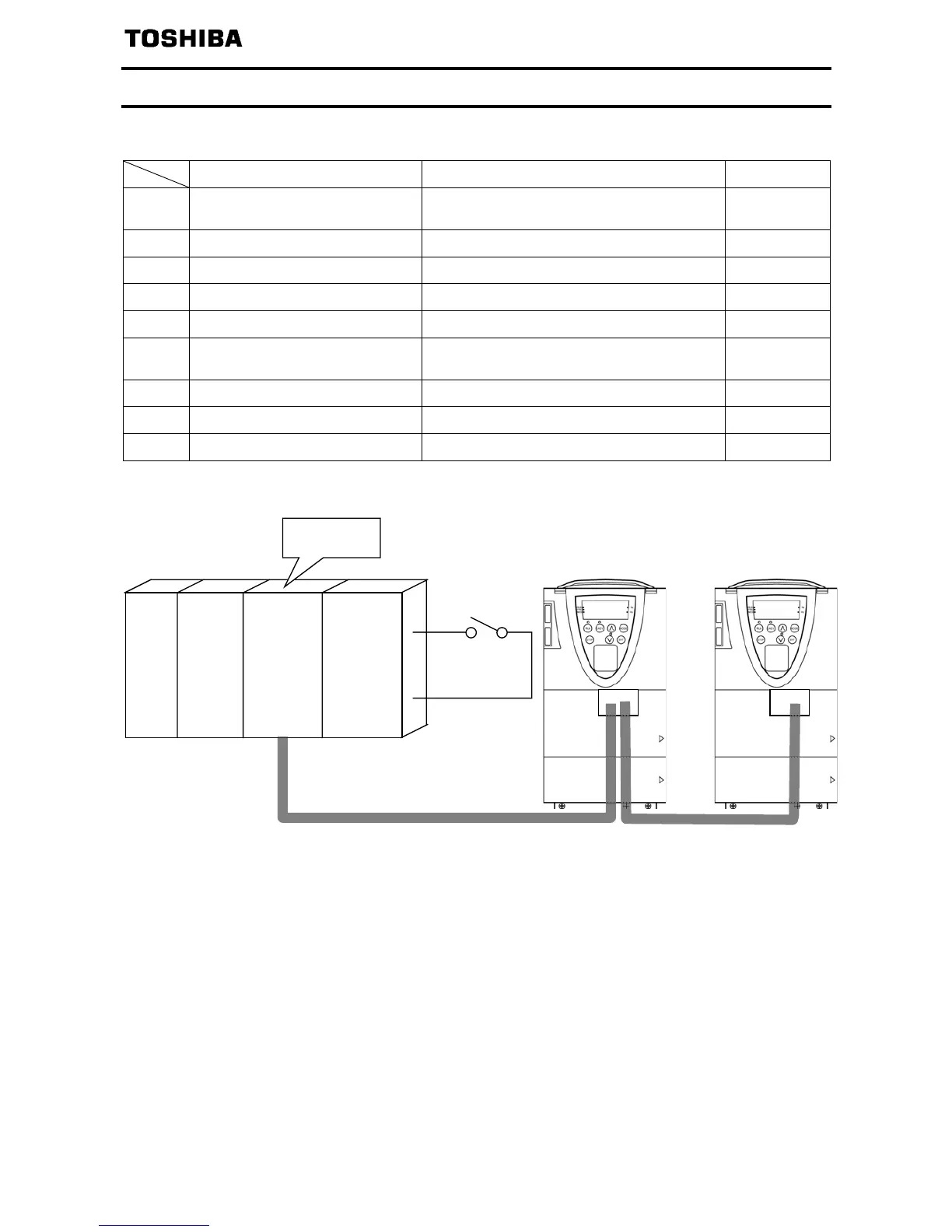

System configuration for programming example
Power A1SJ6Input
Unit 1BT11 module
CPU
(X/Y00 (X20
to 1F) to X2F)
Master unit
Station No.1
Inverter
Station No.2
Inverter
X0020
CC-Link dedicated cable
The example of CC-Link communication network composition
・CPU Mitsubishi Electric Corp. A1SJHCPU
・Master unit Mitsubishi Electric Corp. A1SJ61BT11
・Input module Mitsubishi Electric Corp. A1SX40
・CC-Link dedicated cable Kuramo Electric Corp. FANC-110SBH
・Inverter TOSHIBA TOSVERT VF-AS1 (2 units)
・CC-Link option TOSHIBA CCL001Z (2 units)
※As for master station, when use the Mitsubishi Electric An series, the recommended version is "LS" or later.
