E6581288
− 5 

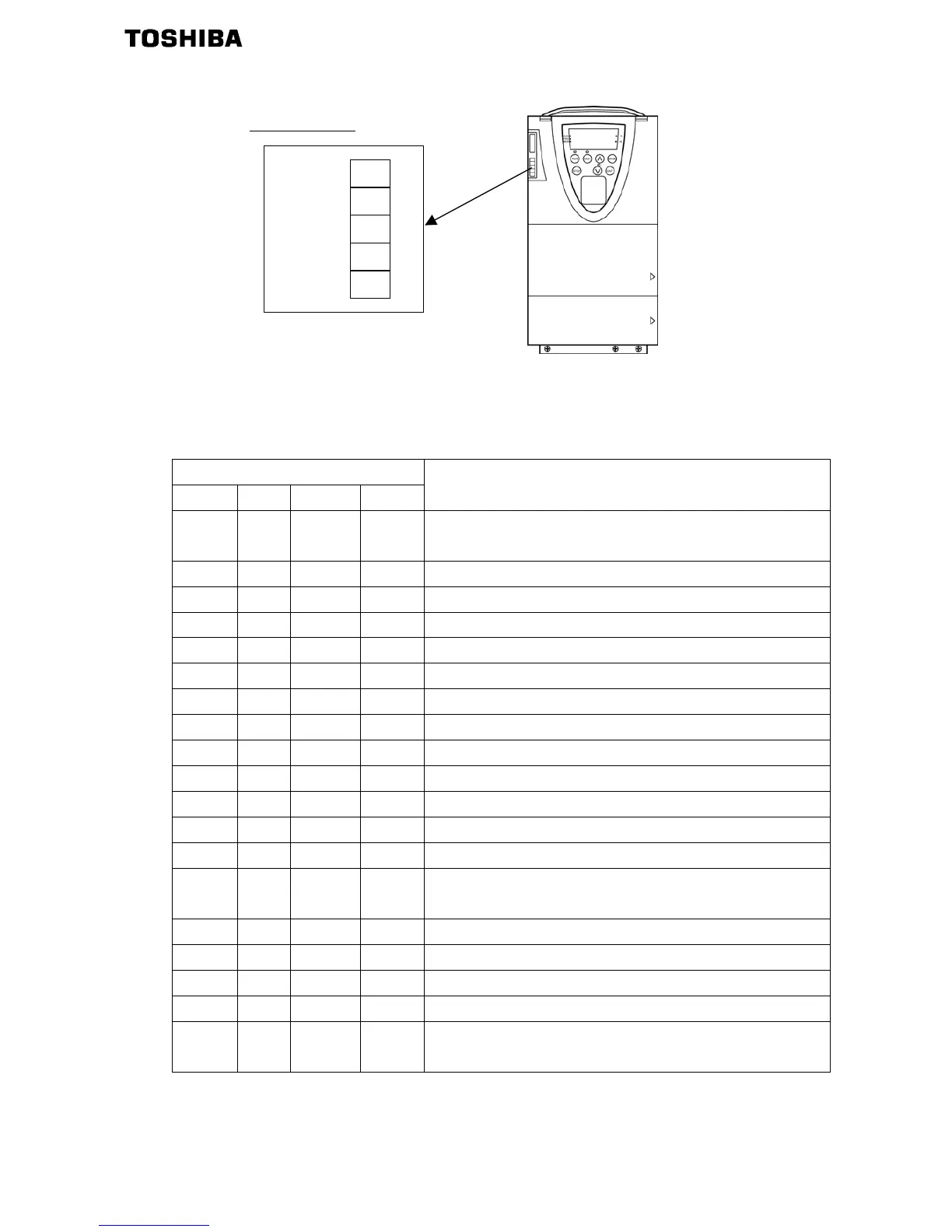

Behavior of LED
Status of LED
L.RUN SD RD L.ERR
Cause
●◎
Normal communication is made but CRC error has occurred
due to noise.
●◎ Normal communication
●◎ Hardware fault
●◎ Hardware fault
●○ Cannot answer due to CRC error of receive data.
●○ Data sent to the host station does not reach destination.
●○ Hardware fault
●○ Hardware fault
○◎ Polling response is made but refresh receive is in CRC error.
○◎ Hardware fault
○◎ Hardware fault
○◎ Hardware fault
○○ Data sent to the host station is in CRC error.
○○
There is no data sent to the host station, or data sent to the
host station cannot be received due to noise.
○○ Hardware fault
○○ Cannot receive data due to break in the cable, etc.
○○ or ○●Invalid baudrate or station number setting.
●◎ Baud rate or station number is changed during operation.
○○
WDT error occurrence (hardware fault), power off or supply
failure.
●:On ○:Off ◎:Flicker
