■Installing more than one unit in a cabinet
If you are installing two or more inverters in one cabinet, pay attention to the following.
• Inverters may be installed side by side with each other with no space left between them.
When installing inverters side by side, detach the caution label on the top surface of each
inverter and use them where the ambient temperature will not rise above 40°C.
• When using inverters where the ambient temperature will exceed 40°C, allow a space of 5 cm
or more between inverters and detach the caution label on the top surface of each inverter.
• Ensure a space of at least 20 cm on the top and bottom of the inverters.
• Install an air deflecting plate so that the heat rising up from the inverter on the bottom does not
affect the inverter on the top.

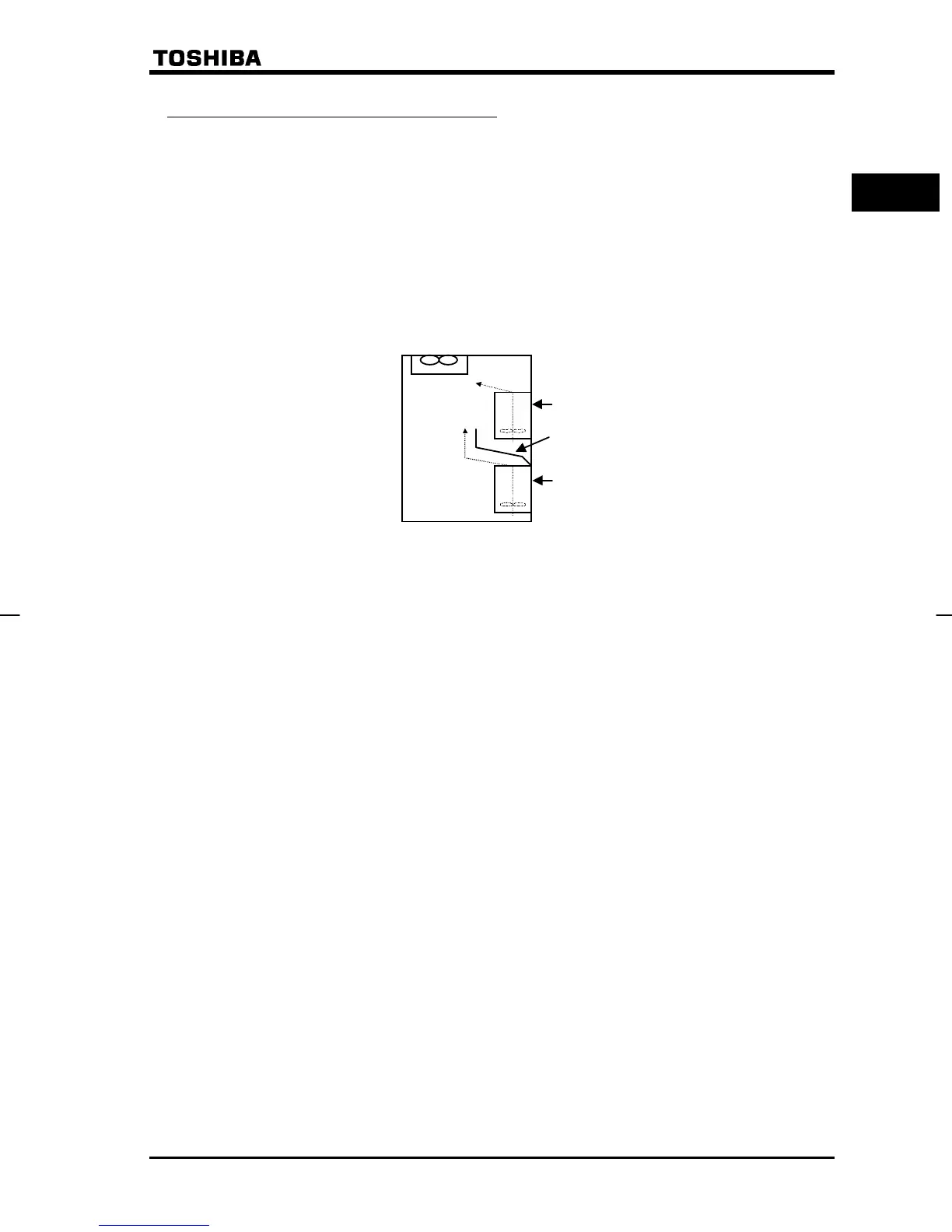

Ventilation fan
Inverter
Air deflecting
plate
Inverter
