7. Variety of operation
7.1 Setting the operation frequency

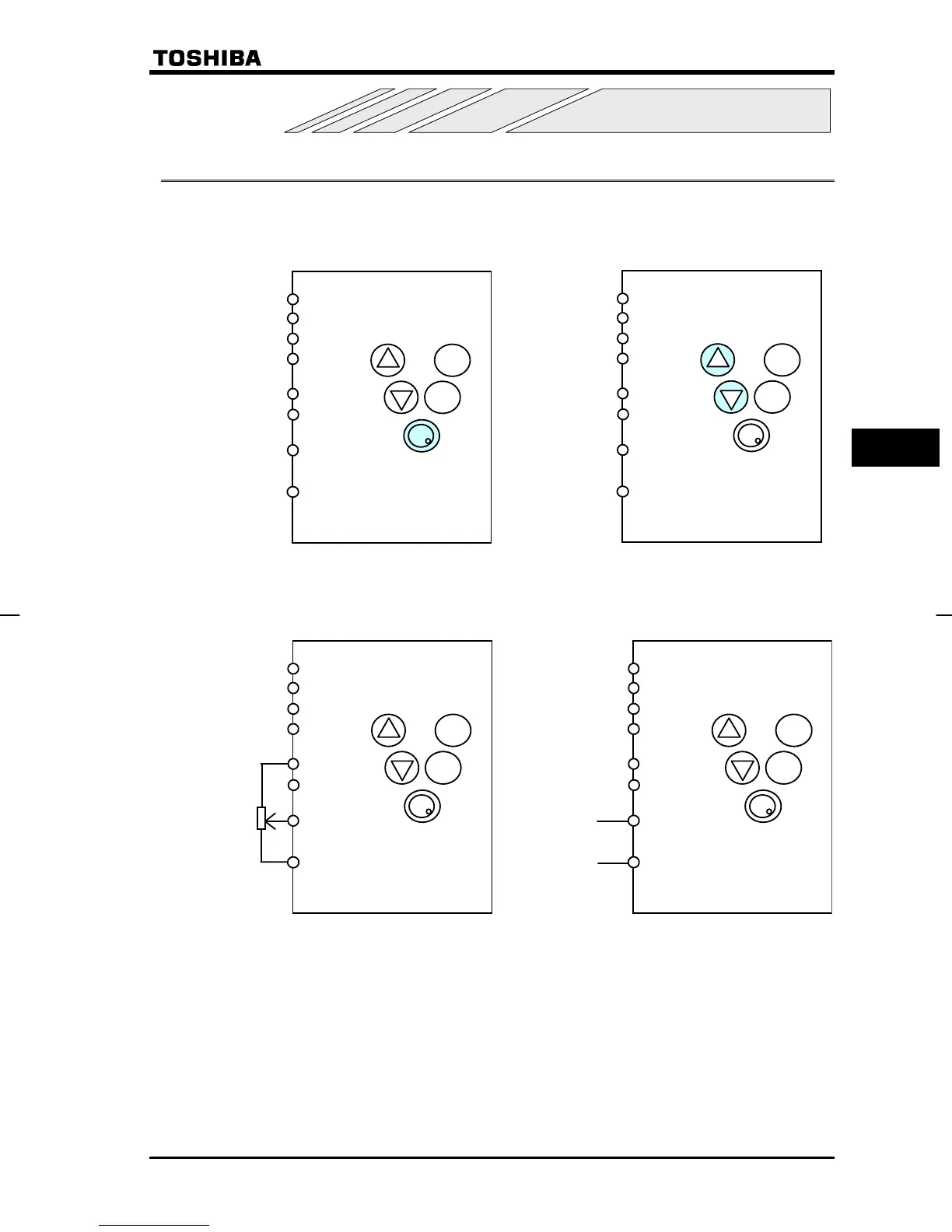

Applied operation can be performed by selecting the inverter frequency setting, using the basic
parameter HOQF (frequency setting mode selection).
(1) Internal potentiometer setting (2) Operation panel key setting
F
R
S1
S2
VI/S3
P15
P5
CC
RUN
STOP
F
R
S1
S2
VI/S3
P15
P5
CC
RUN
STOP
HOQF HOQF
Enter the number with the operation panel keys, then
press the ENTER key to confirm.
(3) External potentiometer setting (4) Input voltage setting (0 to 10Vdc)
F
R
S1
S2
VI/S3
P15
P5
CC
RUN
STOP
F
R
S1
S2
VI/S3
P15
P5
CC
RUN
STOP
Voltage signal
HOQF
H (Input voltage signal)
Use the parameters H to H for this
setting.
To us e P5, set H at 50% or so.
HOQF
H (Input voltage signal)
Use the parameters H to H for this
setting.
