Toshiba TOSVERT VF-nC1 User Manual

E6581090
B-6
2

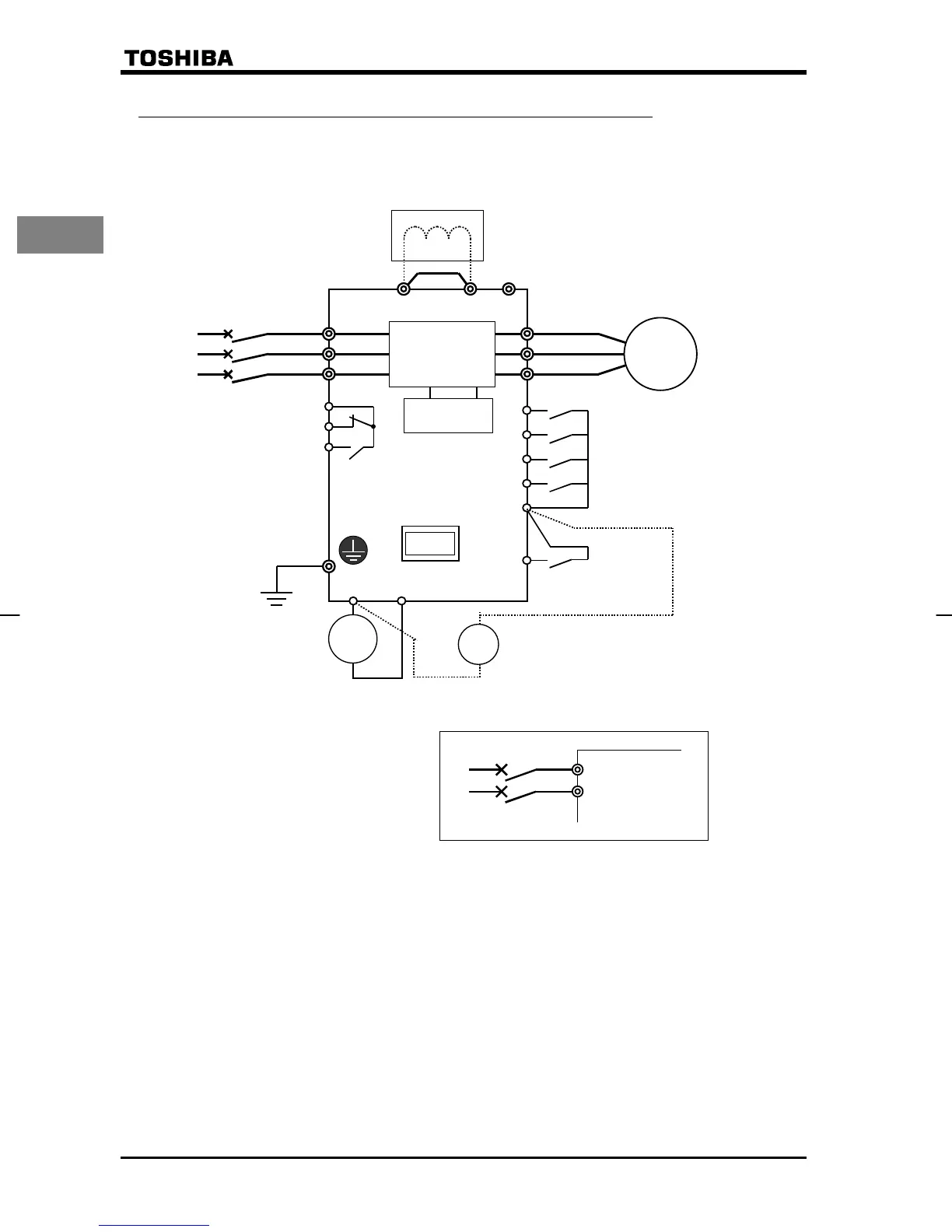

Main circuit
R/L1
S/L2
T/L3
P0 PA PC
DC reactor
(DCL: option)
U/T1
V/T2
W/T3
IM
VF-nC1
FLC
FLB
FLA
F
R
S1
S2
P15
FM/OUT
＊
2
CC
＋
－
Meter
Ry
Connector for
optional devices
Forward
Preset speed 2
Reverse
Preset speed 1
Common
Fault output signal
Frequency meter
(Ammeter)
Control circuit
＊1
VI/S3
*
2
*
3
MCCB
Preset
speed 3
＊4
＊5
1-phase series
Power
supply
R/L1
S/L2
1-phase series do not have T/L3 terminal.
■When using V1/S3 terminal as a logic input terminal (H : )
*1:Only European model has a built-in noise filter.
*2: The terminal can be switched between FM/OUT and VI/S3 by changing a
parameter.
*3: The terminal can also be used as an input terminal by changing a parameter.
*4: European models are not provided with PO terminal.
*5: 1-phase 100V models cannot be used with DC reactors.

Toshiba TOSVERT VF-nC1 Specifications

General

Brand	Toshiba
Model	TOSVERT VF-nC1
Category	Inverter
Language	English
