1) for Xboat730, please connect
CH1-CH6 to CCU of the boat.
2) for other boats, please connect CH1-CH8 to the
components like servo, switch, etc as requested by the boat.
The following figures instruct how to connect the BCS box of XR310 with your bait boat.
The system can control most 2 engines or 1 engine (with rudder) boat with proper settings.

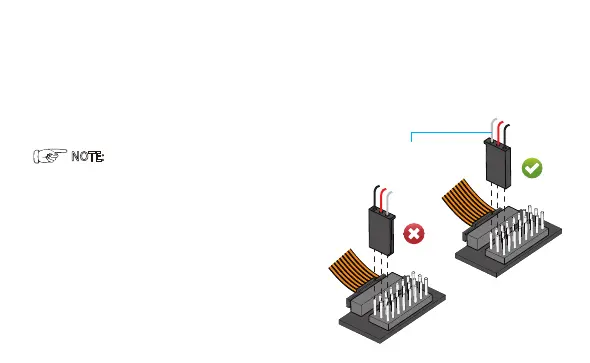

NOTE:
1) please insert the connector corectly
as shown in the right image, otherwise
the boat will not work normally.
2) this connector does't supply power
for external devices. If you devices
(such as servo or lights) need taking
power from the servo-cable, please
connect external power source to this
connector.
keep the white line
(signal line) inside
8
