Controller functions
RES-403 Page 23
9 Controller functions
See also section 8.6 "Wiring diagram (Standard)" on
page 15.

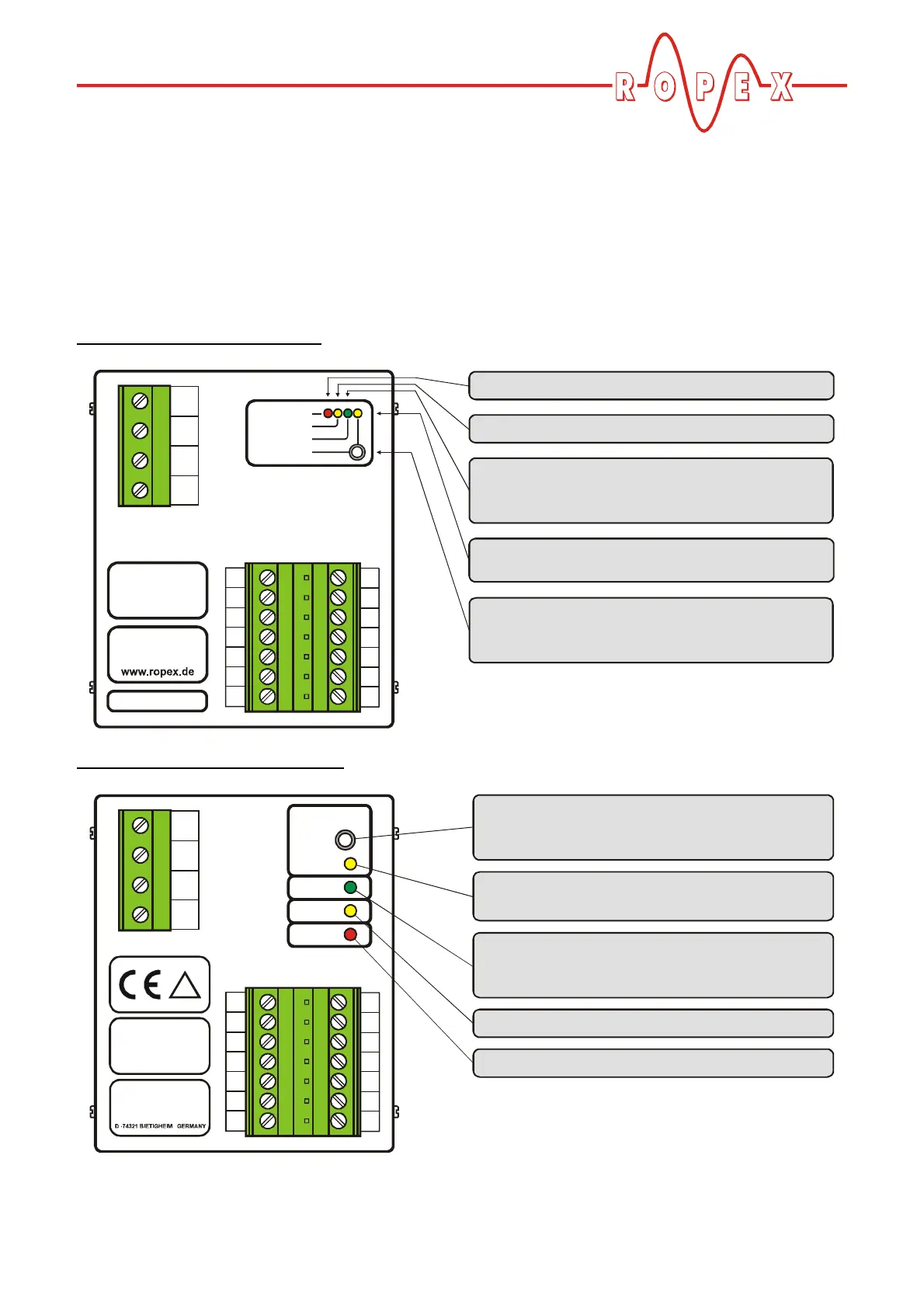

9.1 Indicators and controls
Manufactured as of October 2005
Manufactured up to September 2005
4
3
2
1
9
8
6
5
1
0
11
7
12 13 14 15 16 17 18
AUTOCAL
OUTPUT
HEAT
ALARM
RESISTRON
RES- 403
Made in Germany
ROPEX
Tel:+49(0)7142-7776-0
Temperature
controller
Button for manual activation of AUTOCAL
function (zero calibration). Do not press
unless heatsealing band is cold.
Yellow LED, remains lit for duration
of AUTOCAL process.
Green LED, indicates pulses in measure-
ment mode. In control mode, luminous
intensity is proportional to heating current.
Yellow LED, lit during heating phase.
Red LED, lights up or blinks to indicate ALARM.
4
3
2
1
9
8
6
5
1
0
11
7
12 13 14 15 16 17 18
Button for manual activation of AUTOCAL
function (zero calibration). Do not press
unless heatsealing band is cold.
Yellow LED, remains lit for duration
of AUTOCAL process.
Green LED, indicates pulses in measure-
ment mode. In control mode, luminous
intensity is proportional to heating current.
Yellow LED, lit during heating phase.
Red LED, lights up or blinks to indicate ALARM.
!
AUTOCAL
OUTPUT
HEAT
ALARM
ROPEX
INDUSTRIE - ELEKTRONIK
.
RESISTRON
µP-Controller
