Toto TLE05701A - Setting Maximum Outlet Temperature; Adjusting Outlet Water Temperature; Accessing and Cleaning Valve Components

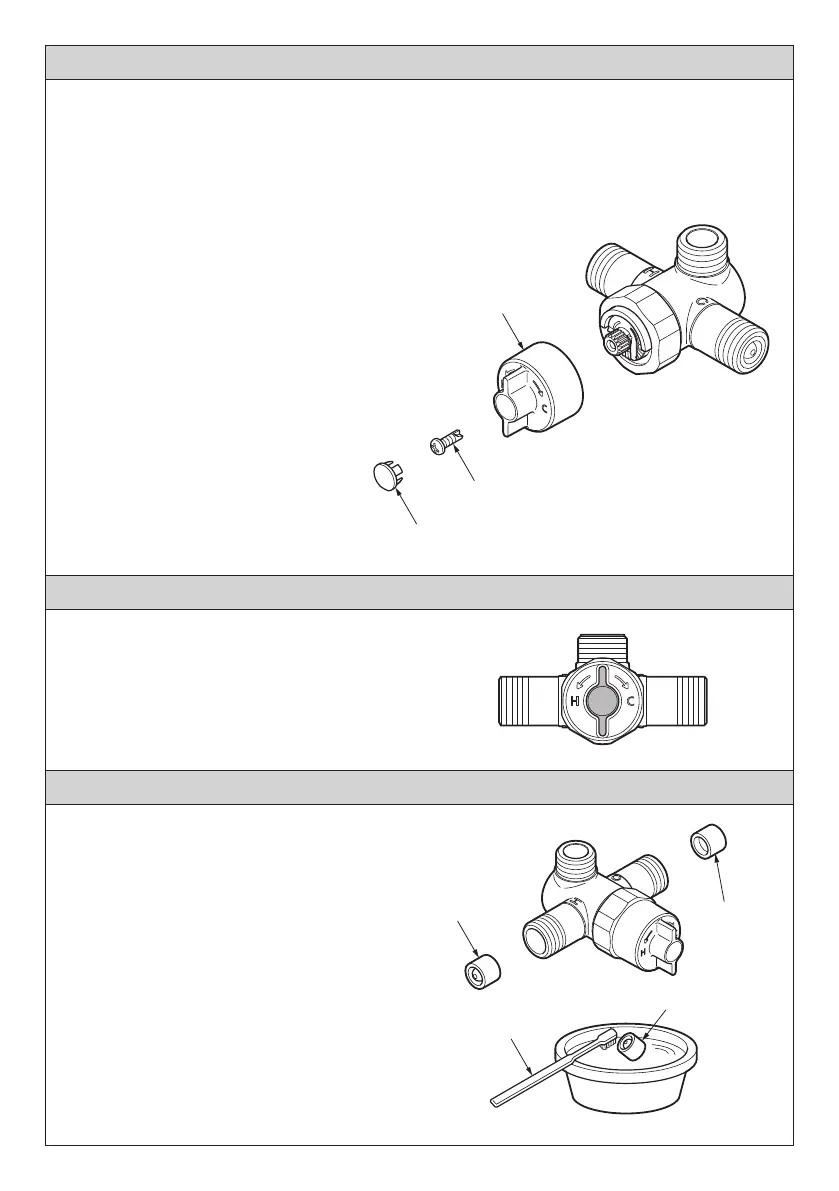

ADJUSTING MAXIMUM OUTLET TEMPERATURE
ADJUSTING OUTLET TEMPERATRURE
ACCESSING ANG CLEANING THE VALVE
1. Shut the water off at the stop valves.
2. To decrease temperature:
Remove screw and cap and pull handle slowly to remove.
Turn handle counter-clockwise one notch and reinstall onto cartridge.
To increase temperature:
Remove screw and pull handle
slowly to remove.
Turn handle clockwise one notch
and reinstall onto cartridge.
3. Secure handle with screw and put
cap.
4. Open the stop valve.
5. Check water temperature.
**Repeat steps 1-5 if necessary
1.
To decrease temprature: turn handle
clockwise.
2. To increase temprature: turn handle
counter-clockwise.
1. Shut the water off at the stop
valves.
2. Disconnect supply hoses.
3. Pull out the filter and clean it
with a brush.
4. Reinstall the clean filter and
connect water supply hoses.
5. Open the stop valves.
- 5 -
Handle
Screw
Cap
filter
filter
Brush
filter
INSTALLATION PROCEDURE
CAUTION: RISK OF PERSONAL INJURY.
This valve requires the maximum outlet temperature to be set/adjusted by the
installer.
The maximum outlet water temperature should never exceed 49 °C.
1. Turn off the main water supply.
2. Connect the hot water supply to the inlet marked "H" and the cold water supply
to the inlet marked "C".
- 4 -
Controller
Supply hose
(Not included in this product)
Supply hose
(Not included in this product)
Supply hose
(Not included in this product)
Stop valve
(Not included in this
product)
G1/2
G1/2
Stop valve
(Not included in this product)
Thermostatic mixing valve
