LU-16 LUBRICATION SYSTEM - Oil Cooler, Relief Valve and Check Valve

REMOVAL OF OIL COOLER, RELIEF VALVE

AND CHECK VALVE

(See page LU-15)

1. DRAIN ENGINE COOLANT (See page CO-4)

2. REMOVE OIL FILTER (Seepage LU-6)

3. REMOVE INJECTION PUMP

(See page FU-27)

4. REMOVE OIL DIPSTICK AND GUIDE

(a) Remove the two bolts, oil dipstick and guide.

(b) Remove the oil ring from the oil dipstick guide.

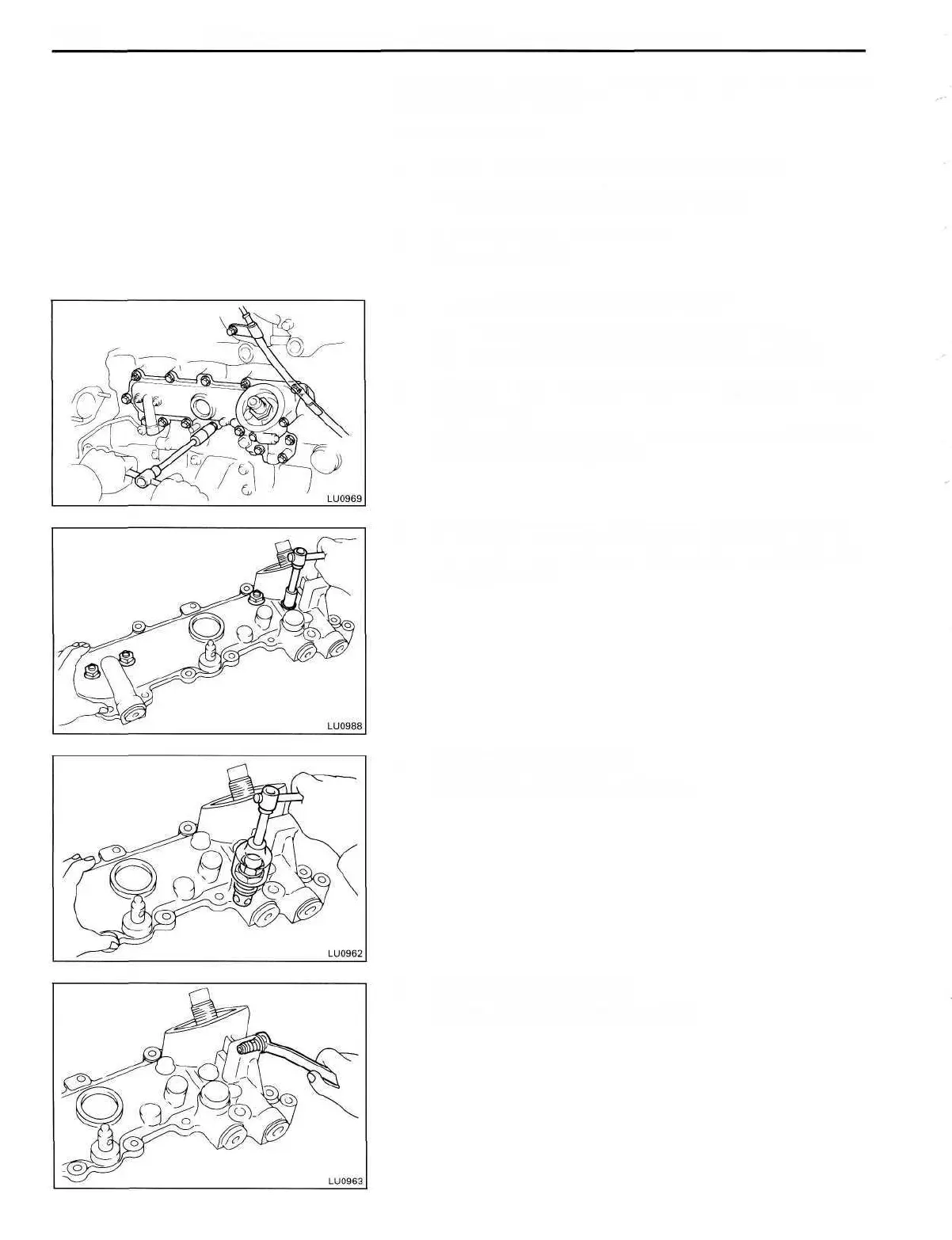

5. REMOVE OIL COOLER AND OIL COOLER COVER

ASSEMBLY

Remove the thirteen bolts, two nuts, oil cooler and oil

cooler assembly and gasket.

6. SEPARATE OIL COOLER AND OIL COOLER COVER

Remove the four nuts, oil cooler and two gaskets from the

oil cooler cover.

7. REMOVE RELIEF VALVE

Remove the relief valve and gasket.

8. REMOVE CHECK VALVE

Remove the check valve and gasket.
