STARTING SYSTEM - Starter ST-23

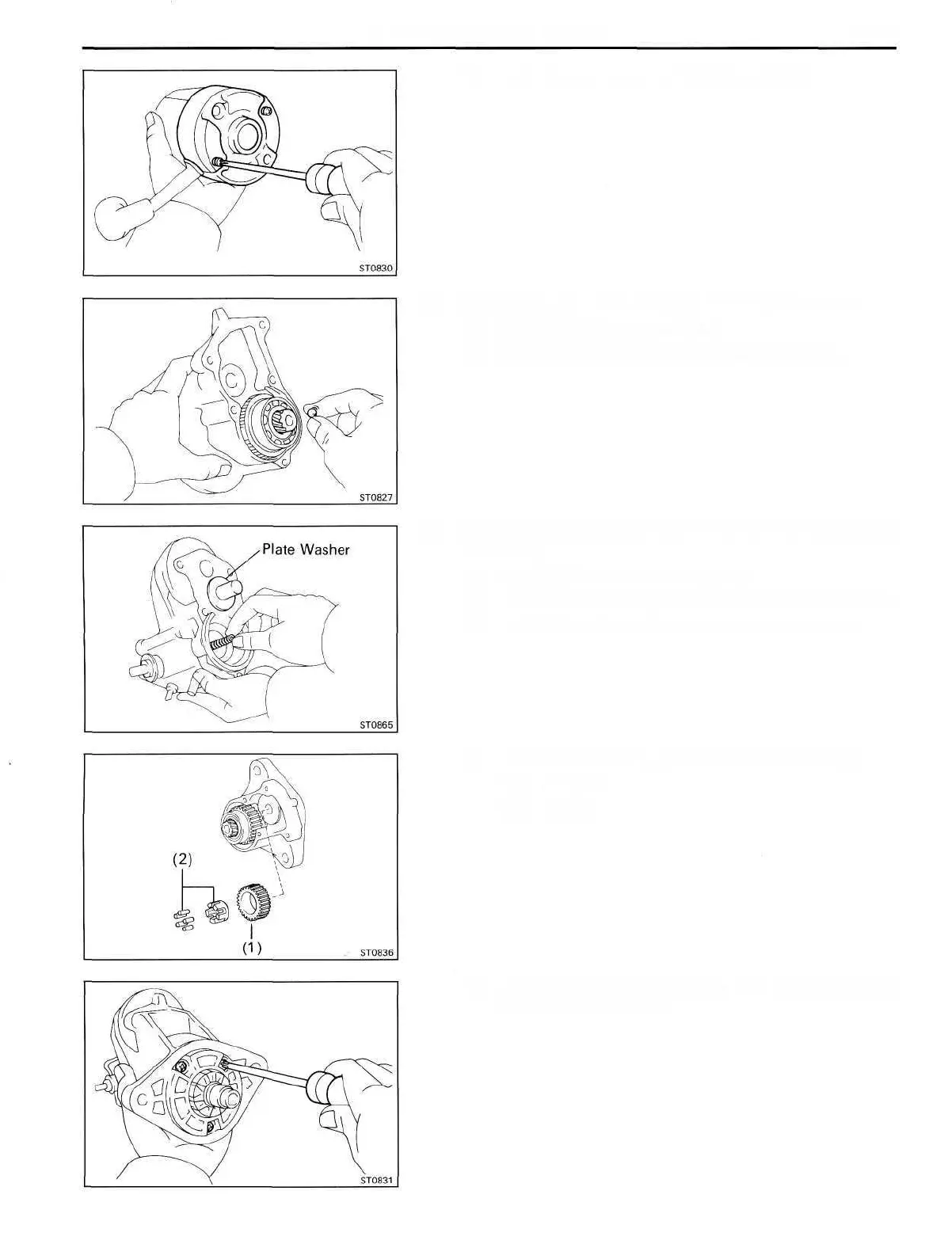

(c) Install the end cover with the two screws.
3. INSERT STEEL BALL INTO CLUTCH SHAFT HOLE
(a) Apply grease to the steel ball.
(b) Insert the steel ball into the clutch shaft hole.
4. INSTALL GEAR, CLUTCH ASSEMBLY AND STARTER
HOUSING
(a) Apply grease to the return spring.
(b) Insert the return spring into the magnetic switch hole.
(c) Install the plate washer to the magnetic switch.
(d) Install the following parts to the starter housing:
(1) Idler gear
(2) Bearing
(e) Assemble the starter housing and magnetic switch
with the three screws.

Toyota 1HZ Specifications

General

Fuel Type	Diesel
Maximum Power	96 kW (129 hp) at 3800 rpm
Firing Order	1-5-3-6-2-4
Aspiration	Naturally aspirated
Fuel System	Direct injection
Cooling System	Water-cooled
Displacement	4.2 L (4164 cc)
Maximum Torque	285 N·m (210 lb·ft) at 2200 rpm
Valvetrain	SOHC, 12 valves (2 per cylinder)
