G ELECTRICAL WIRING ROUTING

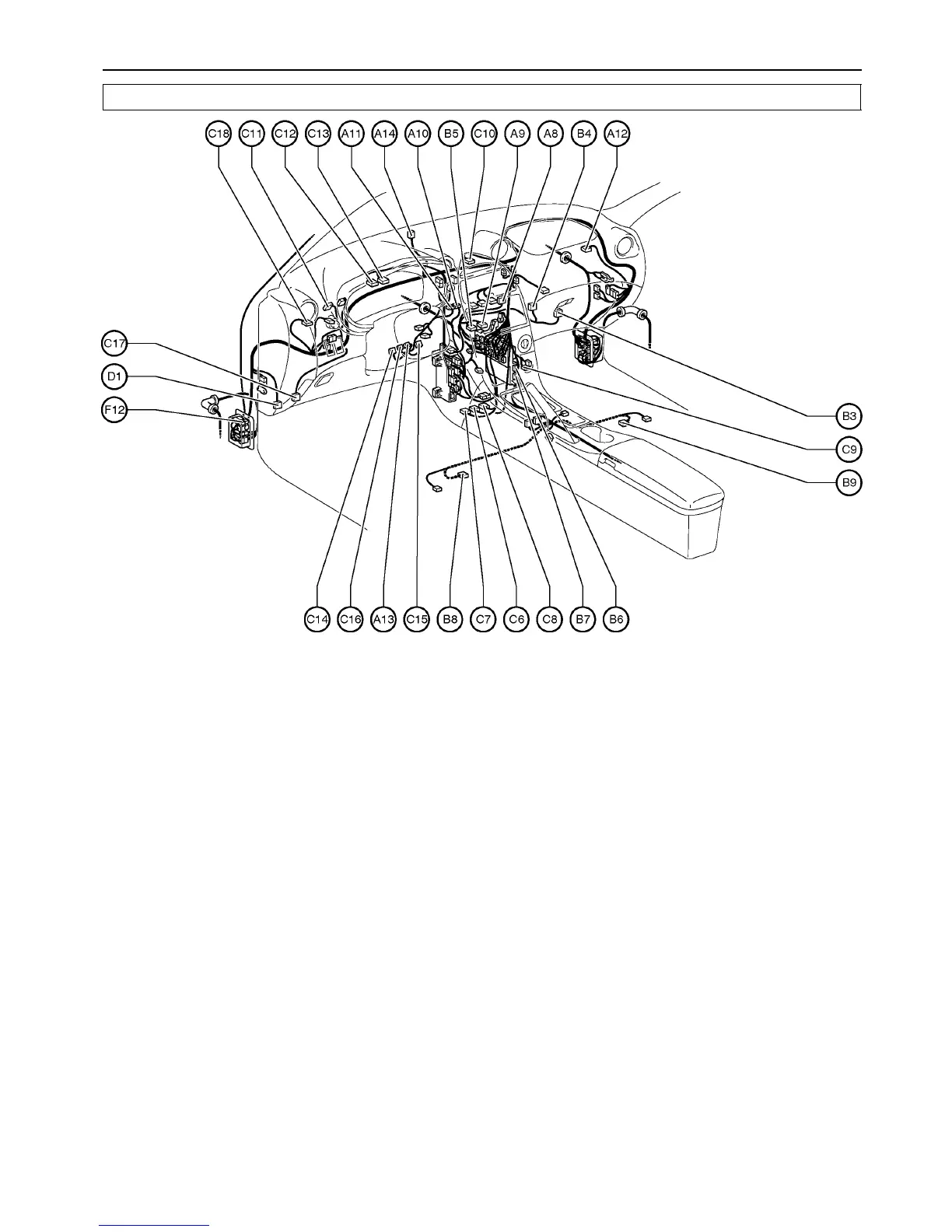

Position of Parts in Instrument Panel
A 8 A/C Evaporator Temp. Sensor
A 9 A/C SW
A10 ABS ECU
A 11 ABS ECU
A12 Airbag Squib (Front Passenger Airbag Assembly)
A13 Airbag Squib (Steering Wheel Pad)
A14 Automatic Light Control Sensor
B 3 Blower Motor
B 4 Blower Resistor
B 5 Blower SW
B 6 Body ECU
B 7 Body ECU
B 8 Buckle SW LH
B 9 Buckle SW RH
C 6 Center Airbag Sensor Assembly
C 7 Center Airbag Sensor Assembly
C 8 Center Airbag Sensor Assembly
C 9 Cigarette Lighter
C10 Clock
C 11 Clutch Start SW
C12 Combination Meter
C13 Combination Meter
C14 Combination SW
C15 Combination SW
C16 Combination SW
C17 Cruise Control Clutch SW
C18 Cruise Control ECU
D 1 Data Link Connector 3
F 12 Front Fog Light Relay
