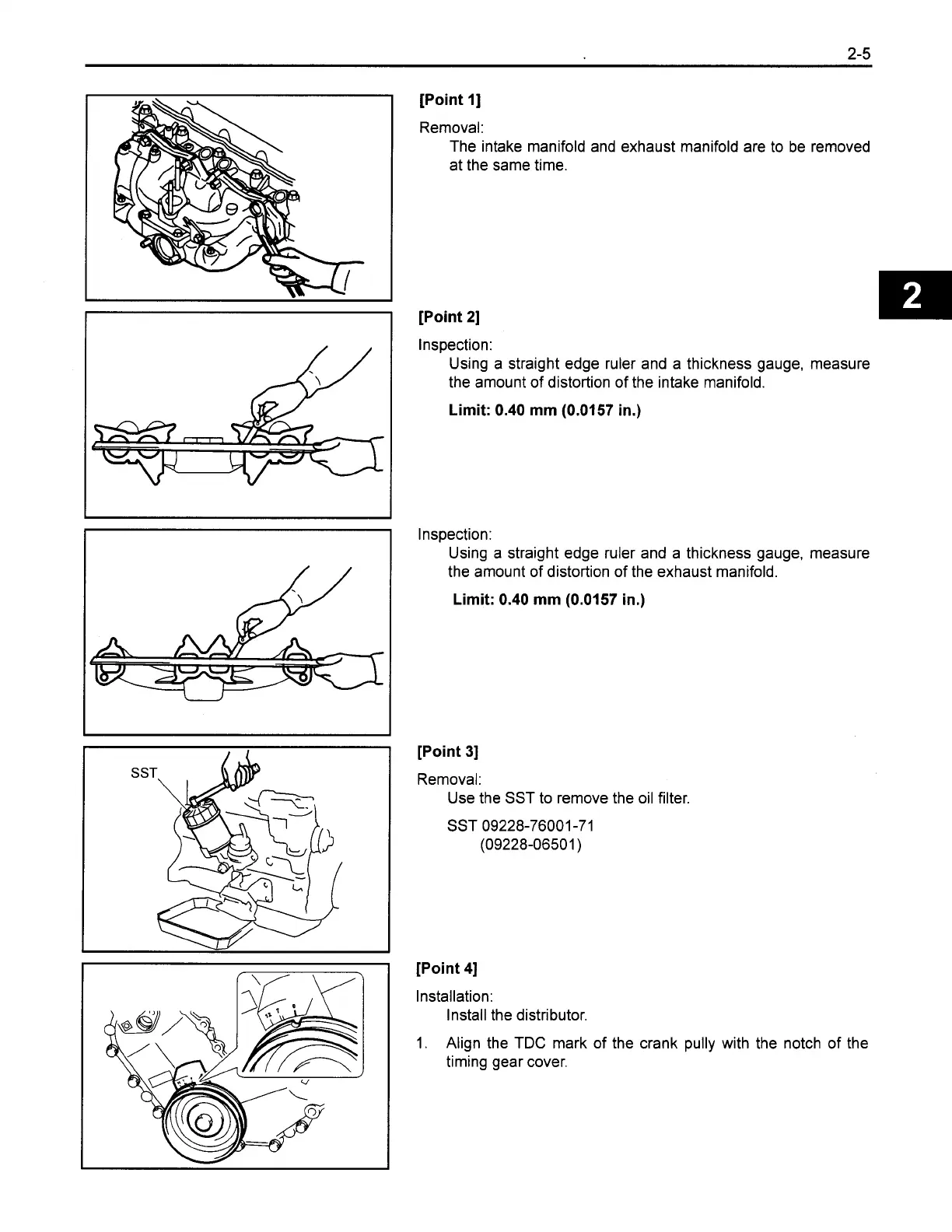

[Point I]
Removal:
The intake manifold and exhaust manifold are to be removed
at the same time.
[Point 21
Inspection:
Using a straight edge ruler and a thickness gauge, measure
the amount of distortion of the intake manifold.
Limit: 0.40 mm (0.0157 in.)
Inspection:
Using a straight edge ruler and a thickness gauge, measure
the amount of distortion of the exhaust manifold.
Limit: 0.40 mm (0.0157 in.)
[Point 31
Removal:
Use the SST to remove the oil filter
SST
09228-76001 -71
(09228-06501
)
[Point 41
Installation:
Install the distributor.
1. Align the TDC mark of the crank pully with the notch of the
timing gear cover.
4Y-E Repair
Section 1.1.2

Toyota 8FGU25 Specifications

General

Model	8FGU25
Lift Height	189 inches
Tire Type	Pneumatic
Transmission	Automatic
Engine Type	Internal Combustion
Load Capacity	5000 lbs
Fuel Type	Gasoline or LPG
Mast Type	2-Stage
Overall Width	45.3 in (1150 mm)
Wheelbase	63 in (1600 mm)
