Adjusting screw
W
Snap rin
Throttle valve
\
I
~hrottle valve shaft

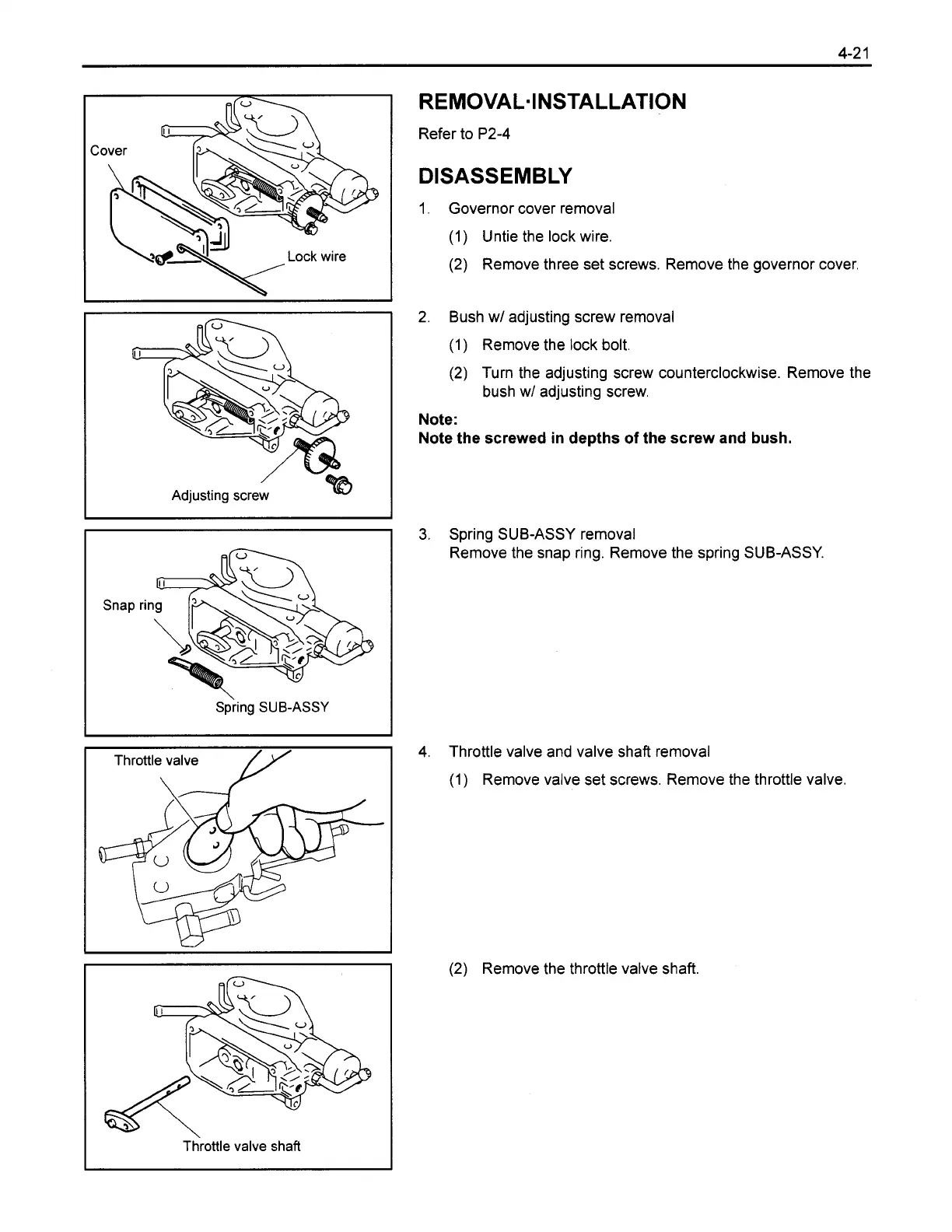

REMOVAL-INSTALLATION
Refer to P2-4
DISASSEMBLY
1.
Governor cover removal
(1) Untie the lock wire.
(2) Remove three set screws. Remove the governor cover.
2. Bush wl adjusting screw removal
(1) Remove the lock bolt.
(2) Turn the adjusting screw counterclockwise. Remove the
bush wl adjusting screw.
Note:
Note the screwed in depths
of
the screw and bush.
3.
Spring SUB-ASSY removal
Remove the snap ring. Remove the spring SUB-ASSY.
4. Throttle valve and valve shaft removal
(1) Remove valve set screws. Remove the throttle valve.
(2) Remove the throttle valve shaft.
4Y-E Repair
