Toyota Corolla E12-D - Right Hand Side Wiring and Connection

Corolla (E12-A + E12-D) TOYOTA GENUINE AUDIO
Corolla (RHD) - 27
05-04

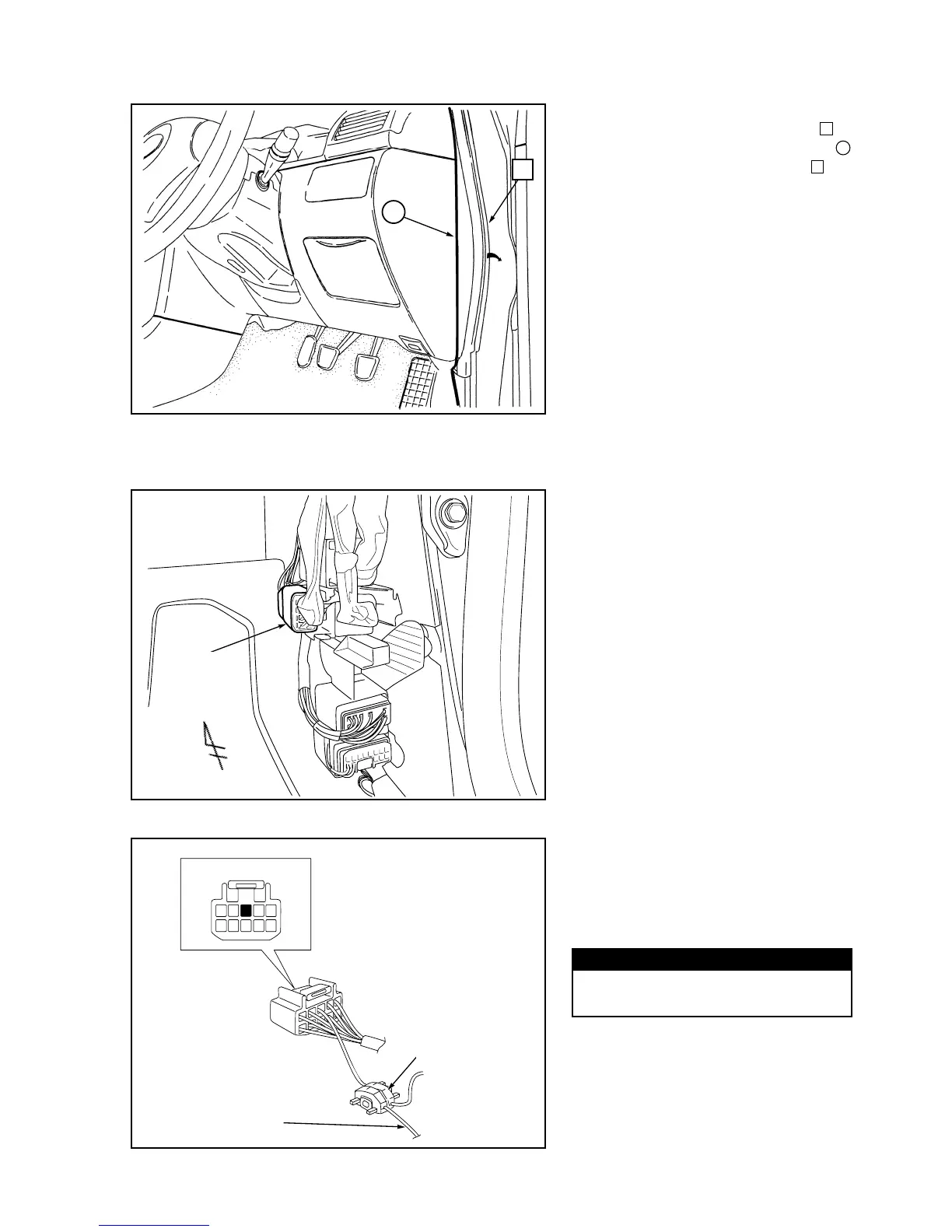

7.
a) Remove the rubber weather seal .
b) Route the tweeter wire harness
behind the rubber weather seal .
24
23
24
Fig. 52
REPEAT THE INSTRUCTIONS 1 TO 7 FOR THE LH-SIDE PARTS (FIG. 46 - 52)
23
24
RIGHT HAND SIDE
8. Locate and disconnect the 10P con-
nector in the kick panel area.
Fig. 53
10P
9. Turn the connector so that the wires
face you and the tab is on top.
Connect the red/black wire of the
tweeter to the third position from the
left side of the upper row (pos. 3).
Fig. 54
red/black
The shape of the 10P connector can
be slightly different.
NOTE
Splicing Connector
WIRE SIDE VIEW
